EBARA Submersible Sump/Drainage Pumps EPD / Optima

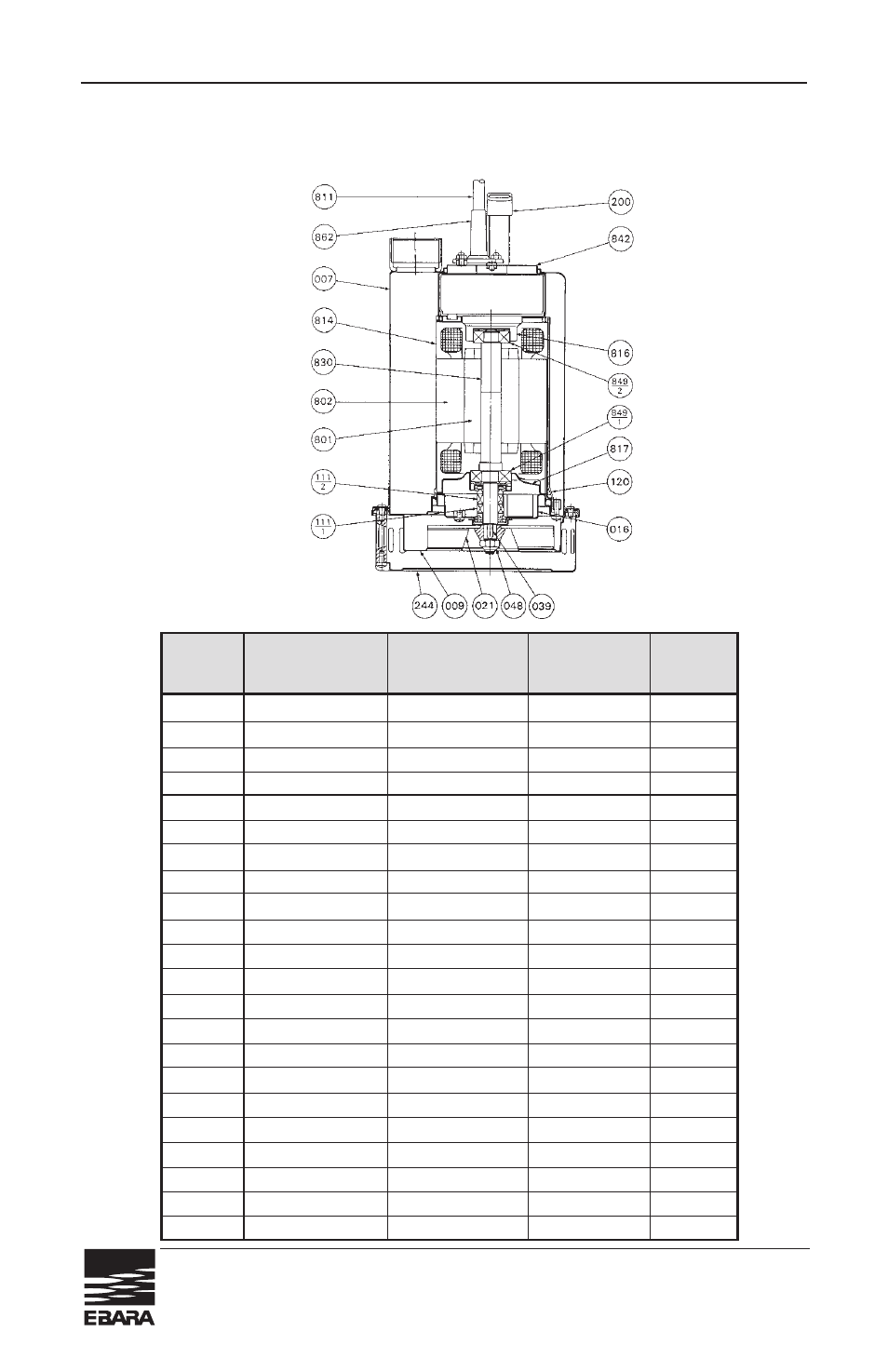

Sectional View – P707U / EPD-5MT2(4), 7MT2(4), 10MT2(4), 15MT2(4)
* Recommended spare parts
Part No. Part ASTM, AISI No. for
No. Name Material Code 1 Unit
007 Outer Casing 304 Stainless AISI 304 1
009 Inner Casing 304 Stainless AISI 304 1
016 Seal Cover 304 Stainless AISI 304 1
021 Impeller 304 Stainless AISI 304 1
039 Key 304 Stainless AISI 304 1
048 Impeller Nut 304 Stainless AISI 304 1 set
*111-1
Mechanical Seal — 1 set
*111-2 Mechanical Seal — 1 set
120 Connection Band 304 Stainless AISI 304
200 Lifting Hanger 304 Stainless AISI 304 1
244 Strainer 304 Stainless AISI 304 1
801 Rotor — 1
802 Stator — 1
811 Submersible Cable SOW-A/SO 1
814 Motor Frame 304 Stainless AISI 304 1
816 Bracket 304 Stainless AISI 304 1
817 Bracket 304 Stainless AISI 304 1
830 Shaft 303 Stainless AISI 303 1
842 Motor Cover 1
*849-1 Ball Bearing — 1
*849-2 Ball Bearing — 1
862 Cable Foot NBR 1
Manual Type Output 1 /
2
to 1 1 /
2
HP (Three Phase)
