EBARA Submersible Sump/Drainage Pumps EPD / Optima
10 1 /
2
" Min.
14" Min.
Bottom of
inlet pipe
Sump pump
Drill 1/8" relief hole 5" above pump
discharge
Discharge piping can be PVC or
ABS plastic with proper adapters, or
can be galv. steel
shut-off
gate valve
(optional)
Turn on level
Grounded type
115 volt receptacle
or approved junction
box min. height
above floor – 4 ft.
Turn-off level
Lifting handle
Mechanical float switch
*All equipment other than pump to be
supplied by others. Pump only supplied
by EBARA.
1 1 /
2
" check valve
with rubber sleeve
connectors for
1 1 /
4
" and 1 1 /
2
" pipe
Sump basin 18" to 24" dia.
plastic, fiberglass or concrete

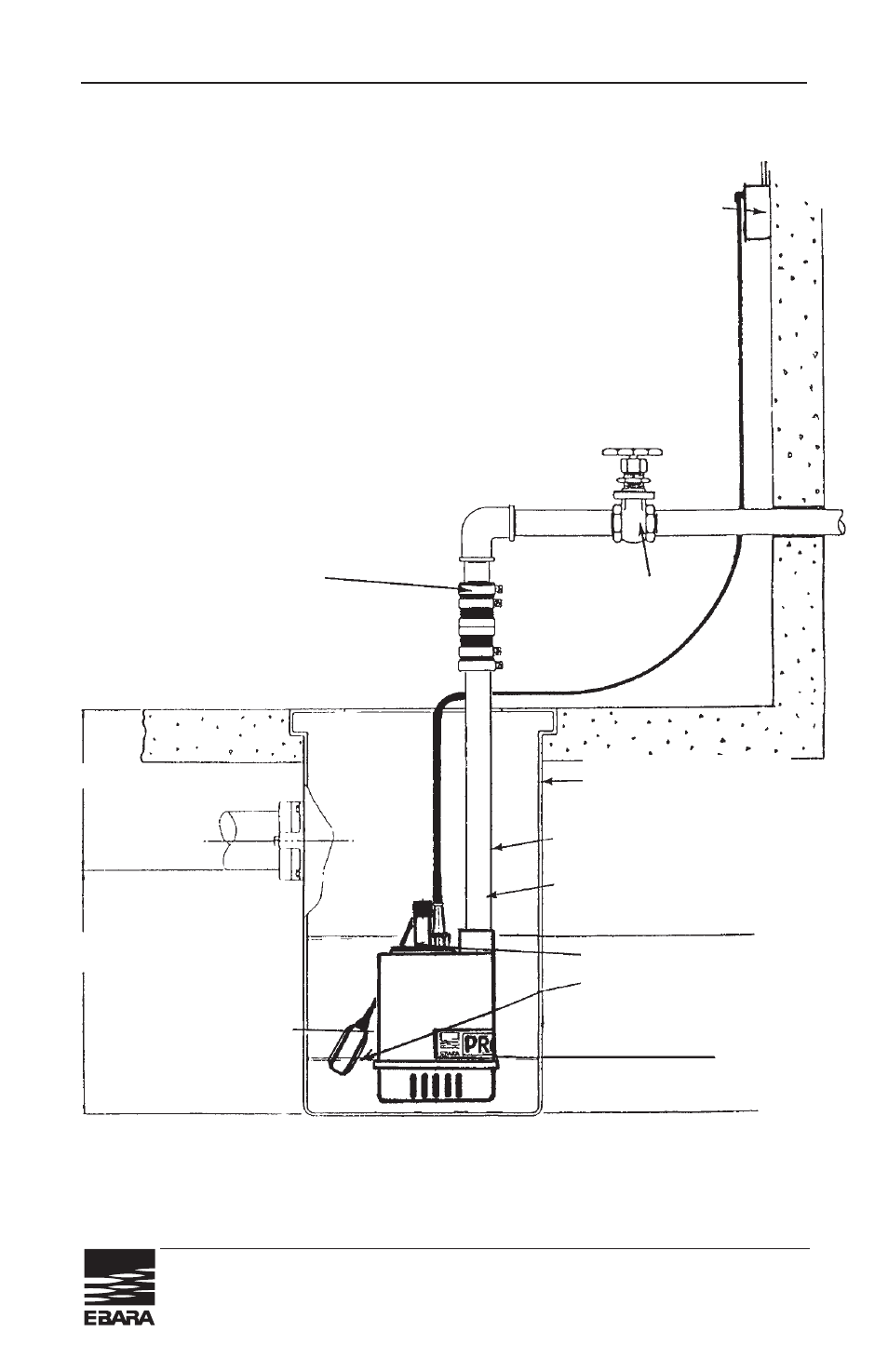

PRO Drainer Submersible (Typical) Installation Diagram
Note: Optima-3SS1 and EPD-3SS1 slimline automatic can operate in a 12'' diameter
basin or 8'' x 8'' square basin.
