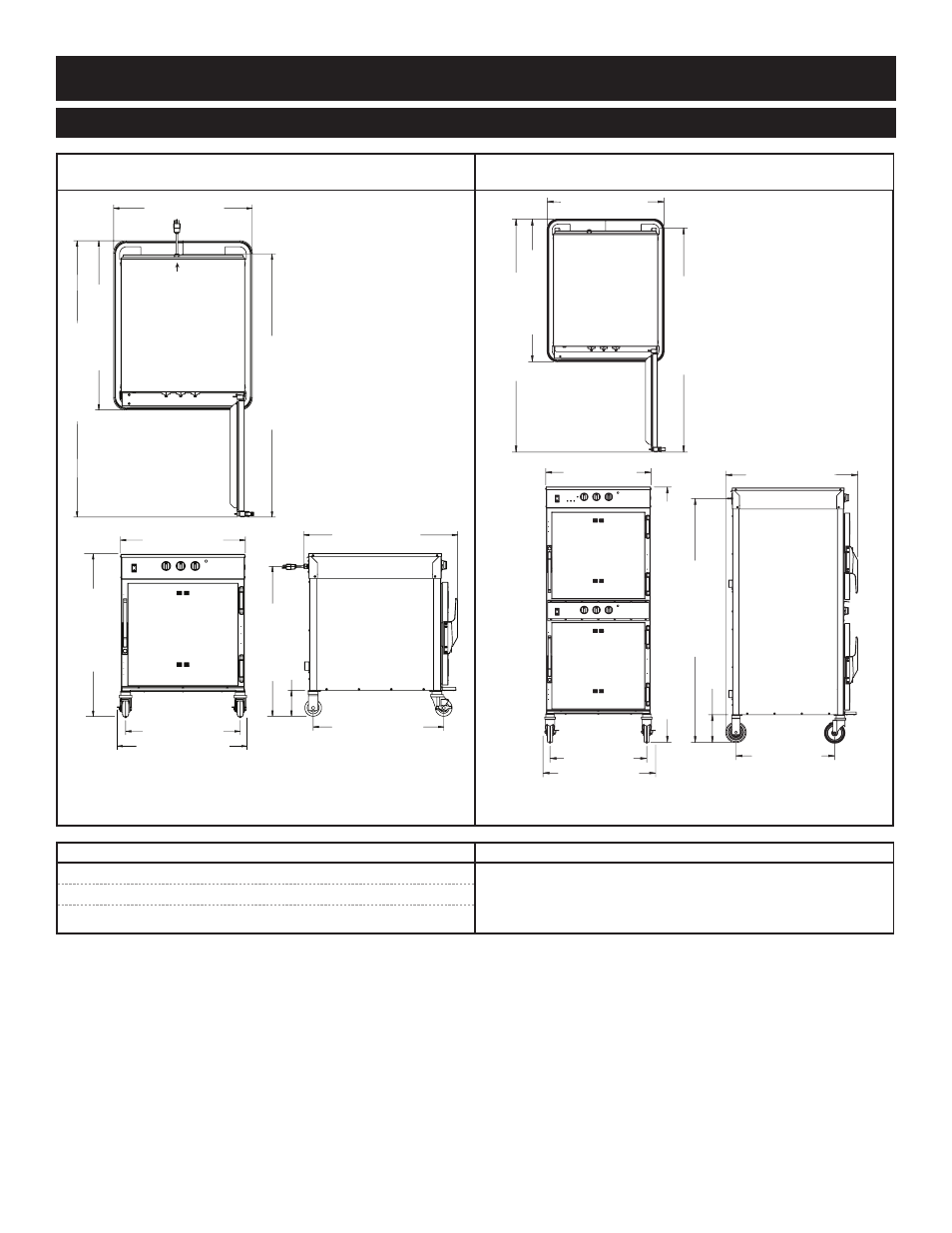

S I T E I N S T A L L A T I O N
I N S T A L L A T I O N
WEIGHT
MODEL NET WEIGHT SHIP WEIGHT
767-SK 197lb (89 kg) 225 lb (102 kg)
1767-SK 355 lb (161 kg) est . 450 lb (204 kg)
Electrical
Connection
Shown with
optional bumper
56-15/16" (1446mm)
28-5/8 " ( 726mm)
34-7/8" (886mm)
54-3/16" (1376mm)
25-3/4 " ( 654mm)
23-5/8 " ( 600mm)
26-15/16 " ( 683mm)
26-11/16" (676mm)
33-1/2" (851mm)
with 3-1/2" (89mm) caster
s
30-7/8" (784mm) 5-5/16" (134mm)
31-11/16 " ( 805mm)
*31-13/16" (808mm) - with optional 2-1/2" (64mm) casters
*35-1/4" (894mm) - with optional 5" (127mm) casters
*33-13/16" (858mm) - with optional 6" (152mm) legs
Shown with
optional bumper
56-15/16" (1446mm)
28-5/8" (726mm)
34-7/8" (886mm)
54-3/4" (1390mm)
25-3/4" (654mm)
23-5/8" (600mm) 24-1/8" (613mm)
26-11/16" (676mm)
6-13/16" (173mm)
32-1/4" (819mm)
59-5/8" (1513mm)
62-3/8" (1583mm) with 5" (127mm) caster
s
*60-11/16" (1540mm) - with optional 3-1/2" (89mm) casters
*62-1/8" (1577mm) - with optional 6" (152mm) legs
767-SK 1767-SK
CAPACITY PER COMPARTMENT
100 lb (45 kg)
maximum
volume maximum : 53 quarts (67 liters )
