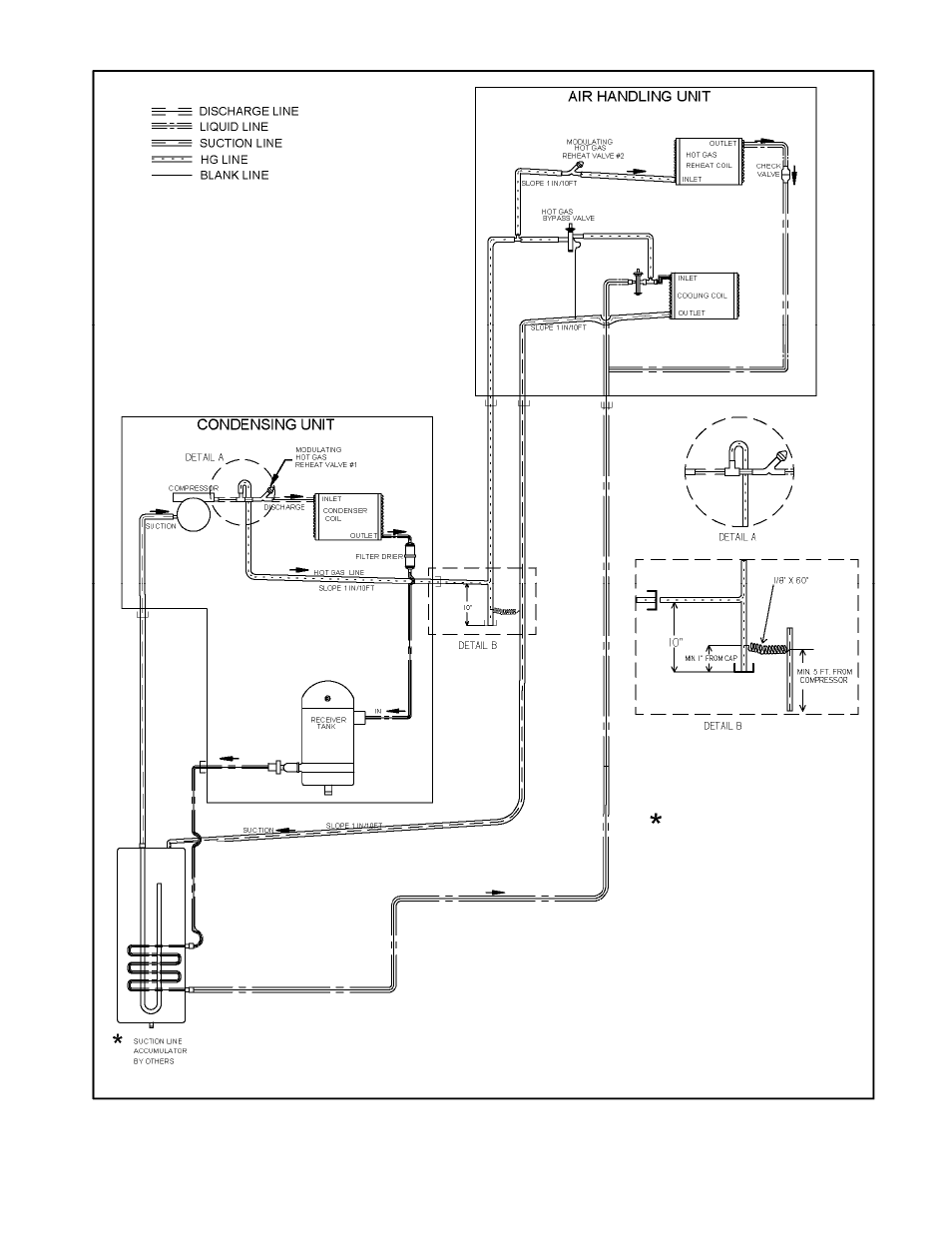

FIGURE RP-13. Reheat/Hot Gas Bypass Piping Diagram with air handler evaporator above condenser
and field installed suction line accumulator.
Note: Components shown within air
handler and condensing unit are factory
installed; all other components are field
installed.
TO BE INSTALLED IN FIELD
