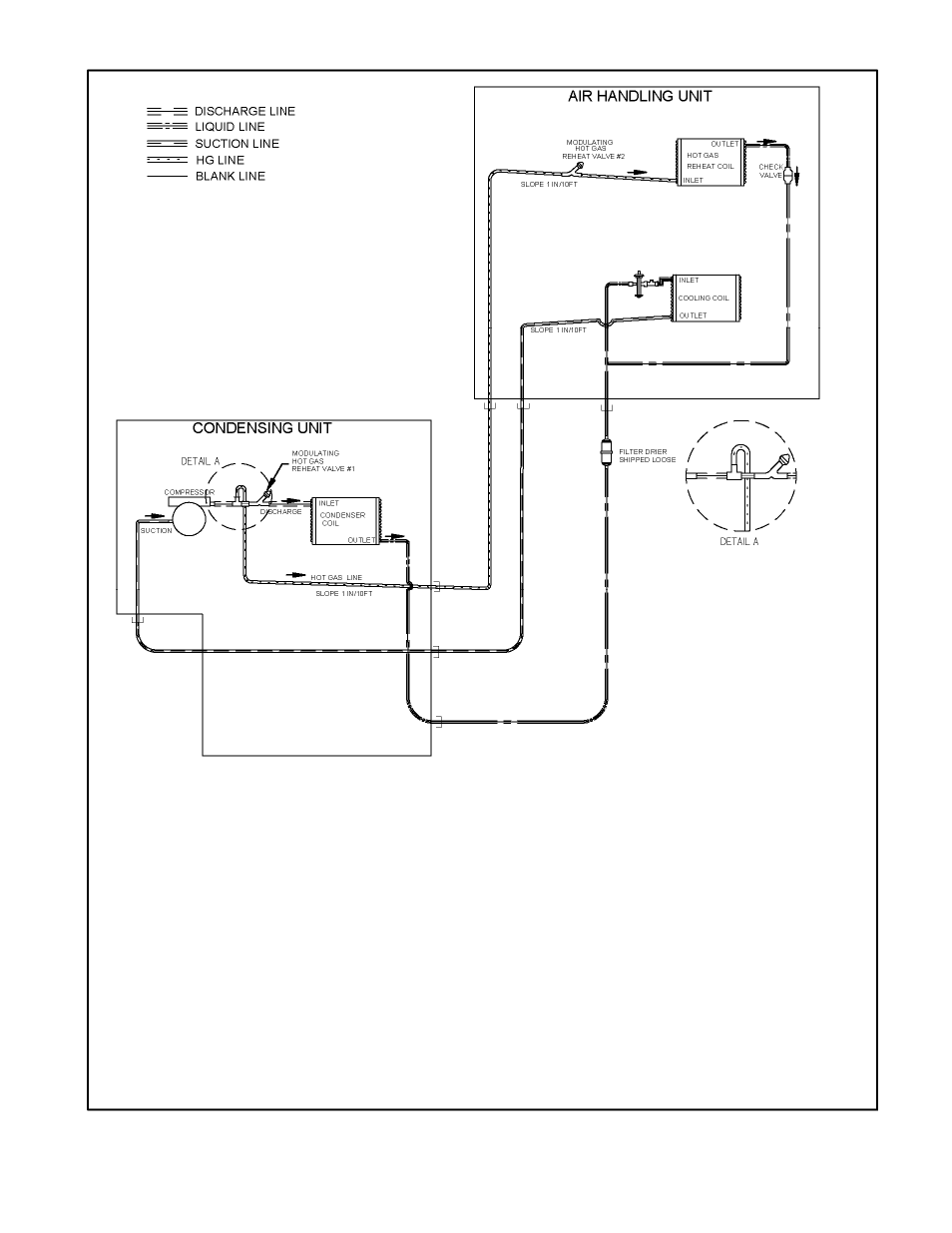

FIGURE RP-7. Hot Gas Reheat Piping Diagram with air handler above condenser.
Note: Components shown within air
handler and condensing unit are factory
installed; all other components are field
installed.
