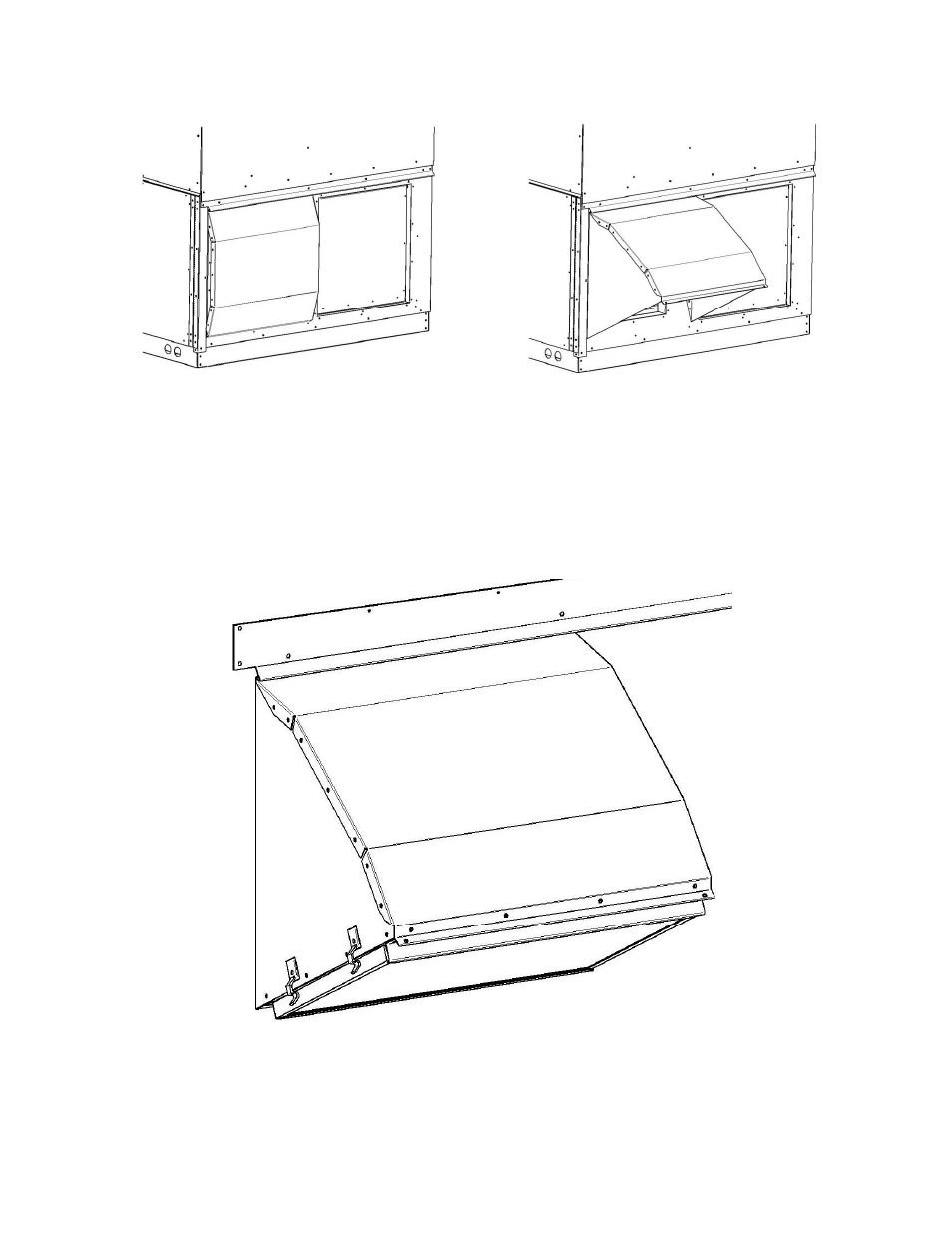

Figure 15 - RQ Series unit Closed Rain
Hood
Figure 16 - RQ Series unit Open Rain Hood
Metal Mesh Filters
Metal mesh outside air filters require
installation of the filter rack on the intake of
the rain hood.
Clips which hold the metal mesh filters in
the filter rack should face outward.
Figure 17 - Rain Hood with Metal Mesh Filter Rack Installation
