Overview

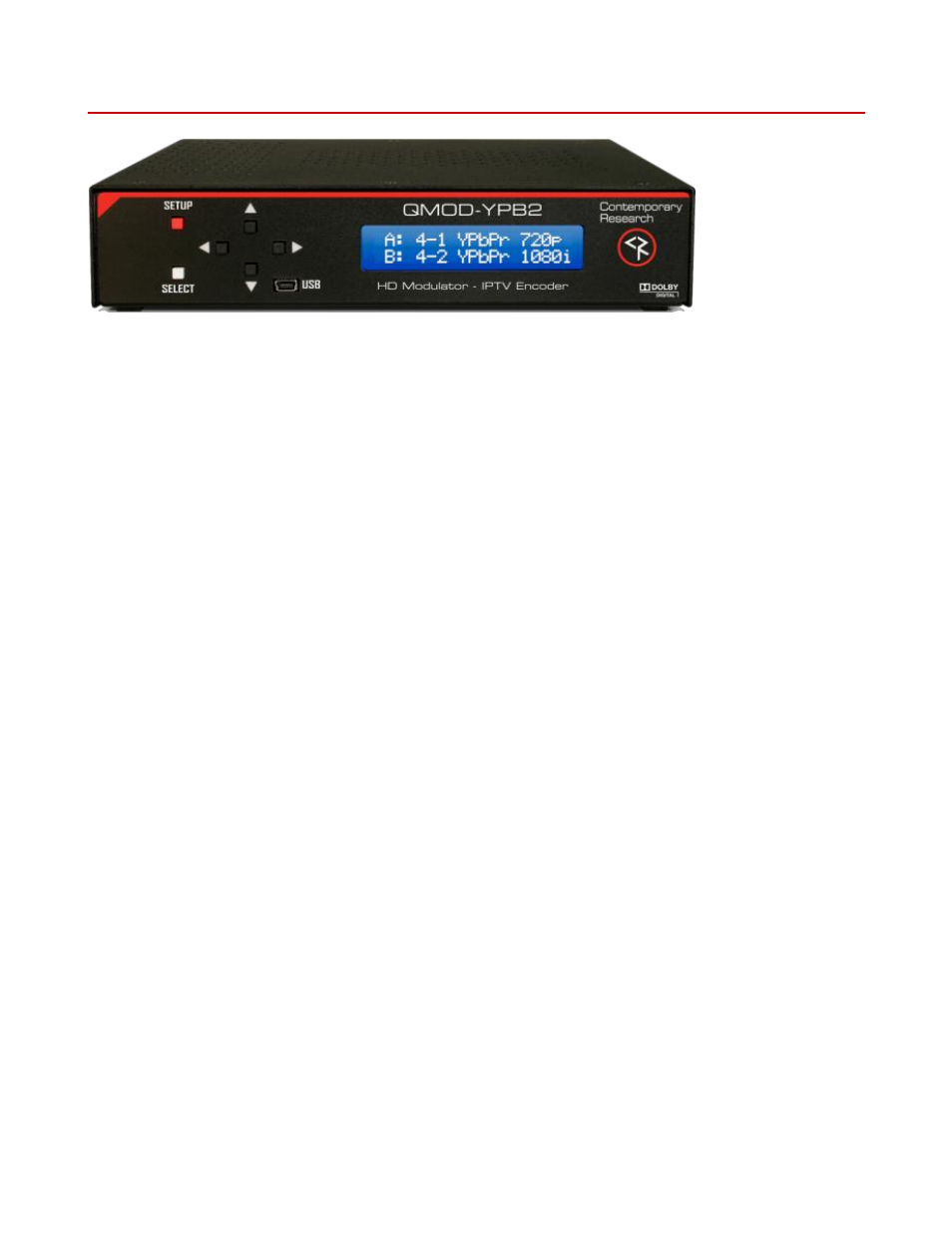

Employing a totally new HD encoding technology, the dual-channel QMOD-YPB2 continues the QMOD track
record for quality and innovation, setting a new benchmark for features and performance.
Sources
 Two Component inputs; 1080i, 720p, 480p, or 480i

Two Composite/CC video inputs for encoding, captioning, or EAS use
 Two sets of stereo and SPIDF coax audio inputs
Encoding

Creates a high-definition 720p/1080i MPEG-2 stream for broadcast
 Accepts pass-through AC-3 audio, converts stereo and PCM to stereo AC-3, can create dual-language audio for
each program
 Includes captioning from Line 21 data on composite video inputs
 Flex encoding allows use of 720p/1080i 60Hz sources, such as consumer HD cameras
Output
 Delivers a fully agile QAM 64/256 digital cable channel 2-135

Up to 270 HD Programs/Channels per system
 Streams IPTV from GigE Ethernet port
 Distributes channel over an on-site broadband cable system with adjustable output level to 29 dBmV, compatible
with all cable format broadband systems
Operation
 Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.

Onboard Web page for setup and monitoring, also accessible from front-panel USB port
 Control with IP Telnet commands
 Saves power and rack space using efficient design
 Includes compact switching power supply
 Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits

Meets RoHS safety and California energy standards
