All values are typical values unless otherwise specified.
Specifications are subject to change without notice.

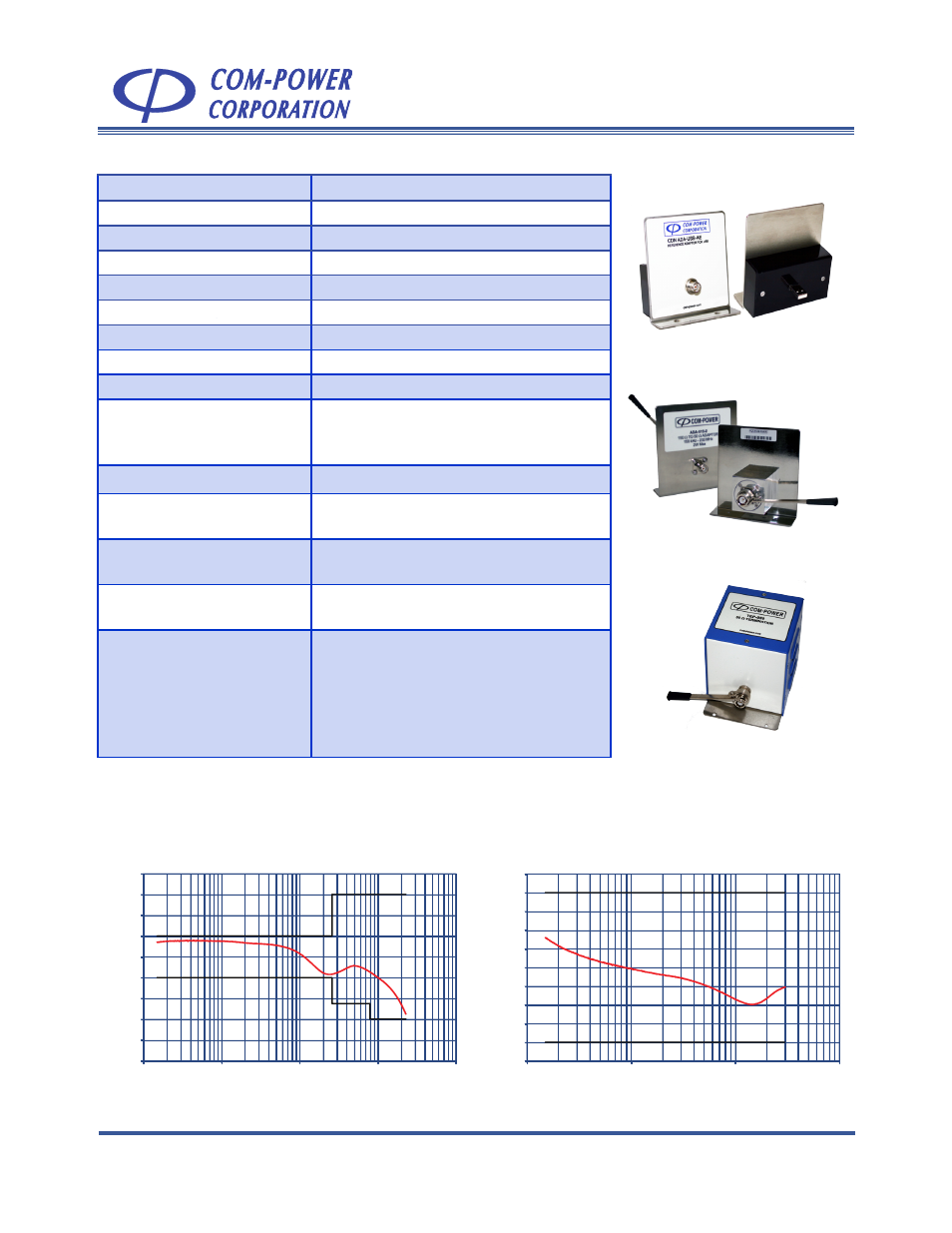

Coupling Decoupling Network
CDN-USB-AE
Typical Data
Shorting Adapter ADA-USB-AE
( Front and back view)
ADA-515-2 Adapter
(Front and back view)
50
70
90
110
130
150
170
190
210
230
0 1 10 100 1000
Im
pe
da
nc
e
(Ω
)
Frequency (MHz)
Impedance
-25
-20
-15
-10
-5
0
5
10
15
20
25
0 1 10 100
An
gl
e
(d
eg
re
es
)
Frequency (MHz)
Phase
Com-Power Corporation 119121 El Toro Road, Silverado, California 92676 (949) 459 - 9600 www.com-power.com
Rev. D01.14
Specifications
Product Name Coupling Decoupling Network (CDN)
Compliant Test Standards IEC / EN 61000-4-6
Application USB cable with type A connector
Frequency Range 150 kHz to 230 MHz
RF Input Voltage 40V (Max)
RF Input Connector 50Ω BNC (Female)
Voltage Rating 30 V AC / 30 V DC (Line to Ground)
Current Rating 1 Amp (Max)
EUT and AE Connections EUT: Type A, AE: Type B
Common Mode Impedance 150 kHz - 26 MHz: 150Ω ± 20Ω
26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
Voltage Division Factor 9.5 dB +2 / -1
Decoupling of Common
Mode Disturbance
≥ 50 dB (EUT/AE)
Dimensions 8.5 x 4.5 x 3.5 inches
21.5 x 11.4 x 8.8 cm
Weight 2 lbs.
0.9 kg
Accessories Available from
Com-Power for setting test
levels and running the test
ADA-USB-AE shorting adapters
ADA-515-2 150Ω to 50Ω adapters
TEP-050 50Ω Terminator
1, 3, 6, 10, 20, 30 dB Power Attenuators
Directional Coupler
ACS series Power Amplifiers
TEP-050 Terminator
