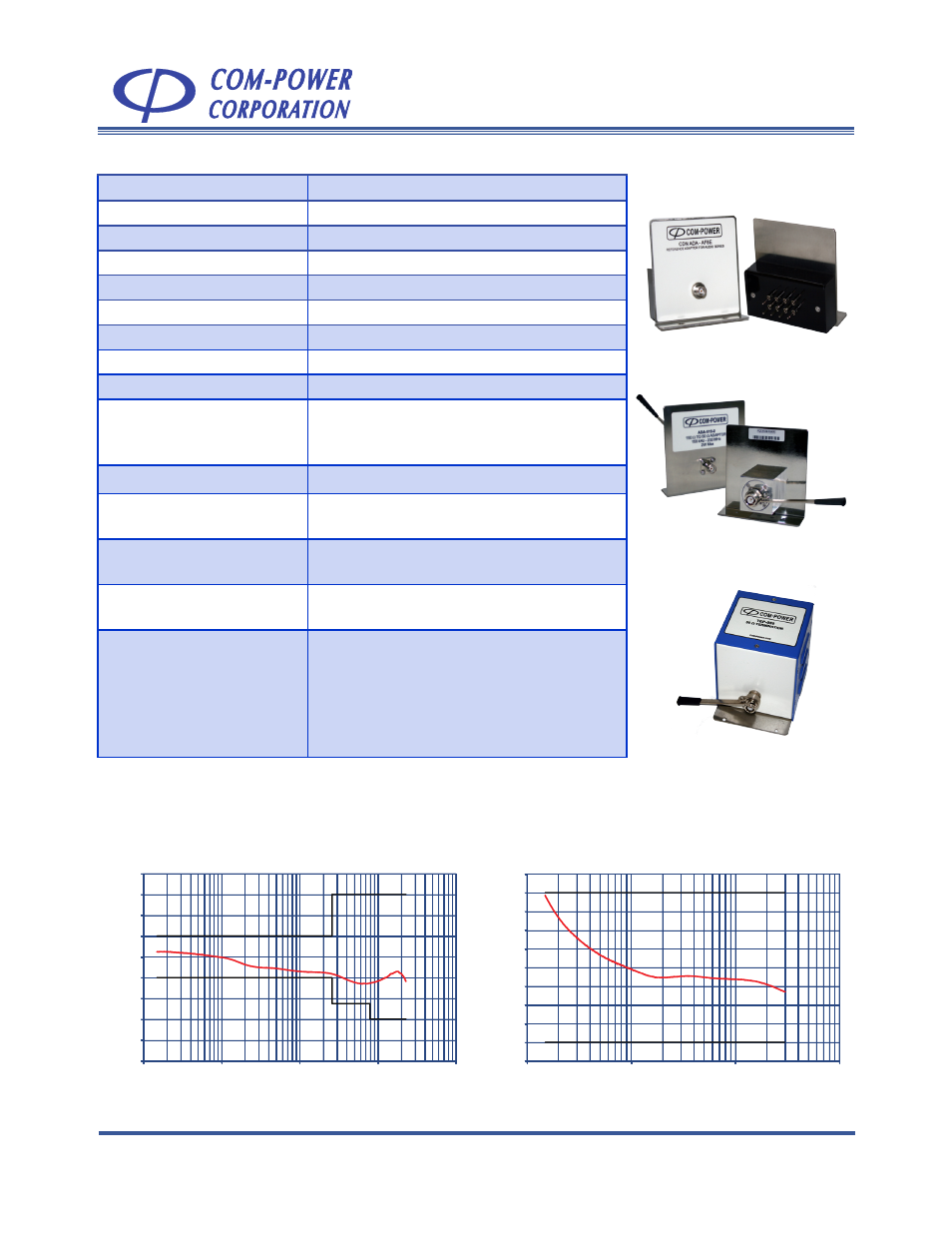

Specifications
Product Name Coupling Decoupling Network (CDN)
Compliant Test Standards IEC / EN 61000-4-6
Application Eight wire unscreened, unbalanced cables
Frequency Range 150 kHz to 230 MHz
RF Input Voltage 40V (Max)
RF Input Connector 50Ω BNC (Female)
Voltage Rating 310 VAC / 440 VDC (Line to Ground)
Current Rating 5 Amps (Max)
AE and EUT Connections 2 mm shrouded banana sockets
Common Mode Impedance 150 kHz - 26 MHz: 150Ω ± 20Ω
26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
Voltage Division Factor 9.5 dB +2 / -1
Decoupling of Common
Mode Disturbance
≥ 45 dB (EUT/AE)
Dimensions 6 x 6 x 13 inches
15.2 x 15.2 x 33 cm
Weight 5 lbs.
2.3 kg
Accessories Available from
Com-Power for setting test
levels and running the test
ADA-AF8E shorting adapters
ADA-515-2 150Ω to 50Ω adapters
TEP-050 50Ω Terminator
1, 3, 6, 10, 20, 30 dB Power Attenuators
Directional Coupler
ACS series Power Amplifiers
All values are typical values unless otherwise specified.
Specifications are subject to change without notice.
Coupling Decoupling Network
CDN-AF8E
Typical Data
Shorting Adapter Set ADA-AF8E
ADA-515-2 Adapter Set
TEP-050 Terminator
50
70
90
110
130
150
170
190
210
230
0 1 10 100 1000
Im
pe
da
nc
e
(Ω
)
Frequency (MHz)
Impedance
-25
-20
-15
-10
-5
0
5
10
15
20
25
0 1 10 100
An
gl
e
(d
eg
re
es
)
Frequency (MHz)
Phase
