Line Impedance Stabilization Network
LI-1100
Com-Power Corporation 19121 El Toro Rd., Silverado, California 92676 (949) 459 - 9600 www.com-power.com
Rev. D04.14

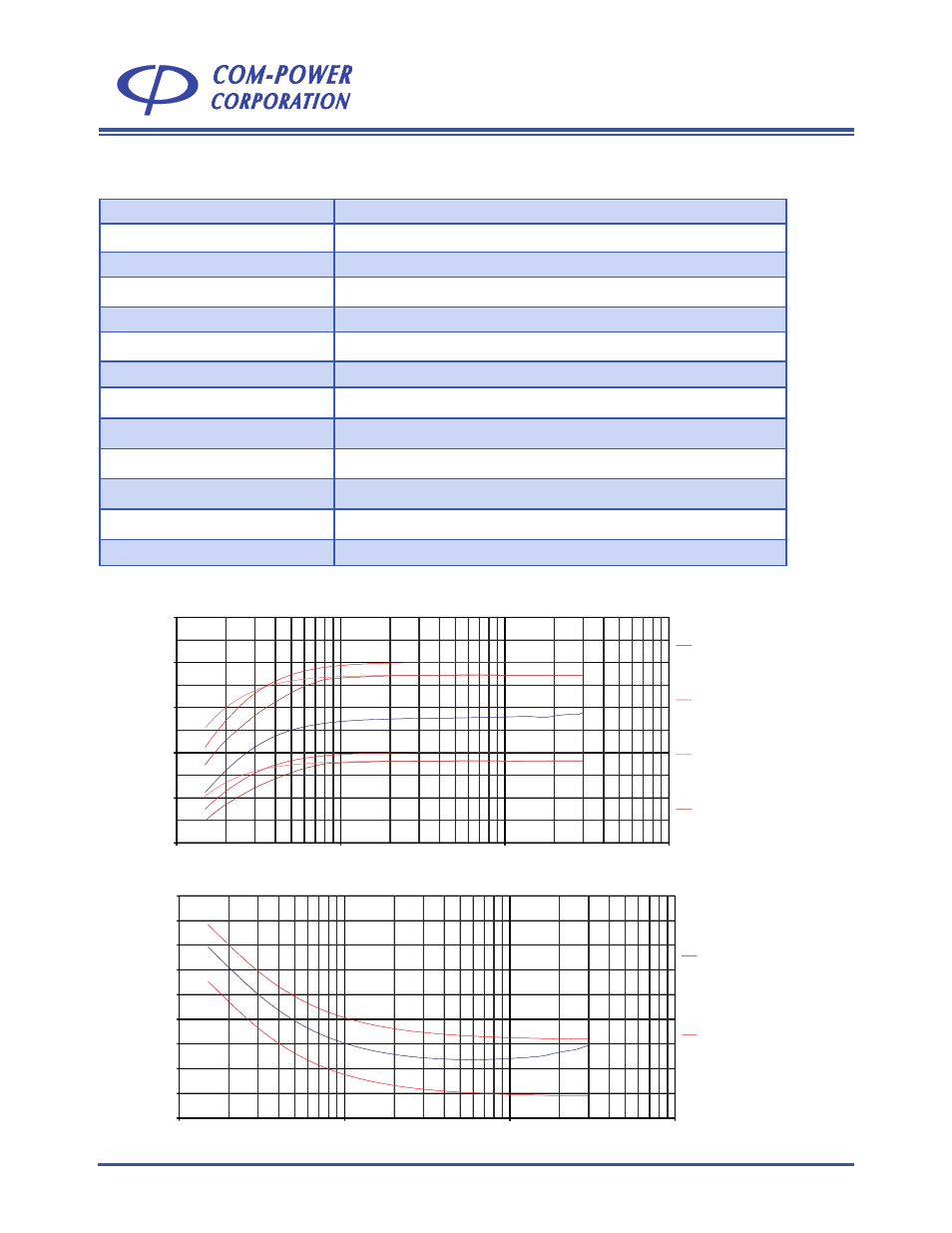

Product Name Line Impedance Stabilization Network (LISN)
Specification CISPR 16-1-2 / ANSI C63.4
Application Power line conducted emissions tests
Frequency Range 150 kHz to 30 MHz
RF Connector 50Ω N-type (female)
Current Rating 100 Amperes
(AC)
, 70 Amperes
(DC)
Voltage Rating 440 VAC (Line to Ground), 620 VDC
Inductors 50 µH (air-core)
Mains & EUT Connections Superior Electric SUPERCON® shrouded sockets
Dimensions (each network) 10 x 10 x 21 inches /25.4 x 25.4 x 53.3 cm
Weight (each network) 17 lbs. / 7.7 kg
Insertion Loss < 0.5 dB (150 kHz to 30 MHz)
Isolation > 40 dB (150 kHz to 30 MHz)
Application
All specifications are subject to change without notice.
All values are typical, unless specified.
20
30
40
50
60
70
0.1 1 10 100
Im
pe
da
nc
e
(o
hm
)
Frequency (MHz)
LISN Model No. LI-1100
CISPR 16-1-2, Ed.1.2, Tbl 4
(50uH) Impedance Limits
(±20%)
ANSI C63.4-2009, Tbl B.2
(50uH) Impedance Limits
(±20%)
ANSI C63.4-2003, Fig.1
(50uH) Impedance Limits
(±20%)
-20
-10
0
10
20
30
40
50
60
70
0.1 1 10 100
Phase Angle (degree)
Frequency (MHz)
LISN Model No. LI-1100
CISPR 16-1-2, Ed.1.2, Tbl 4
(50uH) Phase Limits
(±11.5°)
