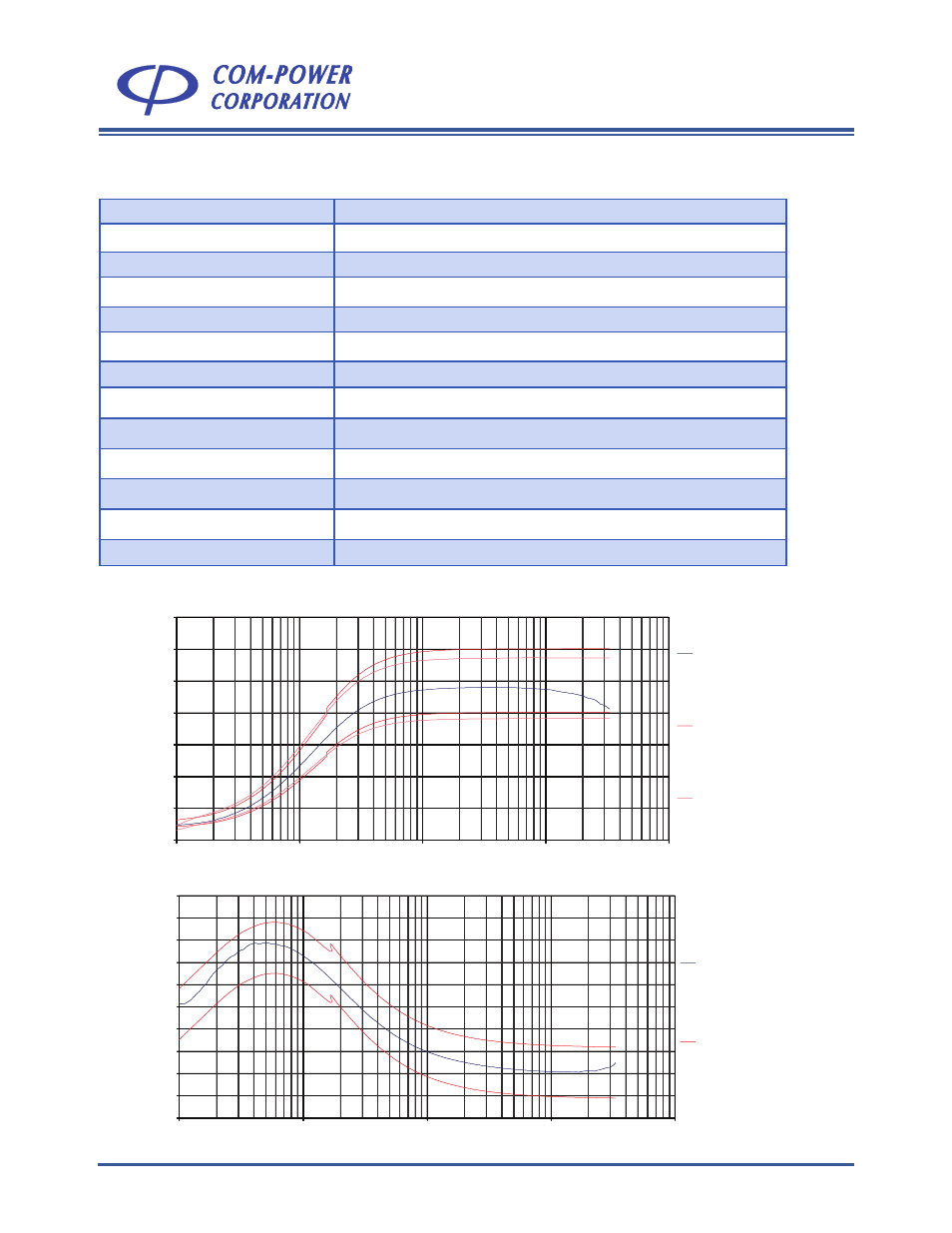

Line Impedance Stabilization Network
LI-215A
Com-Power Corporation
19121 El Toro Rd., Silverado, California 92676
(949) 459 - 9600
Rev. D04.14
Product Name
Line Impedance Stabilization Network (LISN)
Specification
CISPR 16-1-2 / ANSI C63.4
Application
Power line conducted emissions tests
Frequency Range
9 kHz to 30 MHz
RF Connector
50Ω N-type (female)
Current Rating
15 Amperes
(AC)
, 10 Amperes
(DC)
Voltage Rating
270 VAC (Line to Ground), 380 VDC
Inductors
50 µH (air-core)
Mains & EUT Connections
IEC 60320 @Mains and NEMA 5-15R @EUT
Dimensions (each network)
17 x 16 x 7 inches / 43 x 40 x 18 cm
Weight (each network)
21 lbs / 9.5 kg
Insertion Loss
< 6 dB (150 kHz to 30 MHz)
Isolation
> 20 dB (150 kHz to 30 MHz)
Application
All specifications are subject to change without notice.
All values are typical, unless specified.
0
10
20
30
40
50
60
70
0.009
0.09
0.9
9
90
Im
pe
da
nc
e
(o
hm
)
Frequency (MHz)
LISN Model No. LI-215A
CISPR 16-1-2, Ed.1.2, Tbls
3/4 (50/250uH)
Impedance Limits (±20%)
ANSI C63.4-2009, Tbl B.1
(50/250uH) Impedance
Limits (±20%)
-20
-10
0
10
20
30
40
50
60
70
80
0.009
0.09
0.9
9
90
Ph
as
e
An
ge
l (
de
gr
ee
)
Frequency (MHz)
LISN Model No. LI-215A
CISPR 16-1-2 (Phase), Tbls
3/4 (50/250uH)
