Specifications
Frequency Range 500 MHz to 18 GHz
Gain 40 dB
Gain flatness + 2.5 dB
RF Input/output 50Ω Precision N- type female
VSWR ( Input/Output) 2.2:1 (max)
Noise Figure <3 dB @ 25 o
c
Pout @ 1dB comp +12 dBm (min)
DC input 0 V
dc
(max)
Reverse isolation 40 dB (typical)
DC Power supply +15V
dc
, 500 mA
Size 7.7 x 6.5 x 3.2 inches (184 x 156 x 77 mm)
Weight 2.5 lbs (1.1 Kg)
All values are typical values unless otherwise specified.
Specifications are subject to change without notice.
Preamplifier
PAM-118A

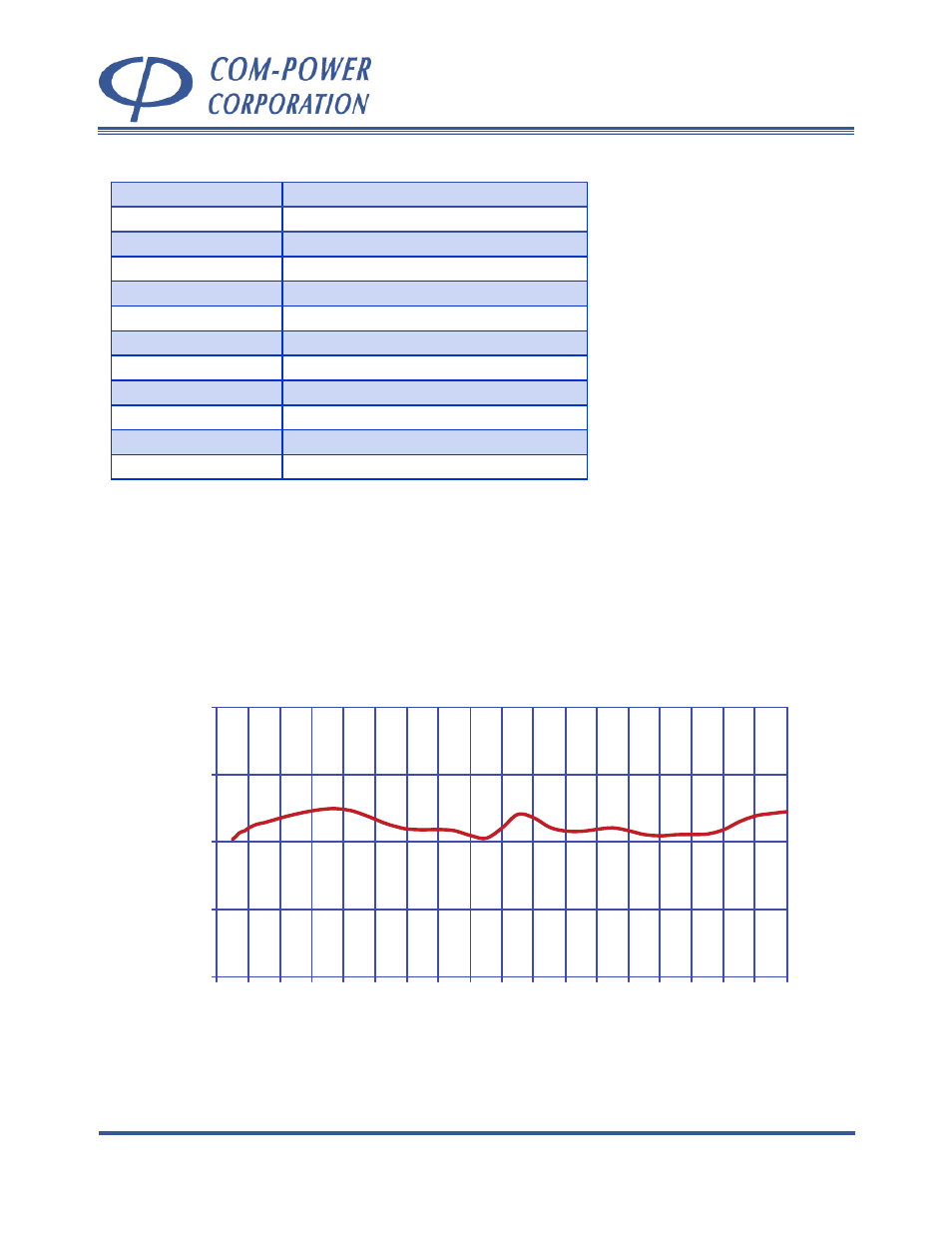

Preamplifier Gain (typical)
Rev: A, Issue: 11-12
30
35
40
45
50
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Gain (dB)
Frequency (GHz)
