Com-Power PAM-118 - Manual (Page 2)

B-4
Frequency: 500 MHz - 18000 MHz
Gain: 24 dB
Flatness: ± 1.25 dB
Noise Figure: 3 dB, max.
VSWR (Input / Output): 2.5: 1 / 2.5: 1
P
out
@1dB Comp: +17 dBm, minimum
DC Input: 0 VDC, max.
Input power handling: +10 dBm, CW
Reverse Isolation: 40 dB, typical
Power: 18 VDC, 1 Amp
Impedance: 50 Ohm
Connector type: SMA
Size: 7.7" x 6.5" x 3.2" (18.4 cm x 15.6 cm x 7.7 cm)
Weight : 2.5 lbs. (5.5 kg)
Operating Temperature + 25 o C
All specifications are subject to change without notice.
All values are typical, unless specified.

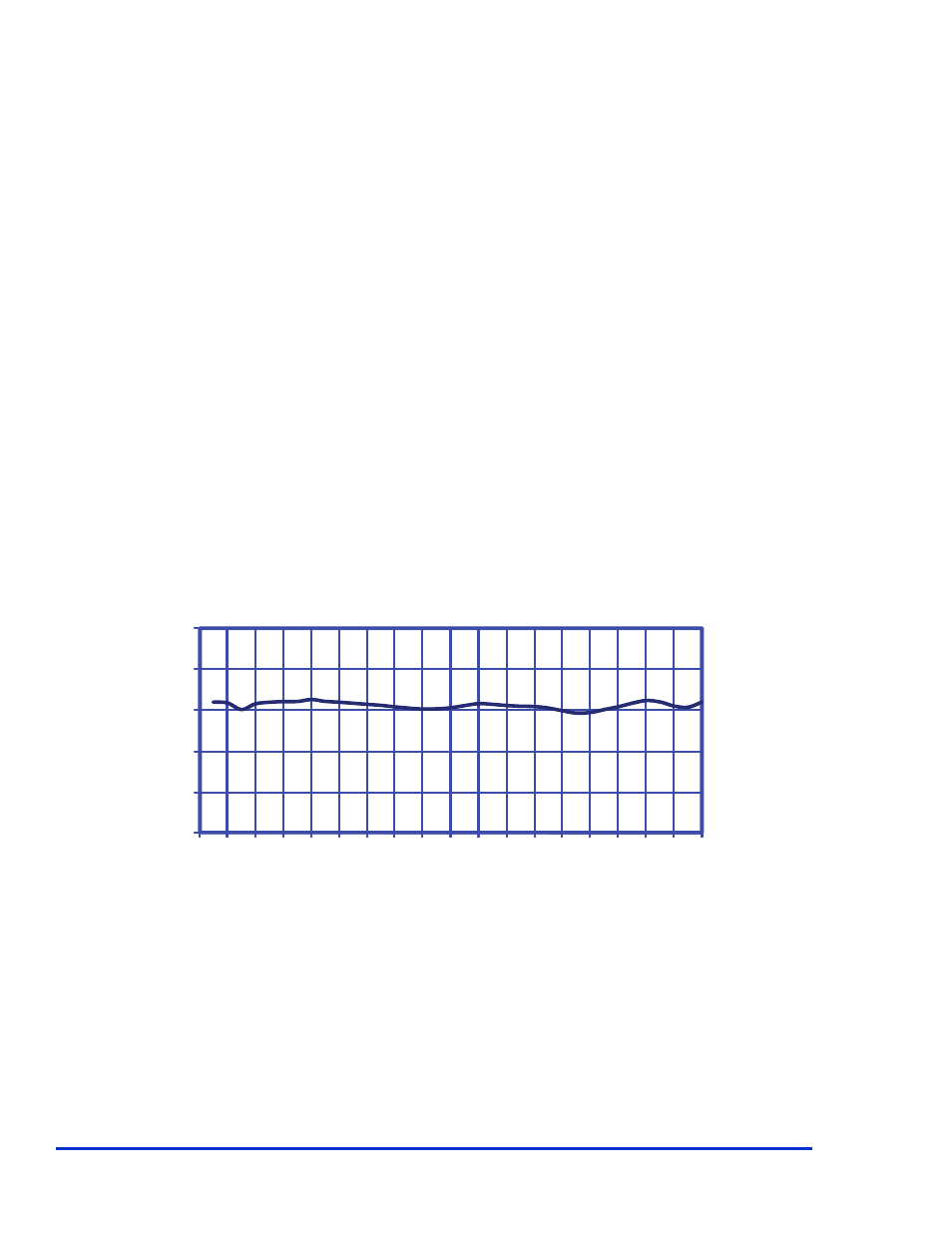

Typical Amplifier Gain
Specifications
