Installation Instructions

NW1 Racks Doors

5

5.

Remove and save nut from the grounding lug on rack side
rail. (See Figure 4)

6.

Attach grounding wire from door to the grounding lug. (See
Figure 4)

7.

Replace and tighten nut onto grounding lug. (See Figure 4)

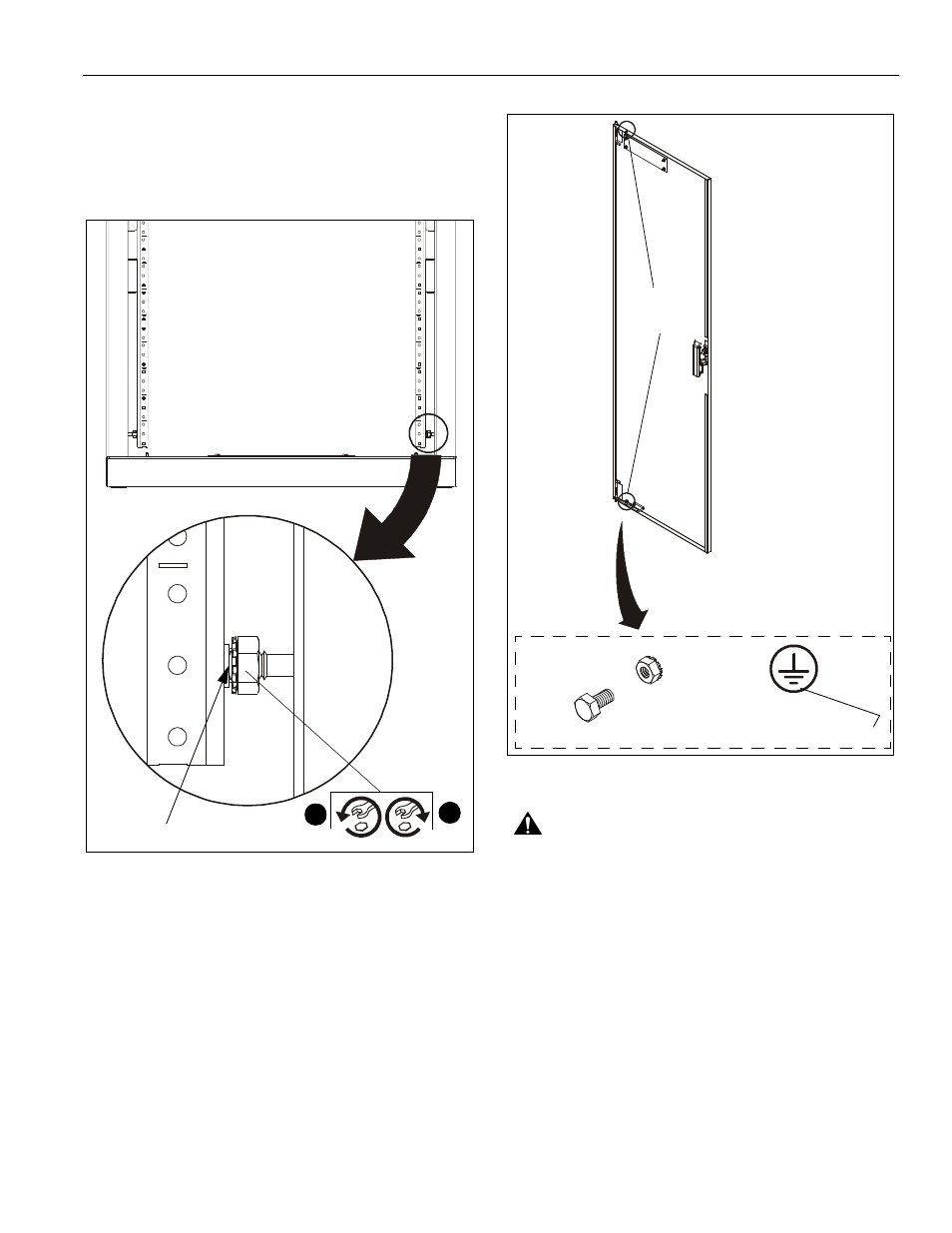

Figure 4

Figure 5

DANGER:

IMPROPER WIRING CAN LEAD TO DEATH

OR SEVERE PERSONAL INJURY! Grounding must be
installed by qualified personnel using a UL Recognized No.
12AWG Green and Yellow grounding wire connected to
grounding lug on rack.

5

7

Add door grounding wire

(front view of rack)

(inside view of door)

Grounding screw and nut
installed at factory

affixed adjacent to grounding terminal.

Earthing symbol IEC 60417 No. 5019

Location of
grounding
lugs
