QMP1MK Installation Instructions
6

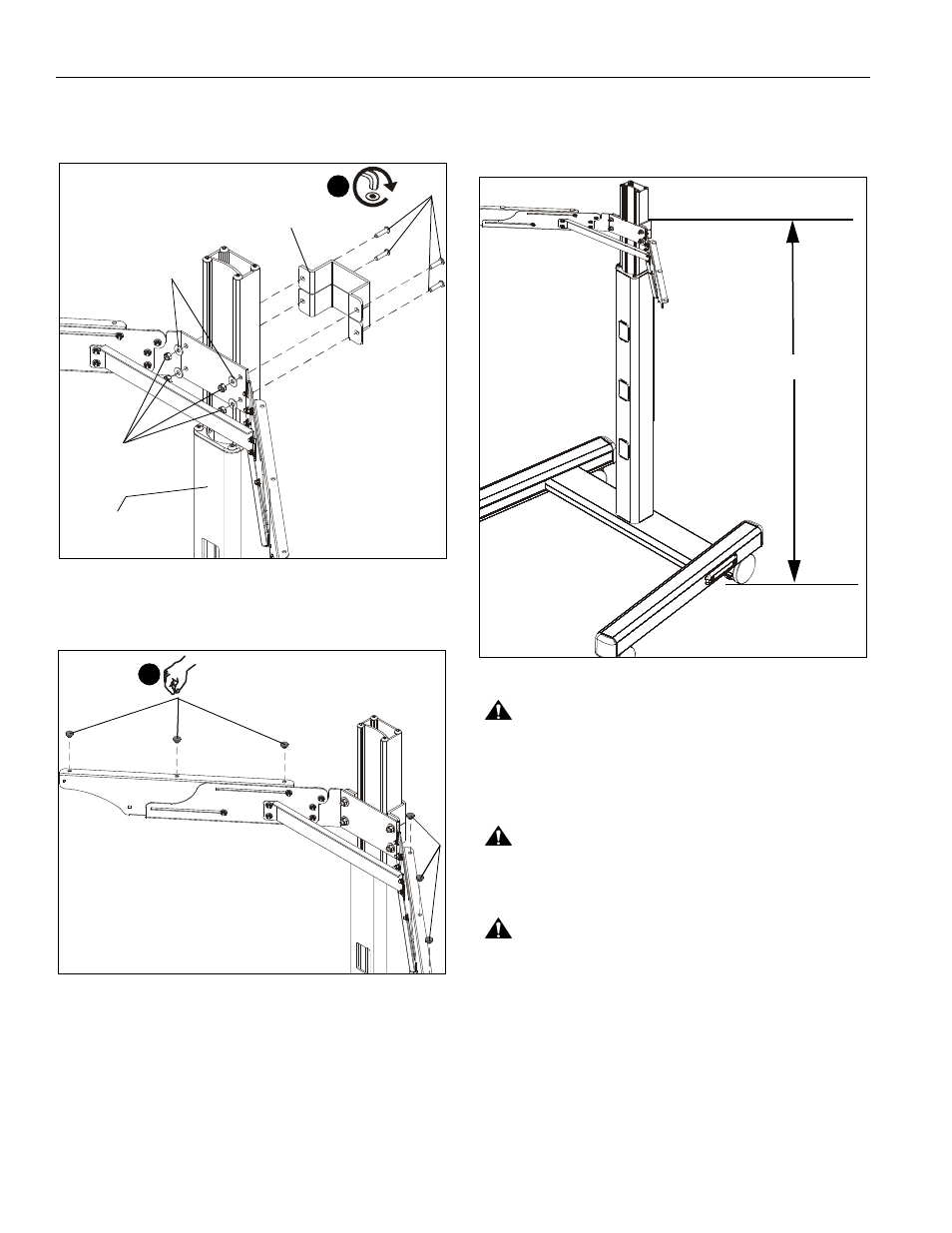

7. Attach two array clamps (A or B) to bracket assembly using
four 1/4-20 x 1" button head cap screws (G), four #24 flat
washers (M) and four 1/4-20 nylon lock nuts (J). (See Figure 4)
Figure 4
8. Add six rubber bumpers (N) to top of bracket assembly.
(See Figure 5)
Figure 5
IMPORTANT ! : The maximum distance allowed between
the top of the array clamp holding the bracket assembly
in place and the floor is 48 inches. (See Figure 6)
Figure 6
CAUTION: This shelf is intended for use with equipment
weighing not more than 70 lbs (31.8 kg) and having
dimensions that will permit it to sit evenly on this shelf. Use
with other equipment may result in instability causing
possible injury.
CAUTION: Do NOT sit or hang on the shelf. Such use may
result in instability causing possible injury and damage to
equipment.
CAUTION: Equipment MUST be fastened to the shelf
before moving the cart or stand. If equipment is not fastened
to the shelf it MUST be removed before moving the cart or
stand.
Cable Management
Follow cable management instructions in the stand or cart
installation instructions.
7 (G) x 4
(A or B) x 2
(M) x 4
(J) x 4
[Array clamp, inner (B) shown]
QMP1FB or
QMP1MB
8 (N) x 6
(N)
Floor
Top of array clamp
48" MAXIMUM
