Tools required for installation parts – CHIEF QMP1MK User Manual
Page 4
QMP1MK
Installation Instructions
4

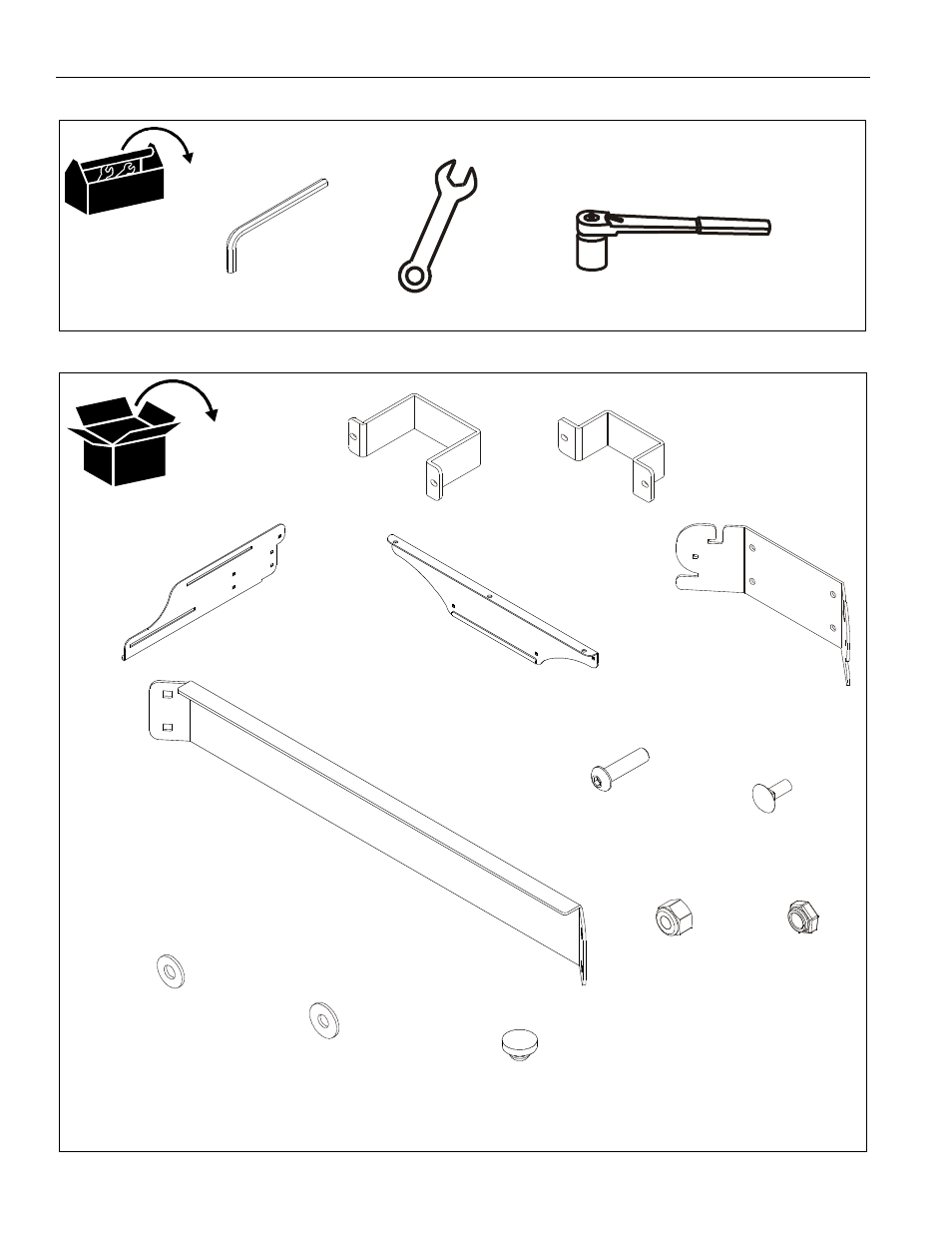

TOOLS REQUIRED FOR INSTALLATION
PARTS
5/32"
5/16"
7/16"
5/16"
7/16"
A (2)
[Array clamp, outer]
B (2)
[Array clamp, inner]
C (2)
[Fixed brace]
D (2)
[Adjustable brace]
E (1)
[Base bracket]
F (1)
[Center brace]
G (4)
1/4-20 x 1"
H (14)
10-24 x 3/8"
J (4)
1/4-20
K (14)
10-24
L (14)
#10
M (4)
#24
N (6)
[Bumper]
