Installation Instructions
PAC-710
5
5.

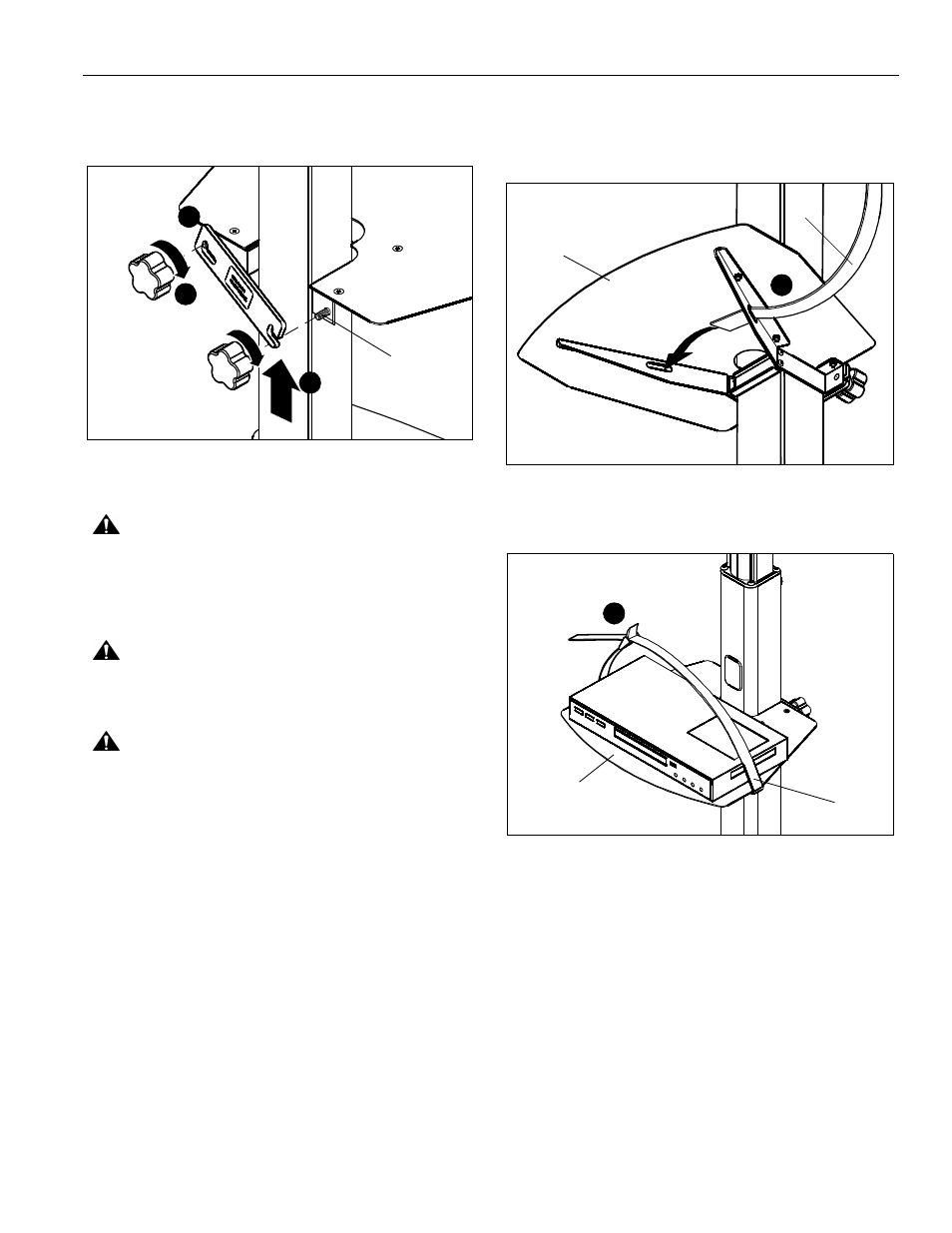

Place shelf around center post and level. (See Figure 6)
6.
Raise shelf bracket and hook over shelf’s right stud. (See
Figure 6)
Figure 6
7.
Turn both knobs clockwise to tighten the shelf in place. (See
Figure 6)
CAUTION:
This shelf is intended for use with equipment
weighing not more than 25 lbs (11.34 kg) and having
dimensions that will permit it to sit evenly on this shelf. Use
with other equipment may result in instability causing
possible injury.
CAUTION:
Do NOT sit or hang on the shelf. Such use may
result in instability causing possible injury and damage to
equipment.
CAUTION:
Equipment MUST be fastened to the shelf
before moving the cart. If equipment is not fastened to the
shelf it MUST be removed before moving the cart.
Installing Safety Strap
1.
Place equipment on shelf (A).
2.
Thread strap (B) through slots in shelf (A). (See Figure 7)
Figure 7
3.
Loop strap (B) over top of equipment and slide strap end
into clasp. (See Figure 8)
Figure 8
5
6
Knobs shown
removed for
viewing purposes
only.
RIght Stud
7
2
(A)
(B)
(B)
(A)
3
