Installation Instructions MAC252
5

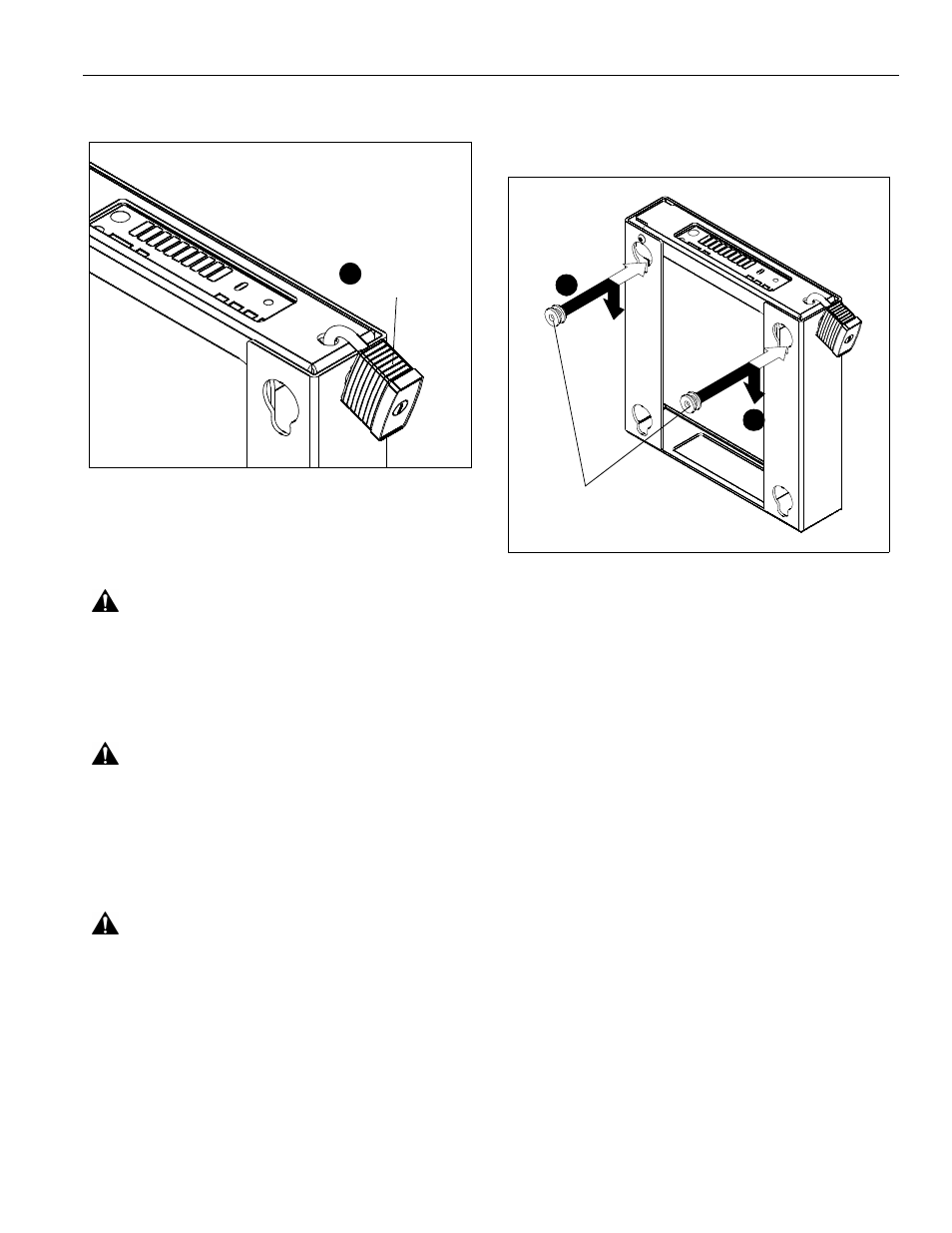

10. Install optional padlock, if desired. (See Figure 5)
Figure 5
INSTALLATION
Install CPU Holder with CPU to Mount
WARNING: COMBINED WEIGHT OF CPU AND CPU
HOLDER MAY WEIGH IN EXCESS OF 40 LBS. ALWAYS
use two people when lifting and follow proper lifting
techniques when installing!
1. Install the CPU holder, with CPU, onto mount and route
wires and cables following the instructions provided with the
mount.
WARNING: IMPROPER INSTALLATION CAN LEAD TO
CPU HOLDER FALLING! Make certain mounting buttons on
CPU holder are fully engaged in teardrop holes in mount and
latching flag on mount is fully closed before installing the
display.
Install Display
WARNING: DISPLAY MAY WEIGH IN EXCESS OF 40
LBS. ALWAYS use two people when lifting and follow proper
lifting techniques when installing!
IMPORTANT ! : The following procedure assumes that
the proper interface bracket for display being mounted
has already been installed on display. If no interface
bracket is present on display, install bracket to display
using instructions included with interface bracket before
proceeding.
1. While supporting each side of display, align four mounting
buttons on display or interface bracket with four teardrop
slots in CPU holder (See Figure 6).
2. Lower display firmly into place.
Figure 6
3. Ensure mounting buttons are fully seated in teardrop slots.
4. Connect cables to display.
Optional
Padlock
10
Mounting Button
(On interface bracket or display)
[Display removed for clarity]
1
2
