Installation Instructions Model: PAC-125/PAC-126
5

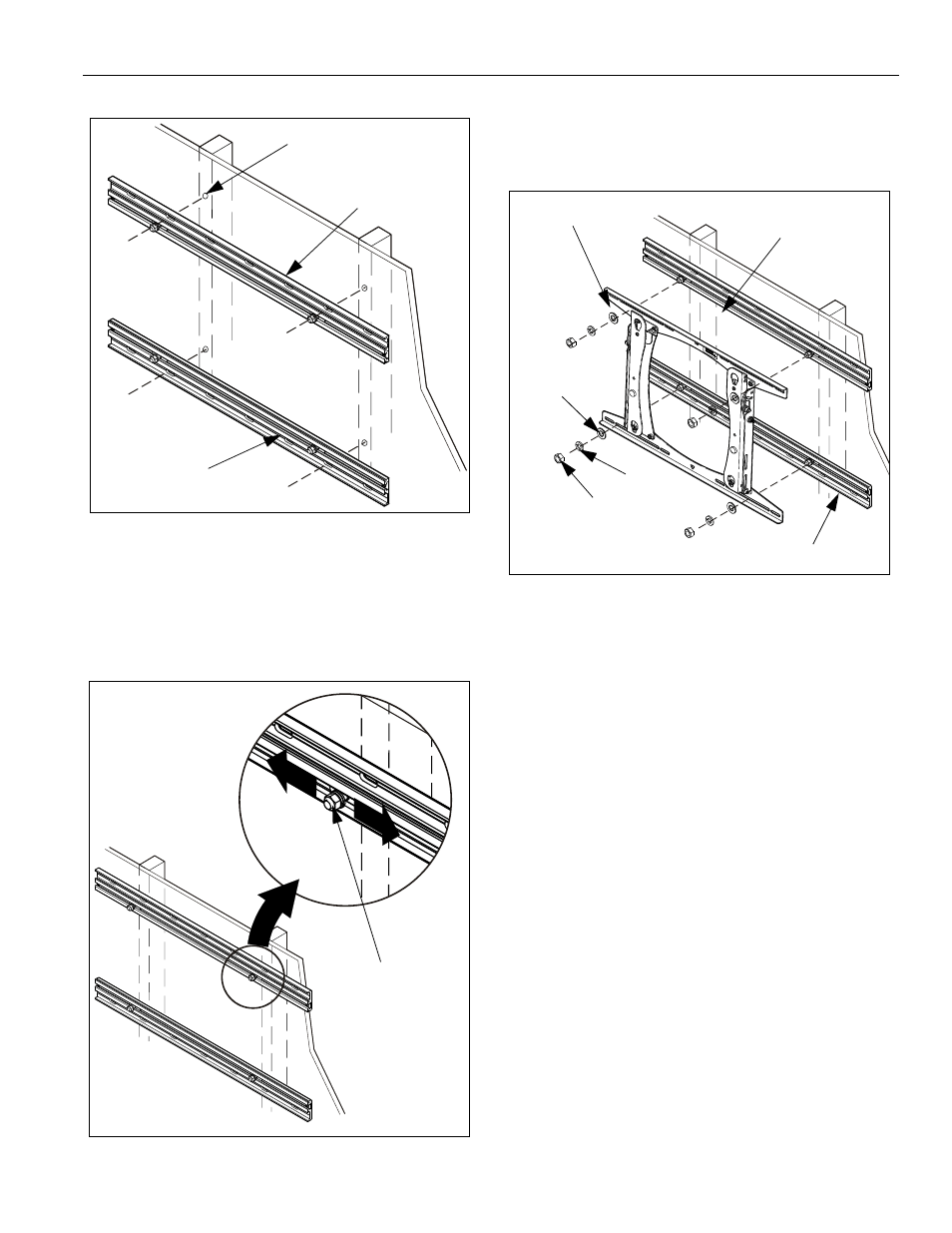

Figure 6: Mount Lateral Shift Brackets on Wall
10. Identify mounting holes in mount being installed using
the installation instructions provided with the mount.
11. Position mounting studs in upper and lower lateral
shift brackets so that they align with mounting holes in
mount being installed.
Figure 7: Position Mounting Tabs
12. Place mount onto mounting studs on lateral shift
brackets and secure using four Flat washers (70), four
lock washers (40), and four hex nuts (50).
(see Figure 8)
Figure 8: Install Mount to Lateral Shift Brackets
Pilot Holes
(4 places)
Upper Bracket
(mounting slots up)
Lower Bracket
(mounting slots down)
Mounting Stud
Align with mounting
holes in mount
(4 places)
Upper Bracket
Lower Bracket
Mount being installed
70
40
50
