Installation Instructions Model: PAC-125/PAC-126
3
TOOLS REQUIRED FOR INSTALLATION
• Drill and Drill bits
• Phillips Screw Driver
INSPECT MOUNT BEFORE ASSEMBLY
CAUTION!
Carefully inspect components for shipping damage. If
damage is apparent, call your carrier claims agent and
do not continue with installation until the carrier has
reviewed the damage. (see Figure 2)
Table 1: Parts
ITEM DESCRIPTION QTY*
10 BRACKET, Lateral Shift
PAC-125 28.00" long/PAC-126 36.00" long
2
20 NUT, T-Slot, 5/16-18 4
30 STUD, Threaded, 5/16-18 4
40 WASHER, Lock, 5/16" 4
50 NUT, Hex, 5/16-18 4
60 SCREW, Panhead, Self Tapping, #8 x 1/4" 4
70 WASHER, Flat, 1/4" 4

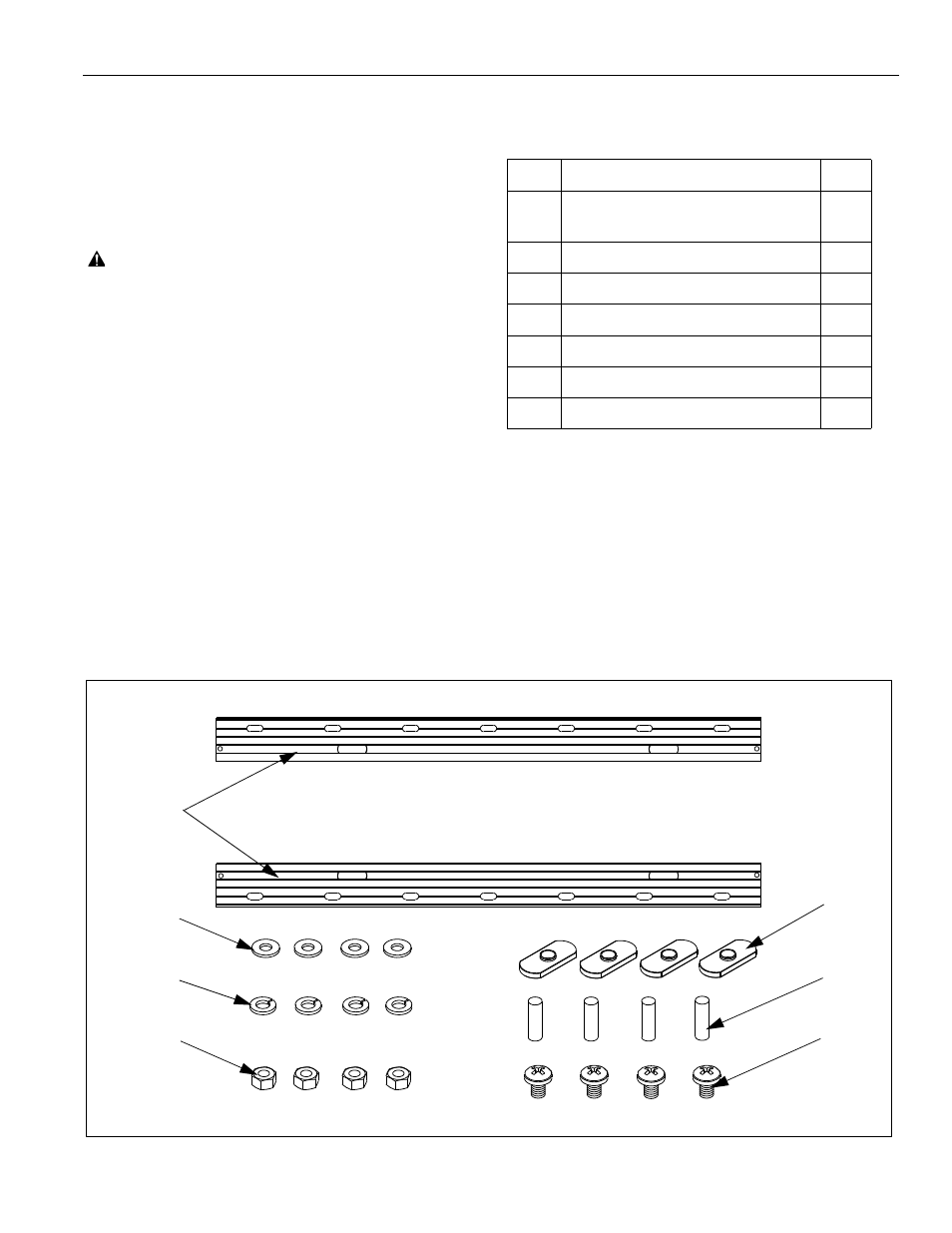

Figure 2: Parts
10
20
30
40
50 60
70
