PAC-400 Installation Instructions
6

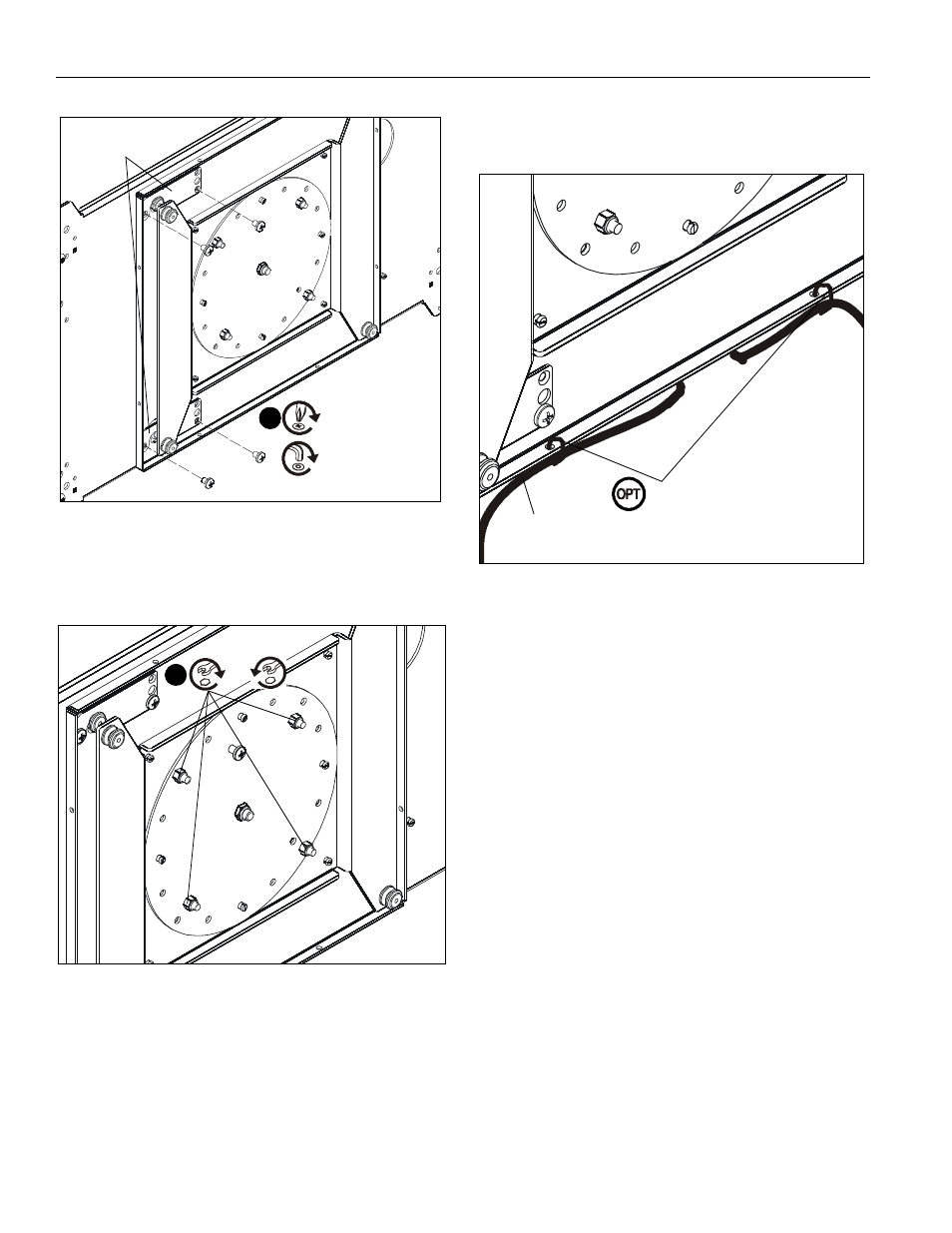

Figure 3
5. Set desired amount of friction for rotating screen by
tightening or loosening nuts on back side of PAC-400. (See
Figure 4)
Figure 4
6. With the aid of another person, lift display and PAC-400 up
to mount, aligning buttons of rotation accessory with slots in
the Chief mount.
7. Raise safety latch on Chief mount to secure display, making
sure latch is completely engaged.
8. To rotate screen the other way, take screen and rotation
accessory from Chief mount and rotate the back plate of the
PAC-400 by 90 degrees.
9. Install screen on Chief mount.
Cable Management (Optional)
1. Use holes on outside bends to tie wires for cable
management. (See Figure 5)
Figure 5
NOTE: On tilting mounts, it may be necessary to increase
friction on tilting mechanism since PAC-400 adds depth
to overall installation and roll adjustment on PDS mount
may need tightening.
4
(B) x 2
(E) x 4
(F) x 4
or
4
or 5
cable (typical)
cable ties (not included)
