PAC501 Installation Instructions
4

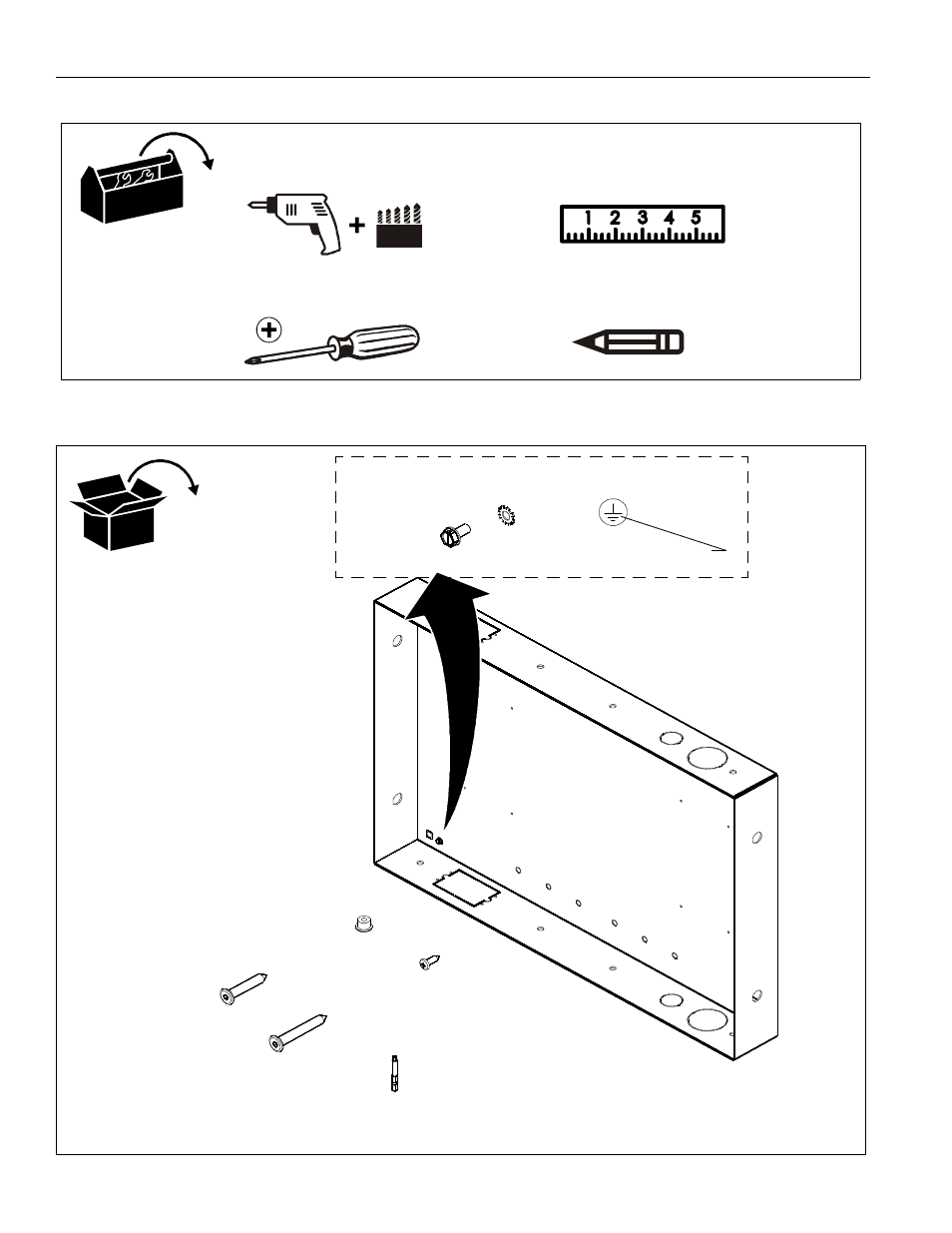

TOOLS REQUIRED FOR INSTALLATION
PARTS
3/16"
B (4)
C (8)
M7 x 40mm
F (6)
08 x 1/2"
Grounding screw and washer
installed at factory
Earthing symbol IEC 60417 No. 5019
affixed adjacent to grounding terminal.
D (4)
M7 x 50mm
A (1)
[In-Wall Enclosure]
[Mounting
Spacers]
[Extras if needed for
installing electrical box]
E (1)
M4
