Installation Instructions FCA612
7
7. Hang shelf support (B or C) onto top screw installed in Step
6. (See Figure 5)
8. Tighten top screw to ensure shelf support is secured in
position. (See Figure 5)

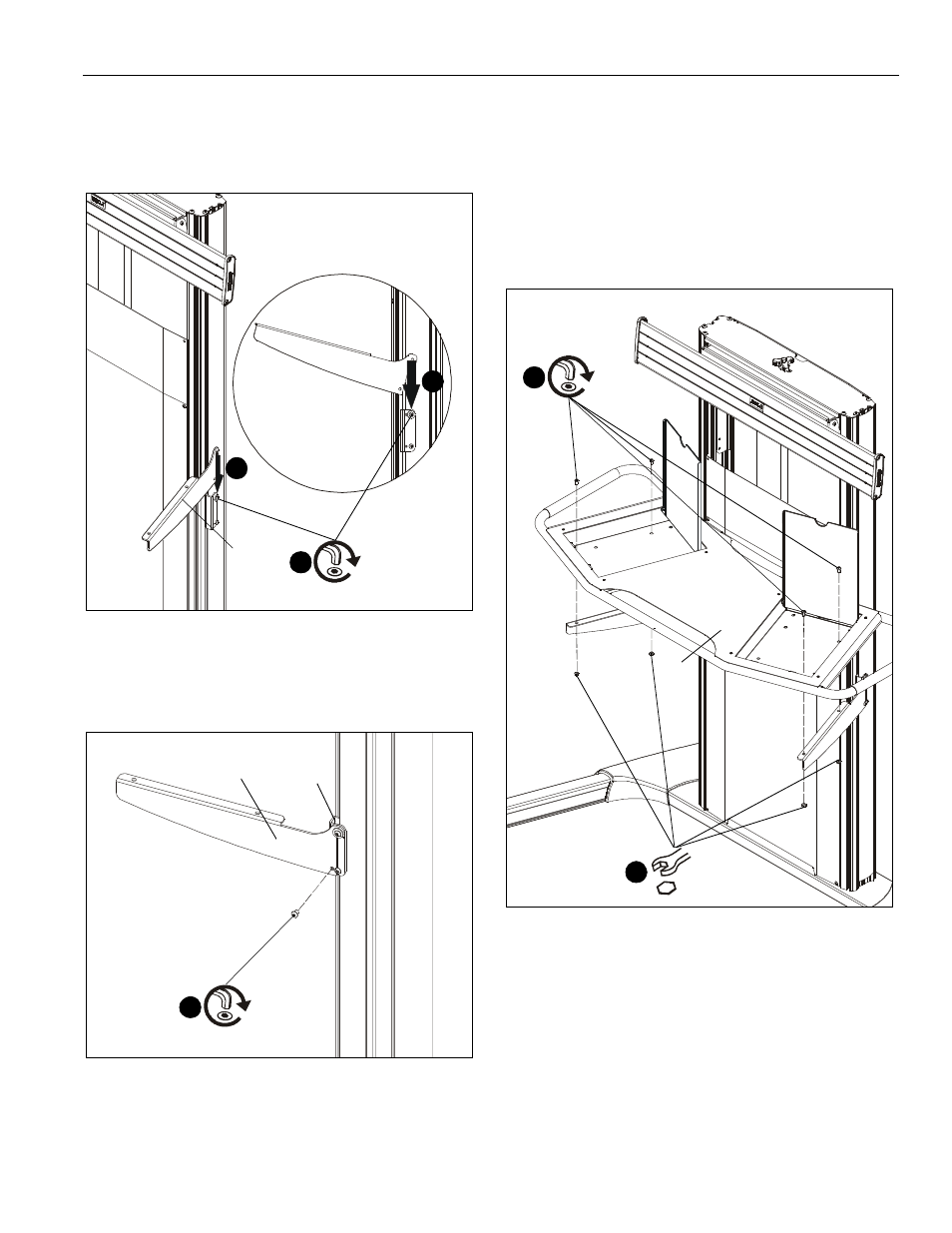

Figure 5
9. Install 1/4-20 x 3/8” button head cap screw (F) into lower
front hole to secure shelf support (B or C) to adapter bracket
(E). (See Figure 6)
Figure 6
10. Repeat Steps 2-9 on other side of the cart with opposite
shelf support.
NOTE: In order to ensure a level mount, measure the distance
from the bottom of the cart to the shelf support and
install the second shelf support at the same height.
11. Open storage tray lids and use four 1/4-20 x 1/2” button
head cap screws (H) and four 1/4-20” lock nuts (J) to secure
large storage shelf (A) to shelf supports (B and C). (See
Figure 7)
NOTE: If installing to LPAU cart, inside holes will be used to
secure shelf to uprights.
Figure 7
side view
7
7
(C)
8
(F)
(C)
9
(E)
(H) x 4
(A)
11
(J) x 4 10
