CHIEF FCAC - Manual (Page 5)

Installation Instructions FCAC
5
INSTALLATION
NOTE: The FCAC is intended to assist with alignment of LCM
menu boards and ceiling mounted video walls.
WARNING: Displays may NOT be attached to the FCAC
OR mounted across the FCAC. The FCAC is NOT intended
to be a load-bearing accessory.
1. Assemble LCM Ceiling Mounted Menu Boards Series or
LCM Ceiling Mounted Video Walls Series, according to
included installation instructions.
2. Rotate end cap on one end of rail by loosening one screw
and removing one screw holding end cap to rail. (See
Figure 1)
3. Repeat Step 2 for end of adjacent rail. (See Figure 1)

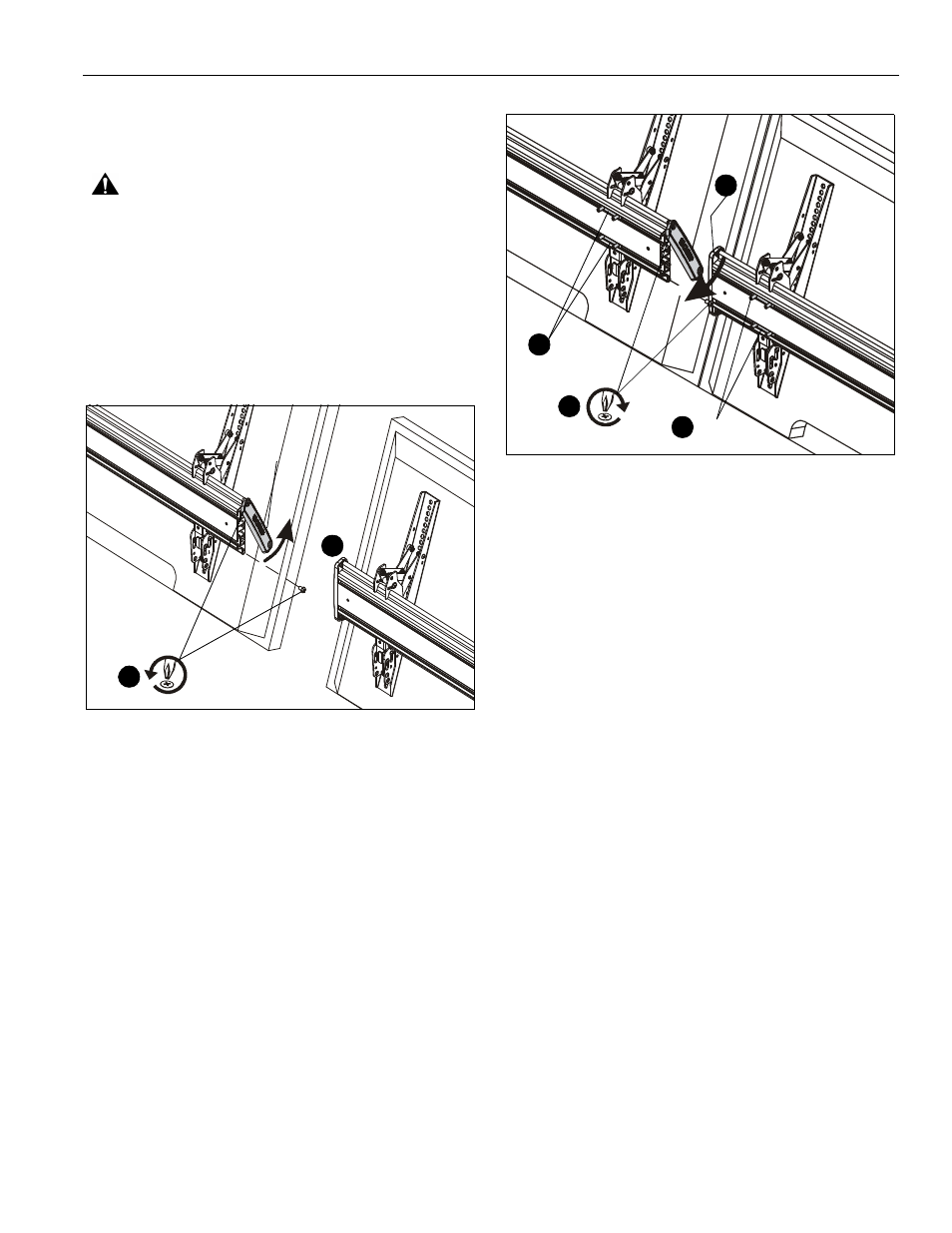

Figure 1
4. Insert two T-slot nuts (B) into rail. (See Figure 2)
5. Rotate end cap back into position and fasten with screws
loosened or removed in Steps 2 and 3. (See Figure 2)
6. Repeat Steps 4 and 5 for end of adjacent rail. (See Figure 2)
Figure 2
2
3
5
(B) x 2 4
(B) x 2 6
