Installing to Wall Mount with Display Removed
NOTE: Installing the FCS100 to a wall mount where a display
has been removed allows use of security screws to
prevent the FCS100 from being removed.

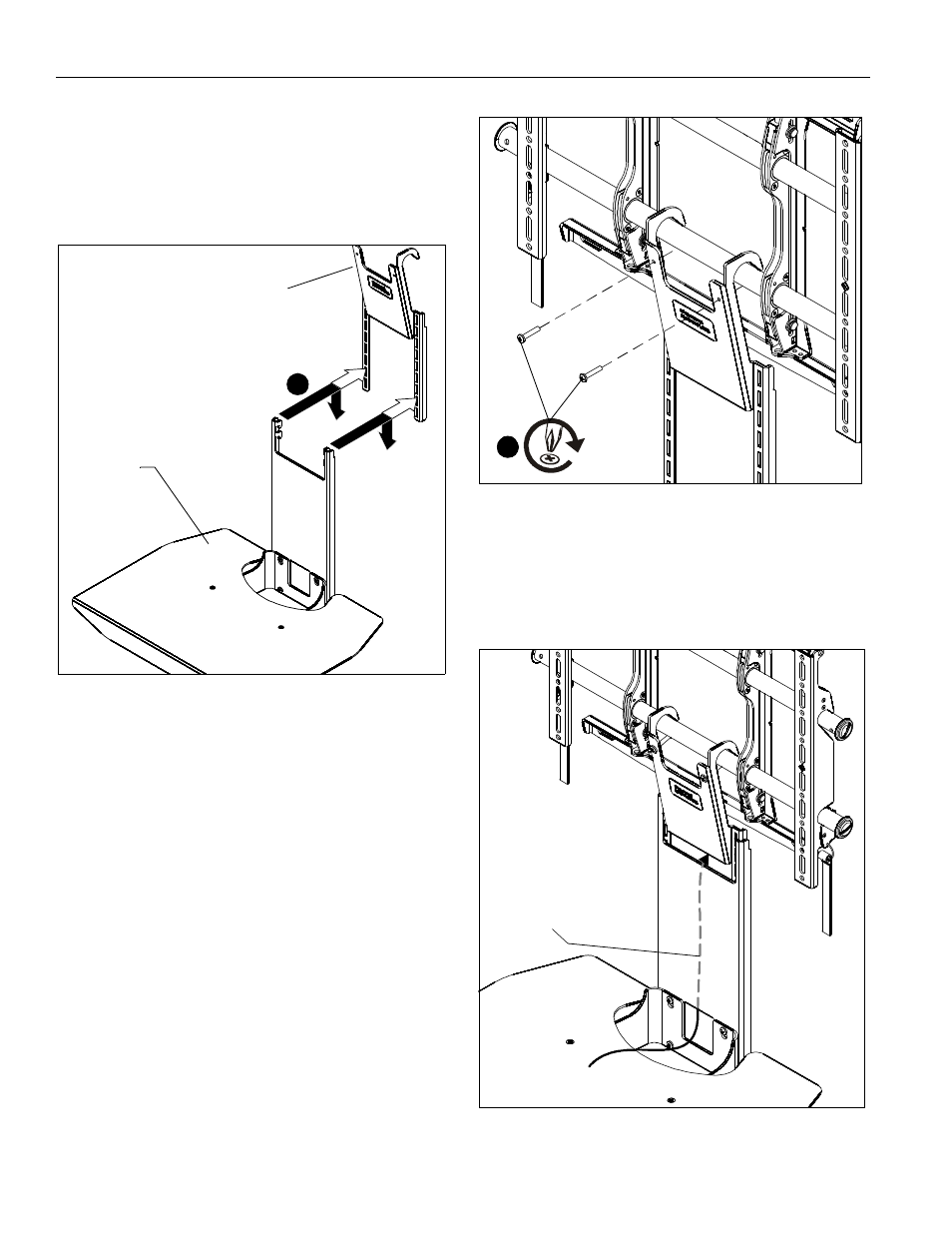

1. Hang shelf with hanger bracket onto the hook bracket (C).
(See Figure 4)
Figure 4
NOTE: The shelf with hanger bracket may be adjusted up or
down on the hook bracket (C) in 7/8" increments for a
total height adjustment of up to 6-1/8".
2. Remove display if already attached to wall mount following
instructions included with the wall mount.
3. Hang FCS100 on wall mount rail.
4. Adjust location and secure to wall mount rail using two
10-24 x 1" Phillips pan head screws (E). (See Figure 5)
5. Hang display on wall mount following installation
instructions included with the wall mount.
Figure 5
Routing Cable
1. Place accessory on component shelf.
2. Route cable from accessory up and behind FCS100. (See
Figure 6)
Figure 6
1
(C)
Shelf with
hanger
bracket
(E) x 2 4
Routing Cable
