Installation Instructions FCS100
5
Assembly and Installation
Assembling Shelf and Brackets

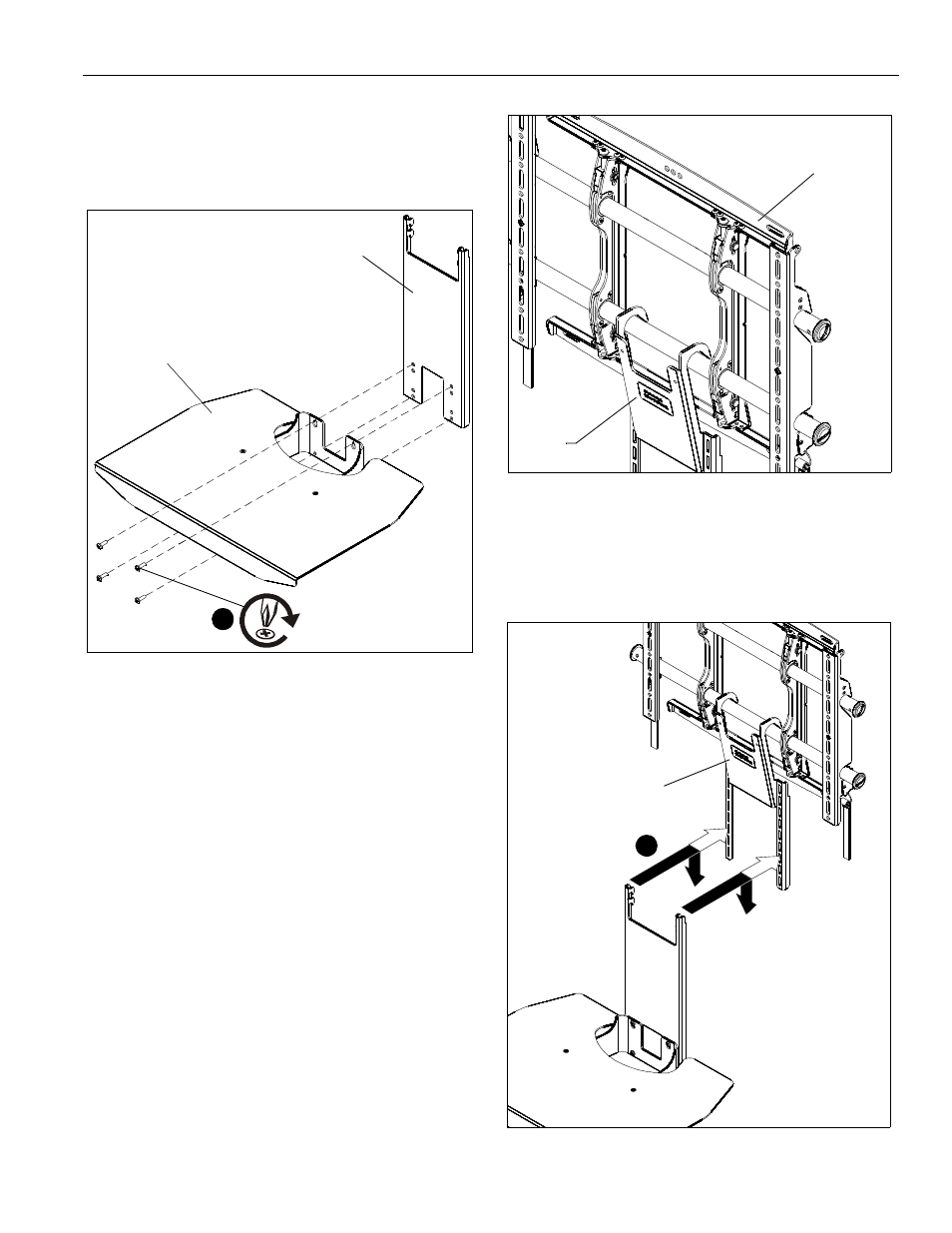

1. Attach lower shelf (B) to hanger bracket (A) using four
10-24 x 5/8" Phillips pan head screws (D). (See Figure 1)
Figure 1
Attaching to Wall Mount
NOTE: The FCS100 may be attached to the wall mount with
the display already in place, or with the display
removed. Proceed to either Installing to Wall Mount
with Display Attached or Installing to Wall Mount
with Display Removed section.
Installing to Wall Mount with Display Attached
1. Pull out bottom of display.
2. From below and behind the display, raise and hang hook
bracket (C) onto lower wall mount rail. (See Figure 2)
Figure 2
3. Hang shelf with hanger bracket onto the hook bracket (C).
(See Figure 3)
NOTE: The shelf with hanger bracket may be adjusted up or
down on the hook bracket (C) in 7/8" increments for a
total height adjustment of up to 6-1/8".
Figure 3
1
(A)
(D) x 4
(B)
(C)
[Display shown removed for clarity]
Wall Mount
(C)
3
