PAC-101/102/103 Installation Instructions
4

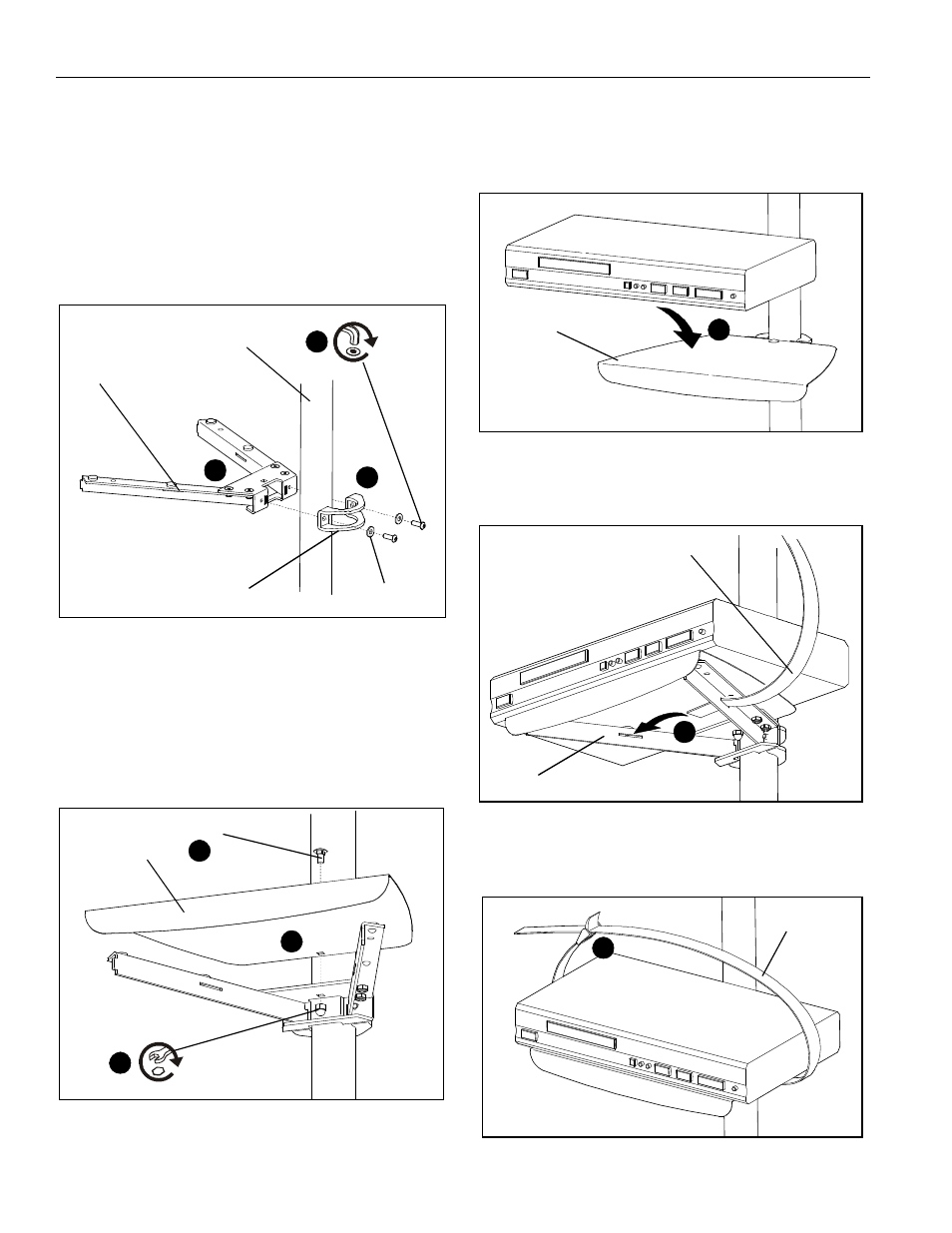

PAC-102 Shelf Base Installation
The PAC-102 is designed to be mounted onto a 1-1/2" NPT
steel pipe.
To install the PAC-102:
1. Place shelf base (B2) in desired mounting location on pole.
2. Align pole mount bracket (H) with shelf base (B2).
3. Secure pole mount bracket (H) to shelf base (B2) using two
flat washers (G) and two button head cap screws (F).
(See Figure 2)
4. Tighten hardware.
Figure 2
Attach Shelf to Shelf Base
To install the shelf to the shelf base on the PAC-101 and
PAC-102:
1. Align square mounting hole in shelf (A) with mounting hole
in top of shelf base (B1 or B2). (See Figure 3)
2. Secure shelf (a) to shelf base (B1 or B2) using one carriage
bolt (C) and one lock nut (D). (See Figure 3)
Figure 3
Installing PAC-103
To install the optional PAC-103 Strap:
1. Place equipment on shelf (A). (See Figure 4)
Figure 4
2. Thread strap (H) through slots in shelf base (B1 or B2).
(See Figure 5)
Figure 5
3. Loop strap (J) over top of equipment and slide strap end into
clasp. (See Figure 6)
Figure 6
(F) x2
(B2) x1
1 1/2" NPT Pole
(G) x2
2
1
3
(H) x1
(A) x1
(D) x2
(C) x2
2
2
1
1 (A) x1
2
(B1 or B2) x1
(J) x1
3
(J) x1
