Installation Instructions PAC-101/102/103
3

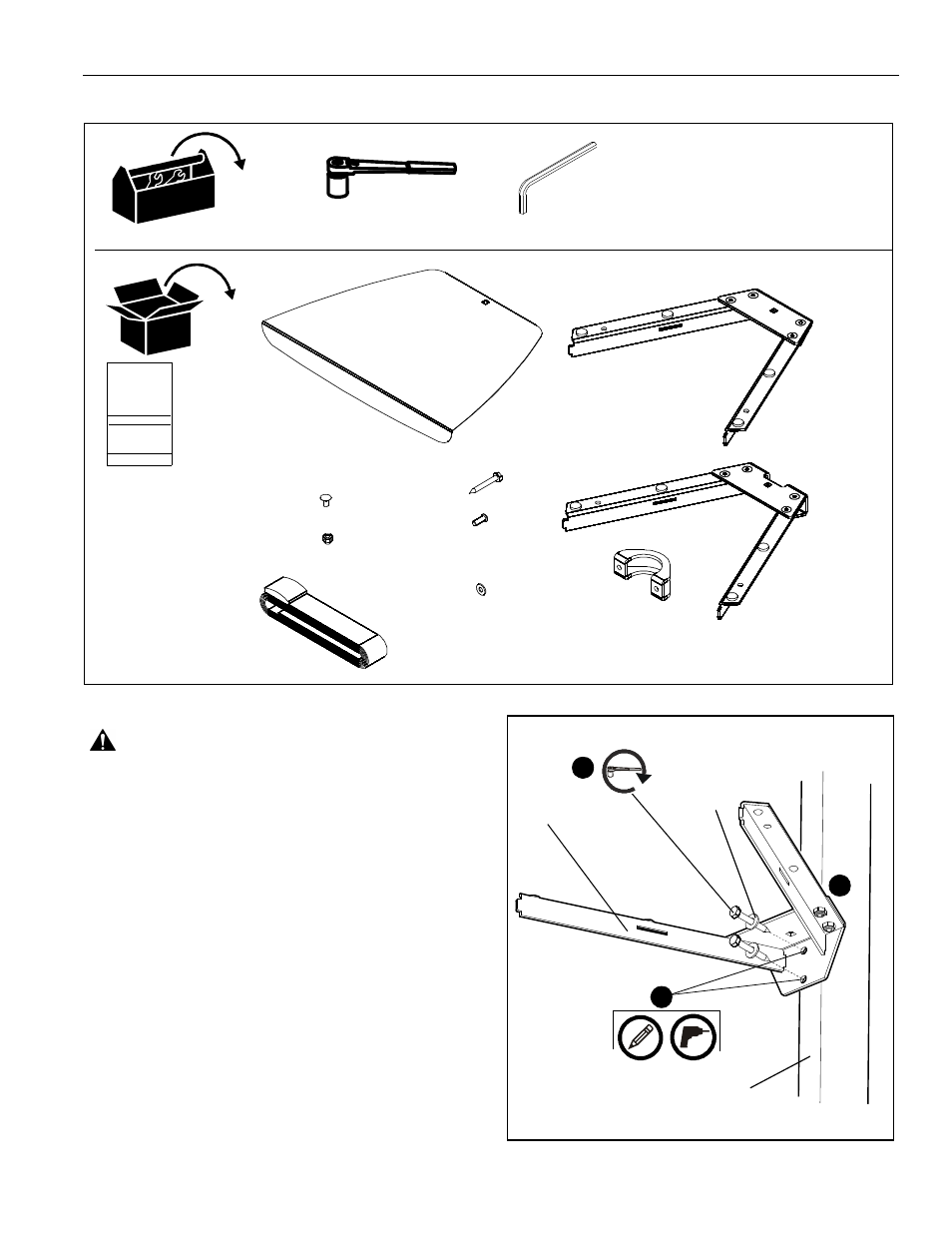

TOOLS REQUIRED FOR INSTALLATION AND PARTS
x1
I/M
J (1) 6’ foot
A (1)
B2 (1)
D (1)
1/4-20
G (2)
1/4"
C (1)
1/4-20 x 1/2"
E (2)
1/4" X 2"
(PAC-102)
B1 (1)
(PAC-101)
F (2)
1/4-20 x 3/4"
(Optional/Sold separately)
H (1)
(PAC-102)
Installation
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! DO NOT substitute
hardware! Use only hardware provided by manufacturer.
Shelf Base Installation
PAC-101 Shelf Base Installation
The PAC-101 is designed to be installed into a wood stud.
To install the PAC-101:
1. Place shelf base (B1) in desired mounting location..
2. Level shelf base. (See Figure 1)
3. Mark and drill two 1/8" pilot holes into stud.
4. Secure shelf base to wood stud using two 1/4" flat washers
(G) and two 1/4" x 2" hex head lag screws (E).(See Figure 1)
Figure 1
(E) x 2
(B1) x 1
Wood Stud
4
1
(G) x 2
3
