KSA1017 Installation Instructions
4
ASSEMBLY AND INSTALLATION
The KSA-1017 Pole Clamp Accessory is used to provide a
means for attaching a desktop or wall mount to a 1-1/2" to 2"
pole.
Existing Mount Preparation
NOTE: The existing mount needs to be modified before
installing the KSA1017.
1. Remove display (if present) from existing mount following
the instructions included with the mount.
2. Loosen button head cap screw securing swing arm to base
on existing mount using the 3/16" hex key (F). (See Figure 1)

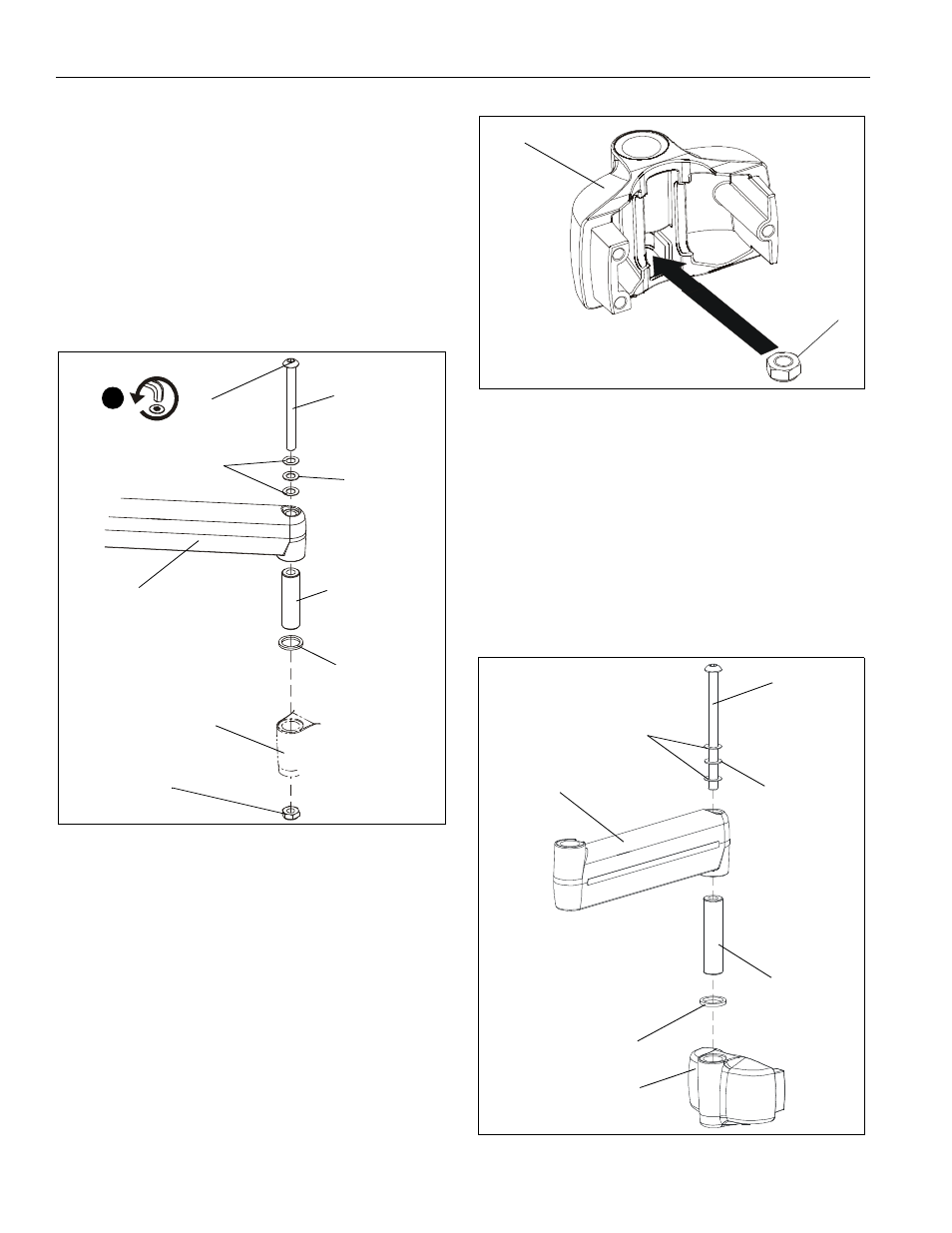

Figure 1
3. Remove and save button head cap screw, one nylon
washer, and two flat washers from swing arm. (See Figure 1)
4. Lift swing arm up and off of pivot pin and set aside for reuse.
(See Figure 1)
5. Remove and save large nylon washer and pivot pin, and
discard nylock nut from existing mount base. (See Figure 1)
Pole Clamp Installation
1. Insert 5/16" nylock nut (D) crown down into pole clamp front.
(See Figure 2)
NOTE: The following steps reuse hardware removed and
saved in the Existing Mount Preparation section.
2. Place large nylon washer into seat in pole clamp front (A).
(See Figure 2)
3. Slide pivot pin through large nylon washer and down into
pole clamp front (A). (See Figure 3)
Figure 2
4. Slide swing arm assembly down onto top of pivot pin.
5. Assemble two flat washers and one nylon washer onto
button head cap screw. (See Figure 3)
6. While holding 5/16" nylock nut (D) previously installed into
pole clamp front (A), slide button head cap screw with
washers through swing arm and down into pole clamp front
(A) until contact with 5/16" nylock nut (D) is made.
7. Secure swing arm to pole clamp front (A) by fastening
button head cap screw into 5/16" nylock nut (D).
NOTE: It may be necessary to move 5/16" nylock nut (D)
slightly in order to allow button head cap screw to
properly seat in nut and allow tightening.
Figure 3
2 x 1
Button head
cap screw
Flat washers
Nylon washer
Swing arm
Pivot pin
Large nylon washer
Existing mount base
Nylock nut
(A)
(D)
(A)
Large nylon washer
Pivot pin
Swing arm
Flat washers
Nylon washer
Button head
cap screw
