Installation Instructions KSA-1023
7

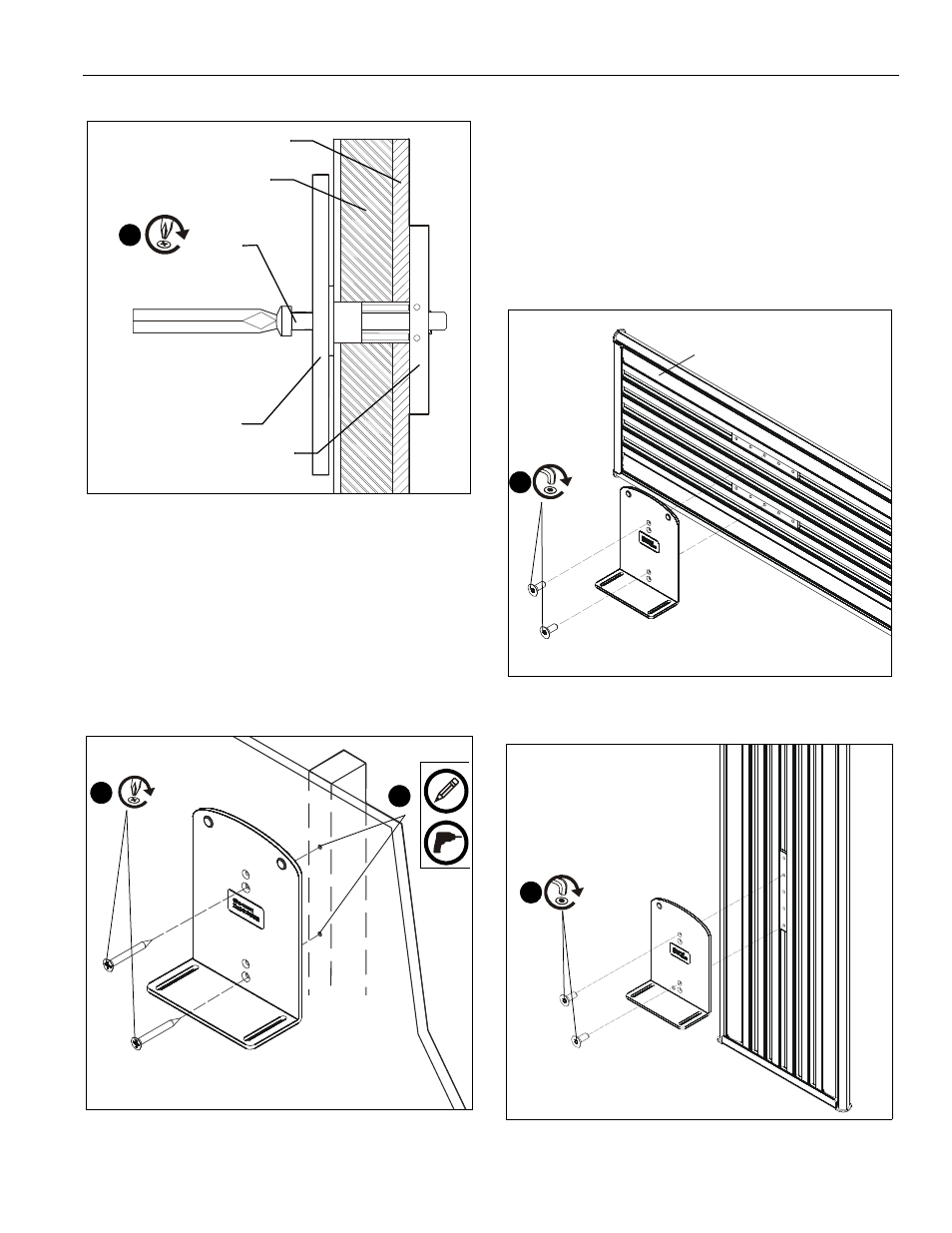

Figure 6
Attach to Wall Using Wood Studs
1. Determine location for mount keeping in mind CPU size and
safety requirements.
2. Using the CPU wall mount plate (A) as a template, mark and
then drill two 7/64" diameter pilot holes through the lower
holes of CPU wall mount plate into wall structure. (See
Figure 7)
3. Install two #12 x 2 1/2" Phillips flat wood screws (G) through
CPU Wall Mount Plate and into holes. (See Figure 7)
Figure 7
Attach to Wall Track Accessory
NOTE: The KSA-1023 CPU Wall Mount can be mounted on the
KSA-1022 Wall Track Accessory. Refer to KSA-1022
installation manual for specific weight limits for the
accessory.
1. Attach wall track accessory to wall according to wall track
accessory installation manual.
2. Install two #10-24 x 1/2" flat head cap screw (F) through
upper holes on CPU wall mount plate (A) into holes on wall
track accessory brackets. (See Figures 8 and 9)
Figure 8
Figure 9
Steel Stud
Drywall
Anchor Metal Channel
(SIDE VIEW)
(E) x 2
12
(A)
(G) x 2 3
2
(F) x 2 2
(horizontal wall track)
Wall track accessory
(not included)
(vertical wall track)
(F) x 2 2
