Assembly And Installation
Attach to Wall Using Steel Studs or Drywall
After determining the site meets the installation requirements:

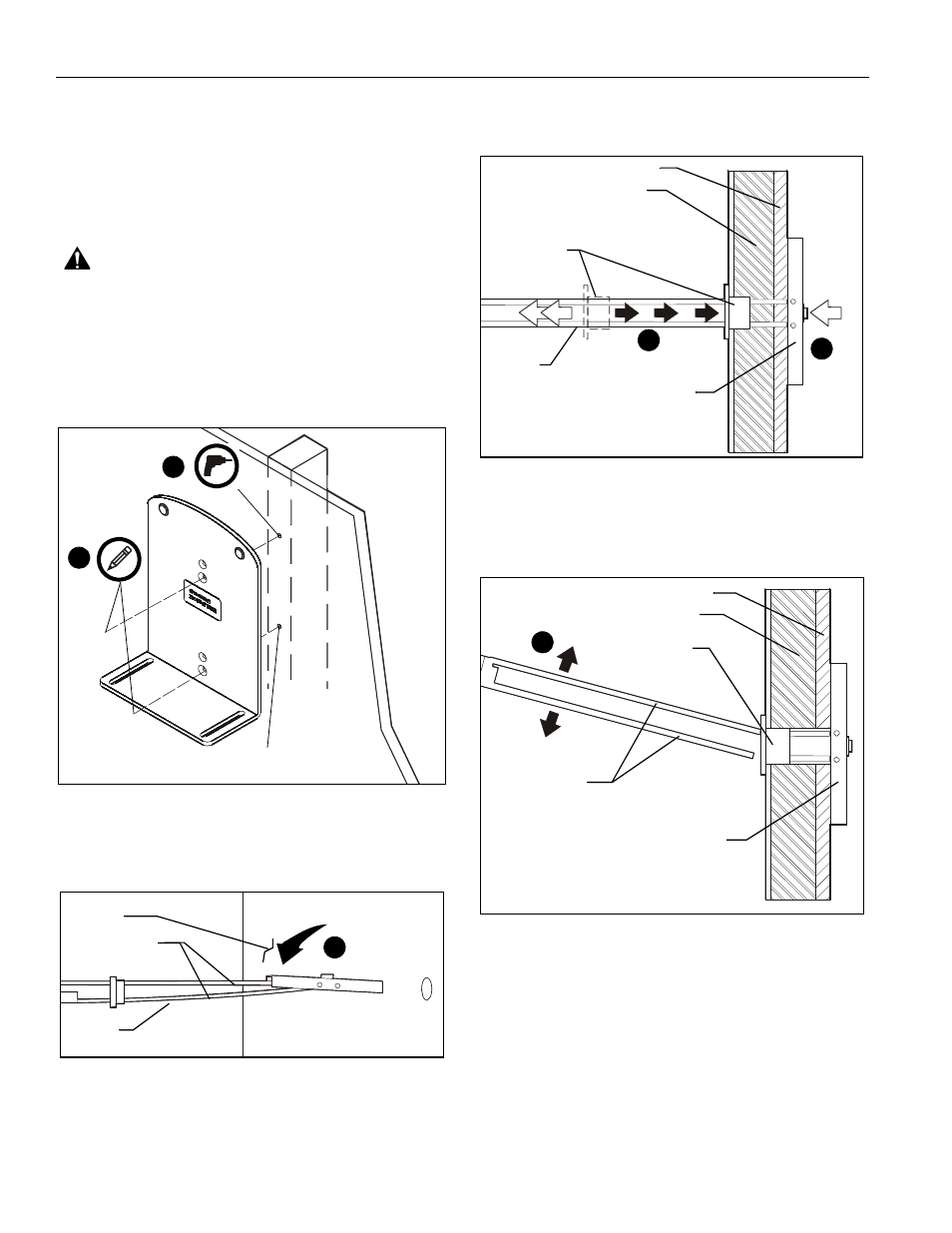

1. Identify desired mounting location on wall.
2. Using a stud finder or similar method locate stud.
3. Align mounting holes in CPU wall plate (A) with stud making
sure mounting holes are centered on stud. (See Figure 2)
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT!
4. Mark location of two mounting holes on wall using the wall
plate as a template. Mark holes where the top and bottom
holes of the bracket will be connected. (See Figure 2)
5. Drill two 1/2" holes. (See Figure 2)
Figure 2
6. Hold metal channel on anchor (D) flat alongside plastic
straps and slide channel through hole. (See Figure 3)
Figure 3
7. Holding plastic straps on anchor (D), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud. (See Figure
4)
8. Slide plastic cap on anchor (D) towards wall until flange of
cap is flush with wall. (See Figure 4)
Figure 4
9. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 5)
10. Repeat steps 6 through 9 for remaining mounting hole.
Figure 5
11. Place CPU mounting plate (A) over anchors and align
mounting holes in display mount with holes in anchors. (See
Figure 6)
12. Insert 1/4-20 x 1-1/2" Phillips flat machine screw (E) into
mounting hole on CPU mounting plate (A) and into anchor
(D) and tighten until flush against mounting plate. DO NOT
overtighten! (See Figure 6)
13. Repeat steps 11 through 13 for remaining mounting hole.
4
5
must be centered on stud
(D) x 2
Drywall
Plastic Straps
6
Plastic Cap
Steel Stud
Drywall
Anchor Metal Channel
(Side View)
8
(D) x 2
7
9
Plastic Straps
Steel Stud
Drywall
Anchor Metal Channel
Plastic Cap
(SIDE VIEW)
