CHIEF KTA1005 Series User Manual
Page 5
Installation Instructions
KTA1005
5

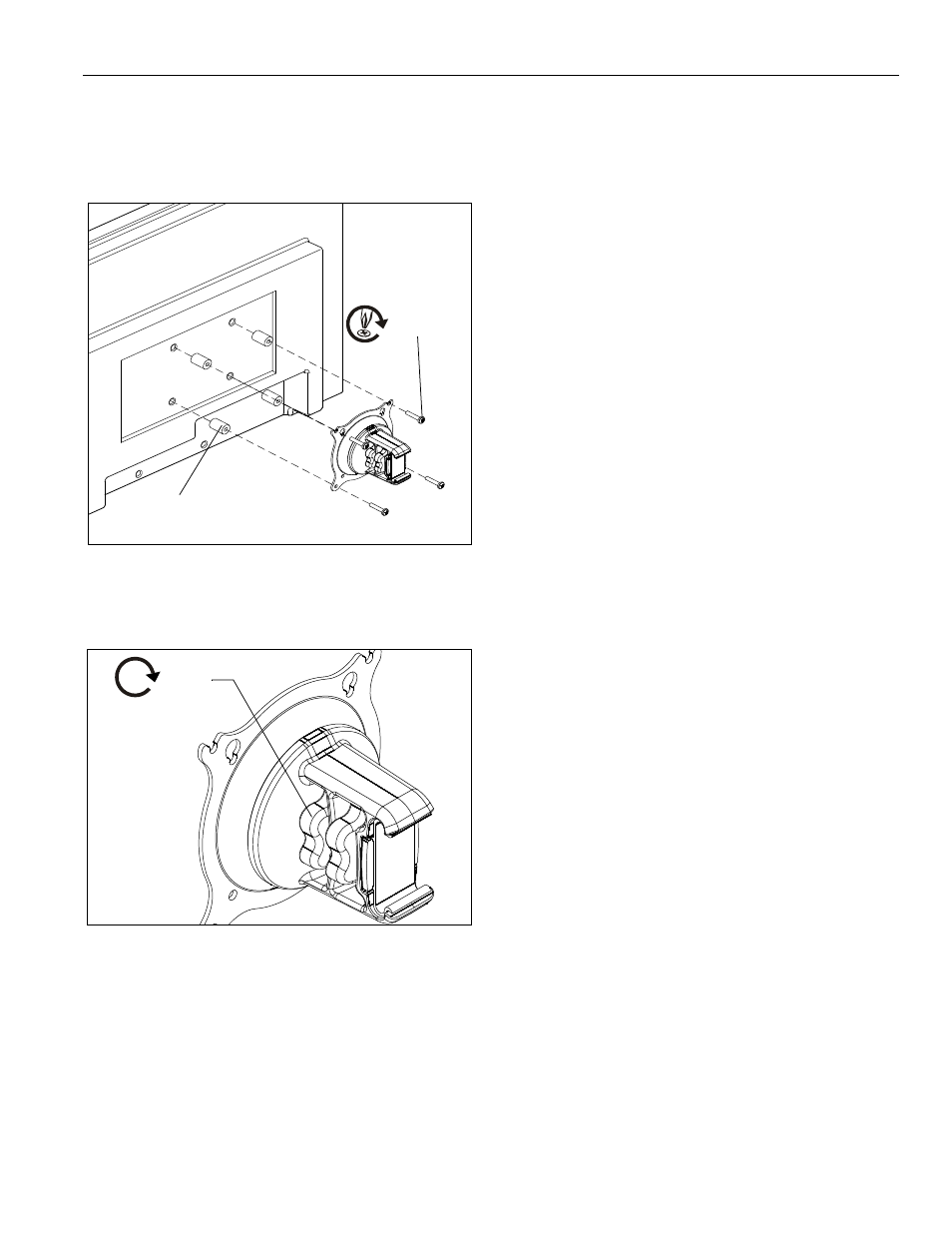

Display Installation - Recessed Mount Display
1.
Secure display to Centris head using four 3/8" (E) or 3/4" (F)
nylon spacers, and four M4 x 20mm (C) or four M4 x 30mm
(D) Phillips pan head screws into four mounting holes in
display back. (See Figure 4)
Figure 4
Adjustments
1.
Tighten the outer knob to adjust pitch tension.(See Figure 5)
Figure 5
(C or D) x 4
(E or F) x 4
Adjust pitch
tension
