Installation Instructions XVAU
13

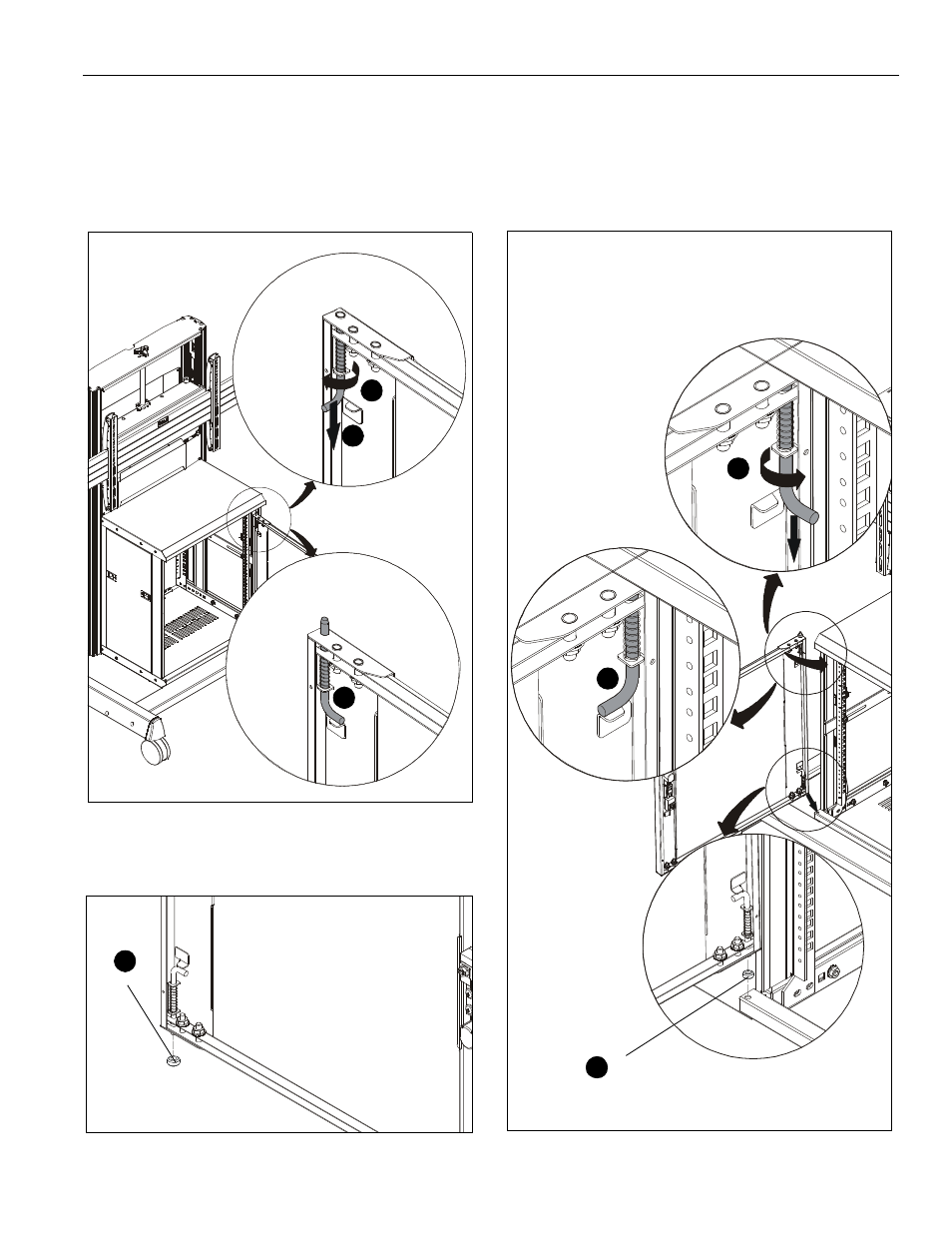

Reverse Rack Box Door
1. Turn upper door pin to release from locking tab and pull
down to release door from rack and lift door from rack
frame. (See Figure 25)
2. Release upper pin and turn it back to secure it under the
locking tab. (See Figure 25)
Figure 25
3. Remove spacer from bottom door pin. (See Figure 26)
Figure 26
4. Fit spacer onto bottom pin and fit bottom pin into bottom
mounting hole in rack. (See Figure 27)
5. Turn upper pin to release from locking tab and pull down. Fit
pin into upper mounting hole in rack. (See Figure 27)
6. Release pin and turn pin to secure it under locking tab. (See
Figure 27)
Figure 27
1
2
1
spacer
3
spacer 4
5
6
