2. Always lock the wheels when the cart is not moving.
3. Check and tighten the hex nuts on the casters occasionally.
(See Figure 21) These should be checked especially after
use on uneven ground.
IMPORTANT ! : Do NOT overtighten nuts!

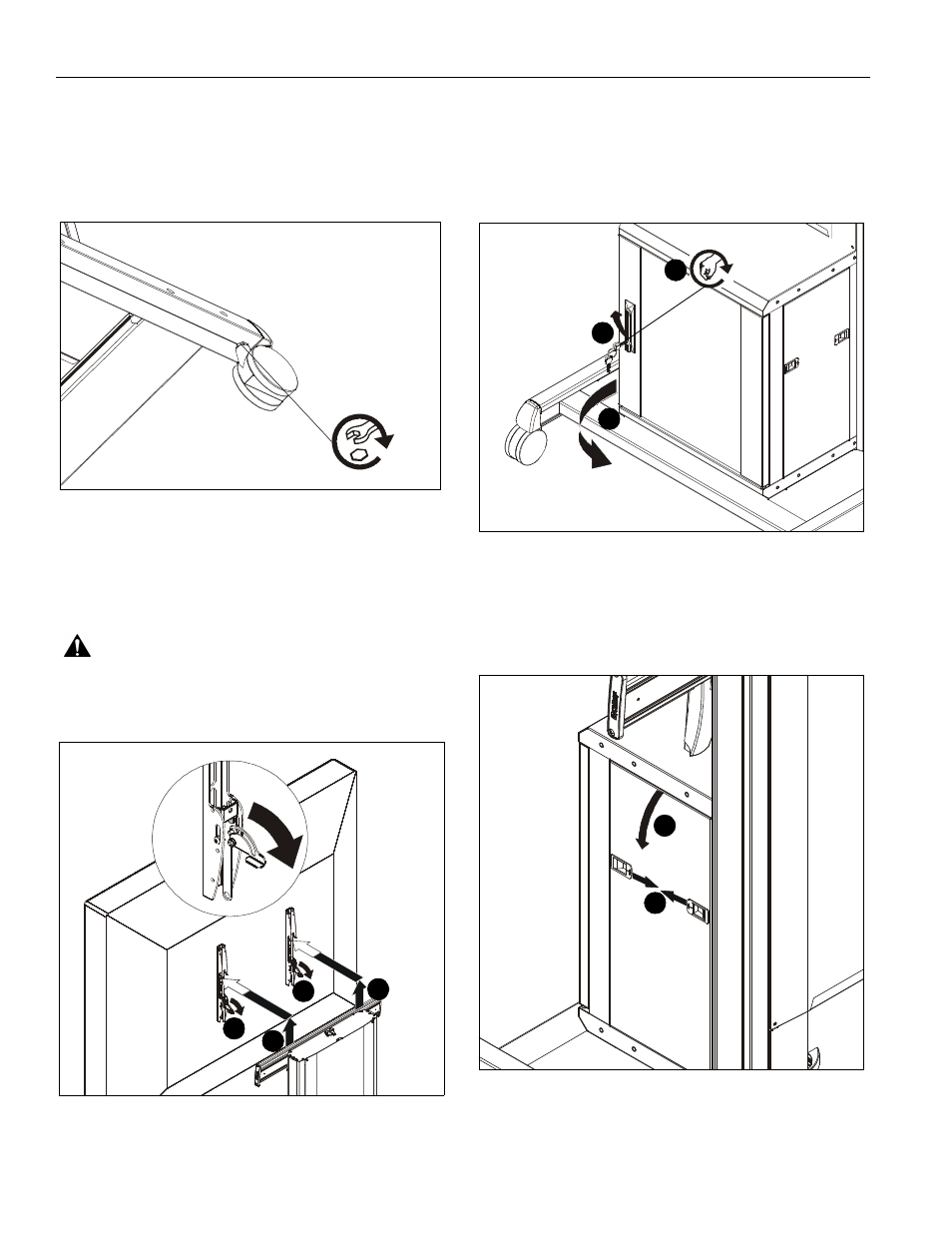

Figure 21
Removing Display from Cart
1. Remove any padlocks from interface uprights if installed.
2. Position latches on interface uprights so that they are in the
“open” position. (See Figure 22)
WARNING: DISPLAYS MAY WEIGH IN EXCESS OF 40
LBS! Always use two people and proper lifting techniques
when installing or positioning display on cart.
3. Carefully lift display from cart. (See Figure 22)
Figure 22
Opening Rack Box Doors
Front Door
1. Insert key into handle keyhole and turn. (See Figure 23)
2. Lift up handle and turn to free inside latch. (See Figure 23)
3. Pull door open. (See Figure 23)
Figure 23
Side Doors
1. Push two buckles inside toward each other. (See Figure 24)
2. Pull door open from the top. (See Figure 24)
Figure 24
