XSM/XTM Series Installation Instructions
10
XTM Model
NOTE: Proceed to Step 8 for XSM Model instructions.
3. Hang top hook of interface brackets onto the top bar of the
mount. (See Figure 9)
NOTE: The screen initially installs into the "kickstand mode" to
allow easy cable access.
4. Slide screen and bars to desired viewing position.
5. Route cables between wall and bars.
CAUTION: PINCH POINTS! Keep fingers, hands and
cables out of pinch point areas.
6. Pull downward on the pull straps and swing inward toward
wall, latching interface brackets to lower bar and locking
bottom of screen to the mount. (See Figure 9)
7. Proceed to Adjusting Roll/Height of Wall Brackets
section.

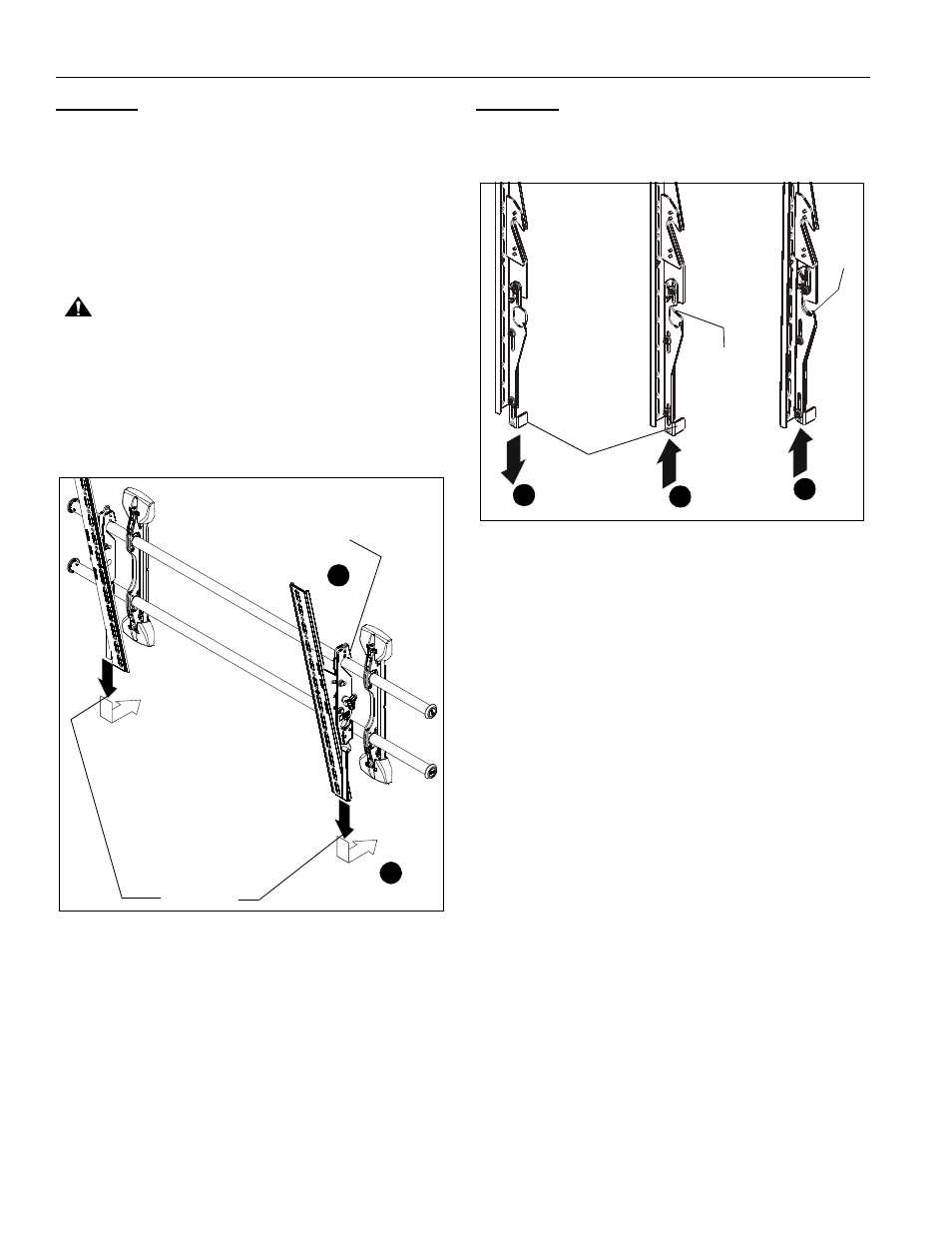

Figure 9
XSM Model
8. Push interface bracket tab all the way down so that the
lower mounting slot is blocked. (See Figure 10)
Figure 10
9. Hang the top hook of interface brackets onto the top bar of
the mount. The bottom of the screen will be away from the
wall.
10. Move screen towards the wall by pulling display bottom
away from wall and pushing the interface bracket tabs up
one notch to the detent which you will be able to feel
(approximately half way up).
11. Push bottom of display toward the wall bracket so that lower
latch on interface bracket surrounds lower bar of wall
mount.
12. Raise interface brackets tabs all the way to secure the
brackets onto the wall mount. (See Figure 10)
3
6
Top
Hook
(Screen not shown for clarity)
Pull straps
Latch
open
Latch
closed
Interface
bracket
tab
8
12
10
