CHIEF PCM Series - Manual (Page 4)

PCM Series Installation Instructions
4

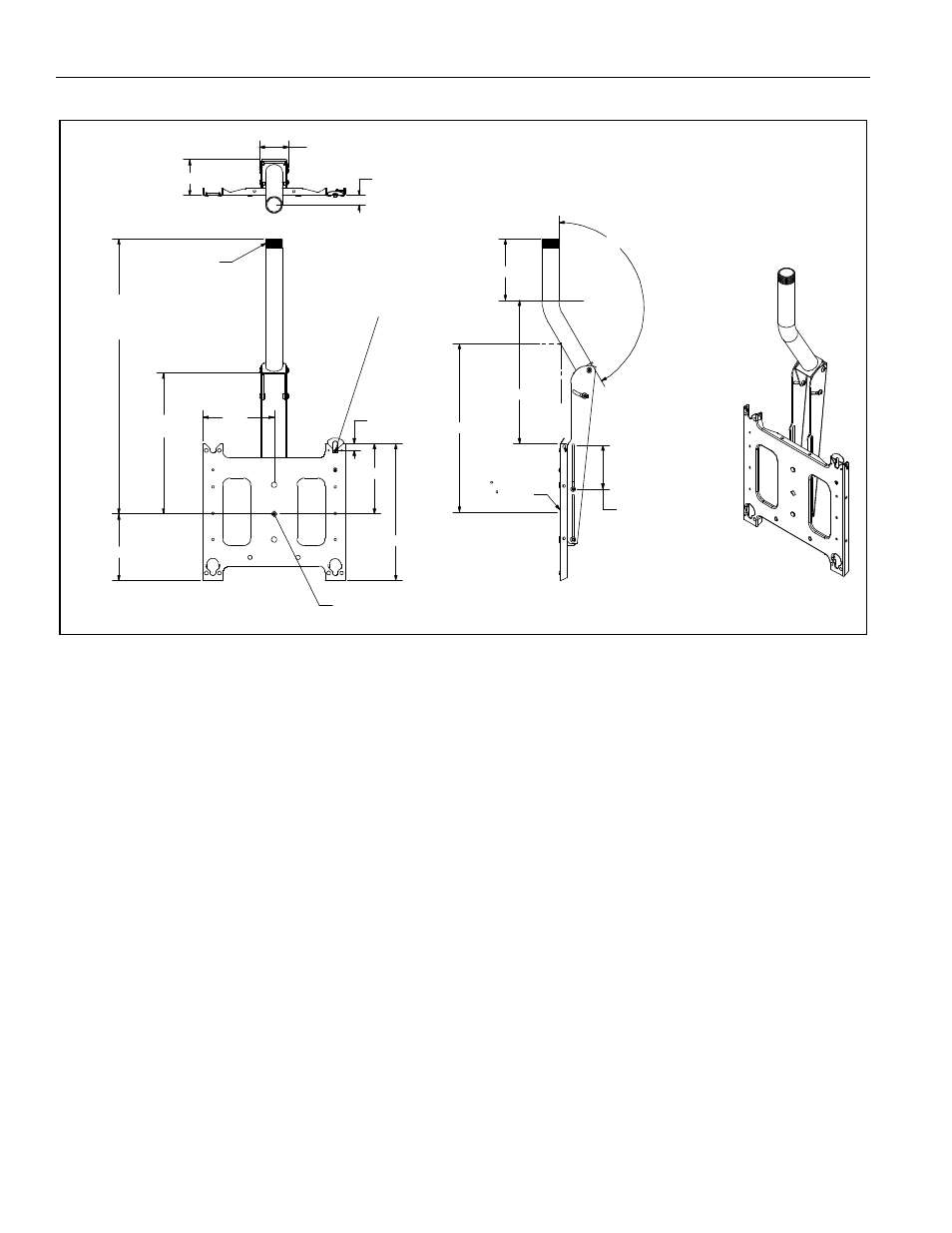

DIMENSIONS
19.2 5
4.09 1.07
3.36
FACE TILTS
5 UP
25 DOWN
150°
16.3 9
7.00
5.0 0
VERTICAL
ADJUSTMENT
APPROXIMATE
MALE
1.5" NPT
CENTER OF DISPLAY
TOP MOUNTING BUTTON ON
PSB-XXXX DRAWING GOES HE RE
8.0 2
8.14
26.42 MIN.
OF DISPLAY
TO APPROX. CENTER
11.10 MIN.
31.41 MAX .
16.10 MAX .
7.61
.78
15.6 3
MAX DISPLAY HEIGH T: 38.5"
NOTE: PSBU INTERFACE BRACKET
NOT SHOWN. THE PSBU INTERFACE
BRACKET WILL ADD 1” IN DEPTH
AND MAY AFFECT LOCATION OF
THE DISPLAY ON THE MOUNT.
DIMENSIONS: INCHES
