O I Installing the Light Kit on Fans With Non-Removable Switch Housing and No
Center Hole
1. Uninstall the two screws from the switch housing.
2. In the light kit fitter, ensure that the two black wires connected with a wire
plug are coiled into the top cavity of the light kit fitter. Remove the wire connectors from
the two wires in the switch housing labeled “Connect Light Here” or “For Light Use.” One
wire is white and the other wire is black/white striped.
Connect the black/white striped wire from the switch housing to the black wire from the
light kit. Connect the white wire from the switch housing to the white wire from the light
kit. Secure all wire connections using wire connectors.
To connect the wires, hold the bare metal leads together and place a wire connector over
them, then twist the wire connector clockwise until tight.
CAUTION: Be sure no bare metal wires or wire strands are visible after making
the connections.
3. Attach the light kit to the switch housing using the two enclosed long screws and the
lock washers on the red tag. Screw the light kit into the two tabs in the switch housing.
Securely tighten the two screws.
WARNING: Improper installation could cause the light fixture to fall, or result
in electrical shock or personal injury.
4. Go to the instructions for Installing the Bulbs, Chains, and Globe.

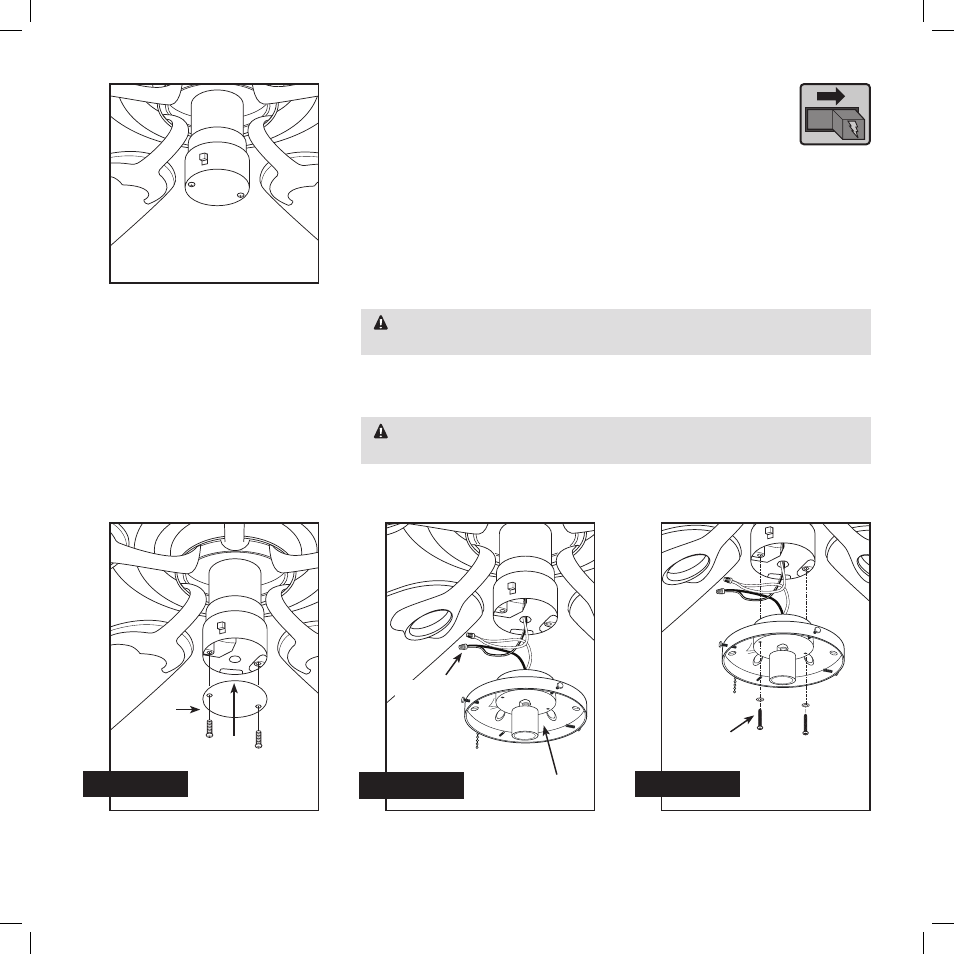

Step 1 Step 2 Step 3
Hunter original and non-
removable switch housing,
no center hole
Switch
Housing
Plate
Wires
and Wire
Connectors
Light Kit
Fitter
Enclosed
Screw and
Washer
Screw
43519-01 r050807
