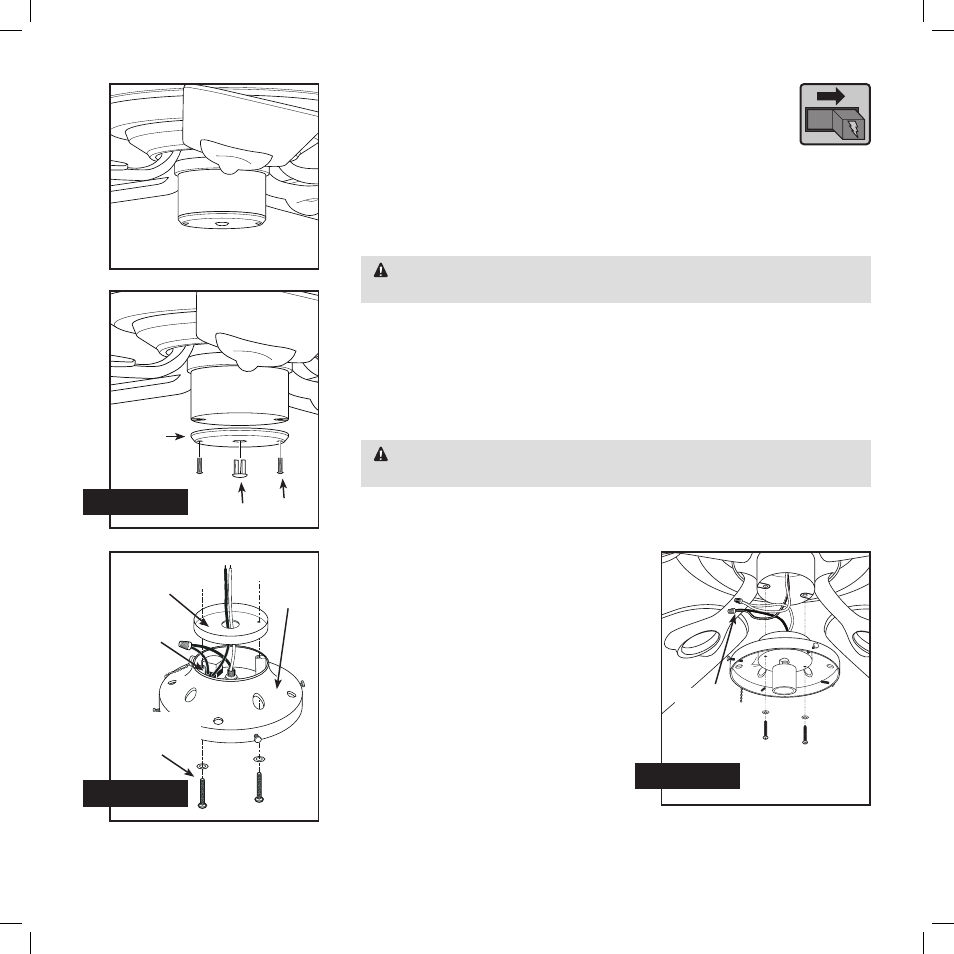

O I Installing the Light Kit on Fans With Non-Removable Switch Housing
1. Uninstall the two screws from the switch housing cover.
2. Remove the plug or screw from the center of the switch housing cover.
3. Thread the switch housing cover onto the wires from the light kit. Coil the
two black wires connected with a wire plug into the top cavity of the light kit fitter. Align
the channels for screws in the light kit fitter with the screw holes in the switch housing
cover.
4. Attach the light kit to the switch housing cover using the two enclosed long attachment
screws and the lock washers on the red tag. Securely tighten the two screws.
WARNING: Improper installation could cause the light fixture to fall, or result
in electrical shock or personal injury.
5. Remove the wire connectors from the two wires in the switch housing labeled “Connect
Light Here” or “For Light Use.” One wire is white and the other wire is black/white striped.
Connect the black/white striped wire from the switch housing to the black wire from the
light kit. Connect the white wire from the switch housing to the white wire from the light
kit. Secure all wire connections using wire connectors.
To connect the wires, hold the bare metal leads together and place a wire connector over
them, then twist the wire connector clockwise until tight.
CAUTION: Be sure no bare metal wires or wire strands are visible after making
the connections.
6. Align the screws in the switch housing cover-light kit assembly with the screw holes in
the switch housing. Tighten the screws.
7. Go to the instructions for Installing the Bulbs, Chains, and Globe.
Steps 1–2
Non-Removable Switch Housing
Switch
Housing
Cover
Plug
Steps 5–6
Wires
and Wire
Connectors
Screw
43519-01 r050807
Steps 3–4
Light Kit
Fitter
Switch
Housing Cover
Enclosed Screws
and Lock
Washers
Coiled Wires
