Installing the Light Kit on Fans With Removable Switch Housing
1. Unscrew the three screws from the upper switch housing. Disconnect the
9-pin plug connectors. Remove the lower switch housing.
2. Push the plug from inside the lower switch housing to remove the plug and
switch housing cap. Unscrew the two attachment screws on the bottom of the switch
housing.
NOTE: Save the plug button and switch housing cap should you choose to remove the
light fixture in the future.
3. Feed the two loose wires from the light kit up through the center hole in the lower
switch housing. Coil the two black wires connected with a wire plug into the top cavity
of the light kit fitter.
CAUTION: If your fan is operated by remote control, take care not to damage
the small components on the circuit board inside the housing.
Align the channels for screws in the light kit with the screw holes in the lower switch
housing.
Attach the light kit to the lower switch housing using the two enclosed long screws and
the lock washers on the red tag. Securely tighten the two screws.
WARNING: Improper installation could cause the light fixture to fall, or result
in electrical shock or personal injury.
4. Remove the wire connectors from the two wires in the switch housing labeled “Connect
Light Here” or “For Light Use.”
Connect the black/white striped wire from the switch housing to the black wire from the
light kit. Connect the white wire from the switch housing to the white wire from the light
kit. Secure all wire connections using wire connectors.
To connect the wires, hold the bare metal leads together and place a wire connector over
them, then twist the wire connector clockwise until tight.
CAUTION: Be sure no bare metal wires or wire strands are visible after making
the connections.
5. Reconnect the 9-pin plug connector.
6. Go to the instructions for Installing the
Bulbs, Chains, and Globe.
O I

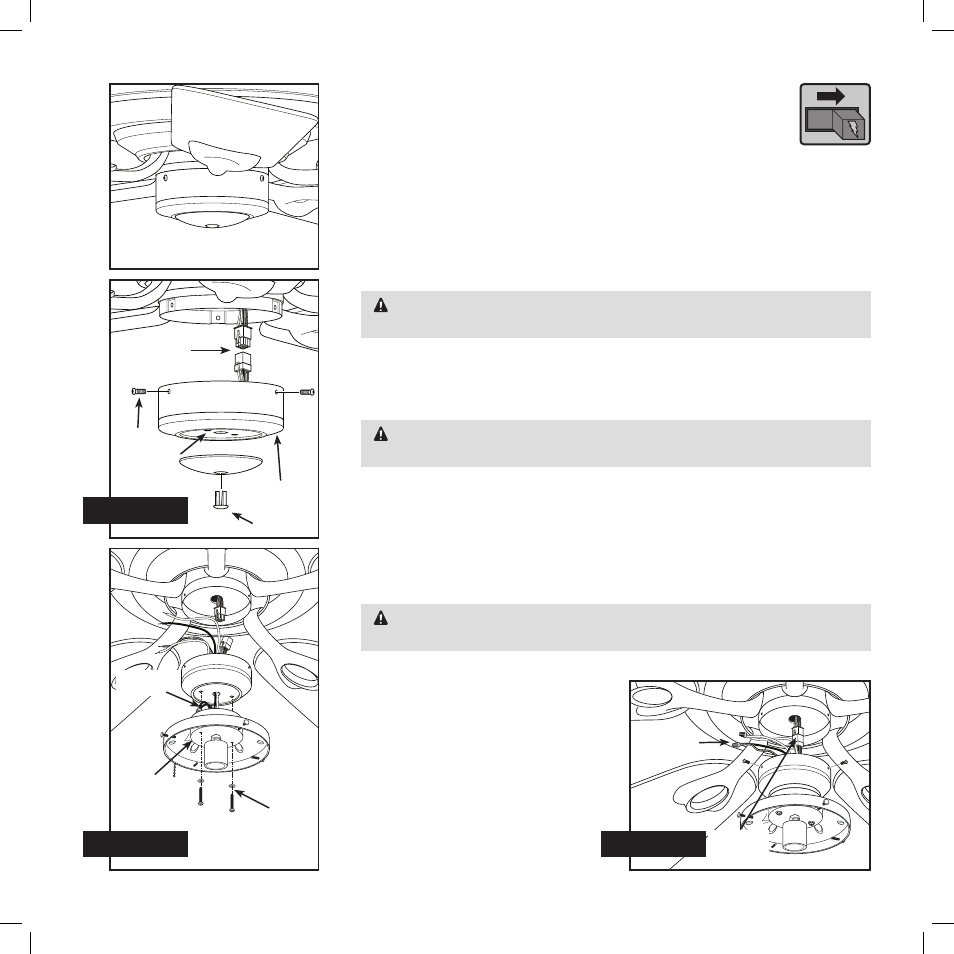

Removable Switch Housing
9-Pin Plug
Connector
Lower Switch
Housing
Attachment
Screw
Plug
Enclosed
Screw and
Lockwasher
Wires
and Wire
Connectors
9-Pin Plug
Connector
43519-01 r050807
Steps 4–5
Steps 1–2
Step 3
Screw
Coiled Wires
Light Kit
Fitter
