7
43526-01 • 12/30/09 • Hunter Fan Company

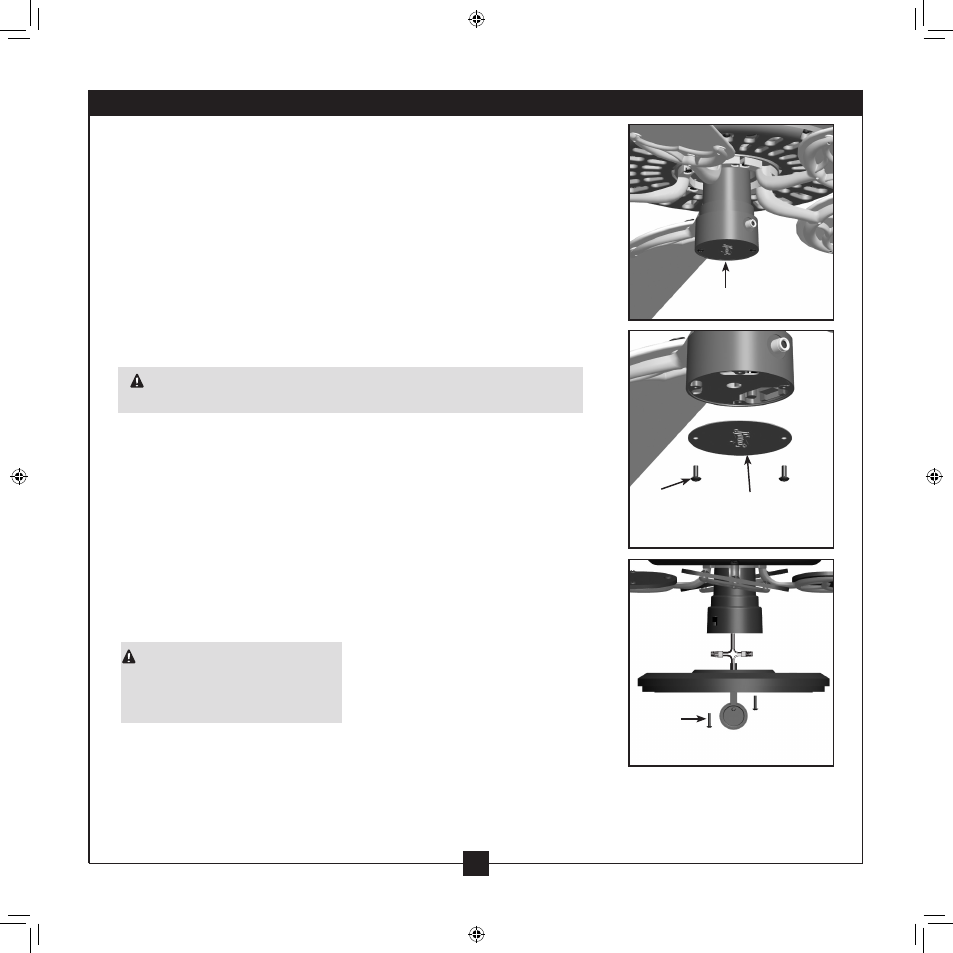

1. Uninstall the two screws from the switch housing plate.
NOTE: Save the switch housing cap should you choose to remove the light
fixture in the future.
2. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black wire with a white stripe.
To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the black wire with a white stripe from the switch housing to
the black wire from the light kit. Connect the white wire from the switch
housing to the white wire from the light kit. Secure all wire connections
using wire connectors.
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections.
3. Ensure that the gasket is resting on the light kit mounting plate. Attach the
light kit and to the switch housing using the included screws and the lock
washers on the red tag.
4. Go to the instructions for Installing the Bulb and Globe.
Switch
Housing
Plate
Screw
WARNING: Improper installation
could cause the light fixture to
fall, or result in electrical shock or
personal injury.
Step 1
Hunter Original
Screw and
Washer
Steps 2-3
3 • Installing the Light Kit on the Hunter Original
