1. Unscrew the three screws from the upper switch housing. Disconnect
the 9-pin plug connectors. Remove the lower switch housing.
2. Push the plug button from inside the lower switch housing to remove
the plug button and switch housing cap.
NOTE: Save the plug button and switch housing cap should you
choose to remove the light fixture in the future.
3. Remove the nut and washer from the threaded rod on the top of the
light kit.
4. Ensure the gasket is in place on top of the light kit. Feed the two wires
from the light kit up through the center hole in the gasket and the
lower switch housing.
5. Screw the lower switch housing onto the threaded rod on the light
kit until you feel resistance. Then, unscrew the lower switch housing
slightly to align the holes in the light kit and the gasket with the screw
holes of the lower switch housing.
6. Install the nut and washer onto the threaded rod from the light kit to
secure the lower switch housing onto the light kit.
7. Finish attaching the light kit to the lower switch housing using the
included screws and the lock washers on the red tag. The gasket
should now be sandwiched securely between the light kit assembly
and the switch housing assembly.
WARNING: Improper installation could cause the light fixture to fall.

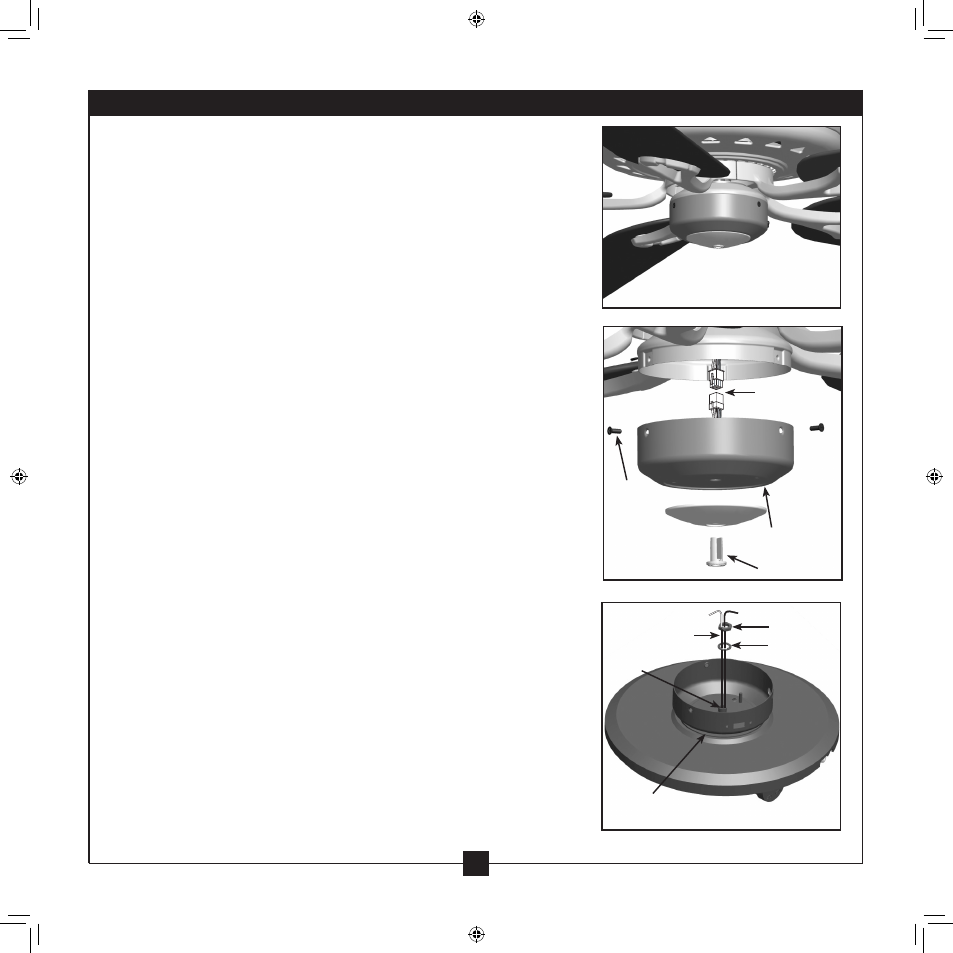

Removable Switch Housing
9-Pin Plug
Connector
Lower Switch
Housing
Plug Button
Screw
Steps 1-2
Washer
Gasket
Wires
Threaded
Rod
Nut
Step 6
1 • Installing the Light Kit on Fans With Removable Switch Housings
