1. Uninstall the two attachment screws from the switch housing cover.
2. Remove the plug or screw from the center of the switch housing cover.
3. Ensure the gasket is in place on the light kit mounting plate. Remove the

nut and washer from the threaded rod on the top of the light kit.

4. Thread the switch housing cover onto the threaded rod from the light kit

until you feel resistance. The gasket should now be sandwiched securely
between the light kit and the switch housing cover. Then, unscrew the
switch housing cover slightly until the holes in the switch housing, gasket,
and switch housing cover are all aligned.

5. Install the nut and washer onto the threaded rod from the light kit to

secure the switch housing cover onto the light kit.

6. Remove the wire connectors from the two wires in the switch housing

labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black with a white stripe.

To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.

Connect the black wire with a white stripe from the switch housing to
the black wire from the light kit. Connect the white wire from the switch
housing to the white wire from the light kit. Secure all wire connections
using wire connectors previously removed.

7. Attach the light kit and switch housing cover to the switch housing using

the included screws and the lock washers on the red tag.

8. Go to the instructions for Installing the

Bulb and Globe.

CAUTION: Be sure no bare metal

wires or wire strands are visible

after making the connections.

WARNING: Improper installation

could cause the light fixture to fall.

Switch

Housing

Cover

Plug

Non-Removable Switch

Housing

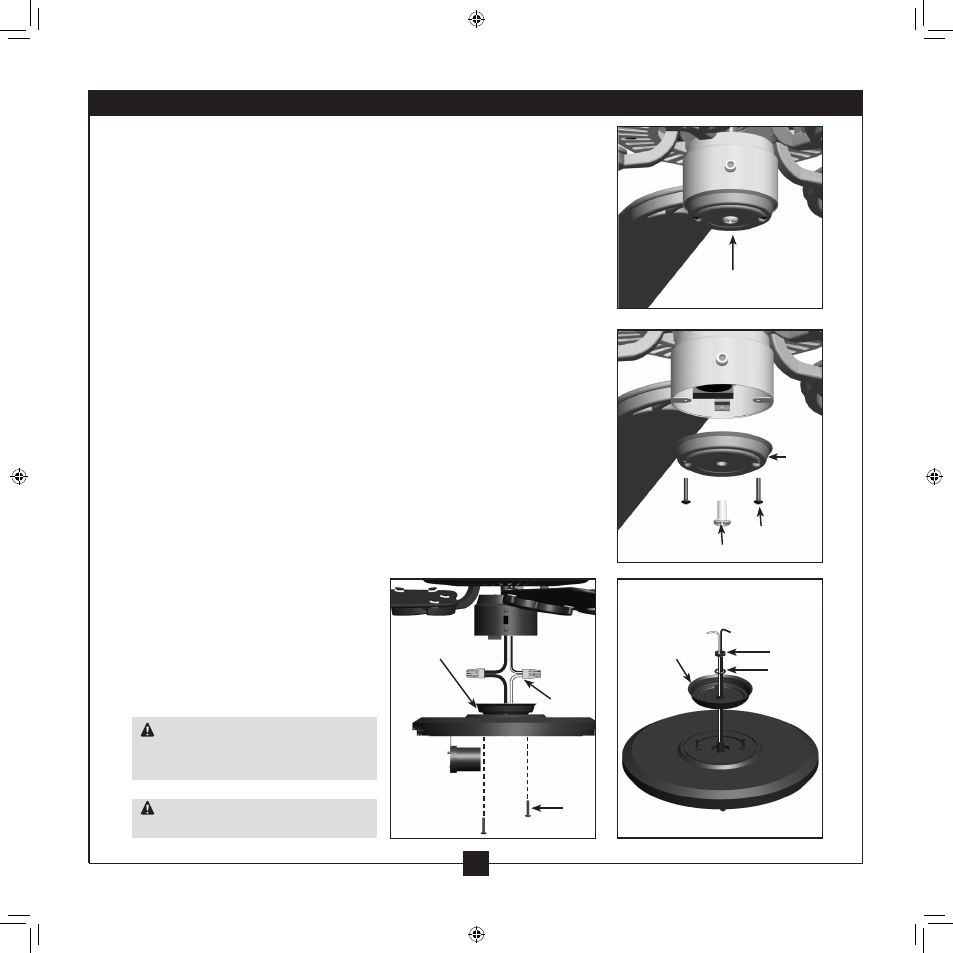

Steps 1-2

Switch

Housing

Cover

Nut

Washer

Wires

and Wire

connectors

Attachment

Screw

Switch

Housing

Cover and

Gasket

Step 6

Steps 3-5

2 • Installing the Light Kit on Fans With Non-Removable Switch Housing
