SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
March 2008

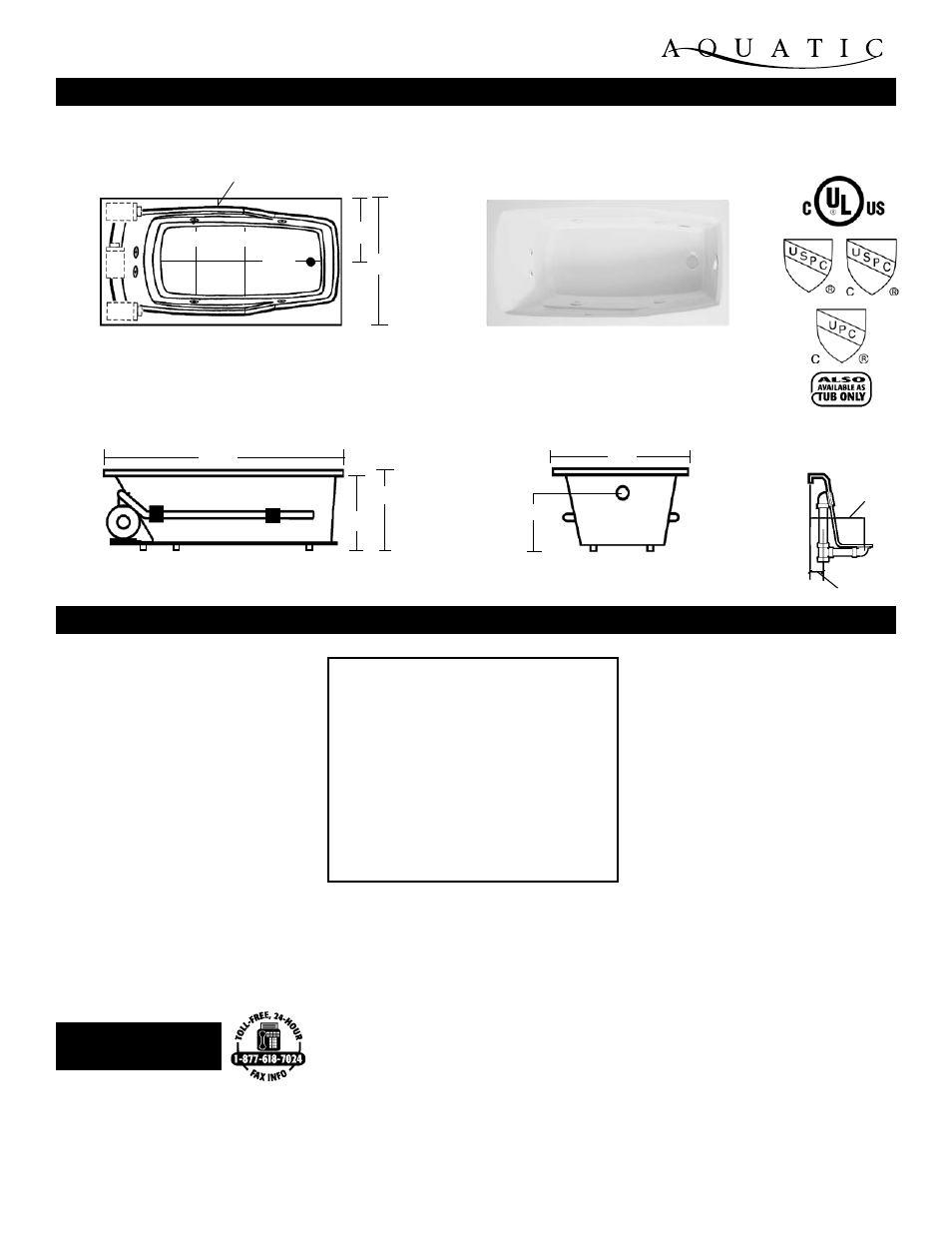

Rough-In Plumbing
Measurements
SymPhONy 15
SymPhONy SErIES
Model # AISe6030SY / AISe6030SYTo
GeneRal SPecIfIcatIonS:
Tub Size 59 1/2” x 30” x 20 1/4”
151 cm x 76 cm x 51 cm
Bathing Well 39 1/2” long
17 1/4” wide
18 5/8” interior depth
Maximum Water Depth 12 1/2”
Shipping Weight
144 lbs. / 65 kg
Tub Weight Filled 480 lbs. / 218 kg
Tub Only Weight 105 lbs. / 48 kg
Gallons to Overflow 45 gal. / 170 L
Gallons to Operate 41 gal. / 155 L
electRIcal SPecIfIcatIonS:
Pump .80 HP; 5.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
6 Hydrotherapy Jets including:
- 2 Spinning Back Jets
- 4 Directional Jets
aquatic Quality features:
- .80 HP Run-Dry Pump
- Bath-Side On/Off Air Button
-
”Quiet Pad” Anti-Vibration Pump Mount for Quiet Pump Operation
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Color Matched Trim and Jets (Select Colors)
- Durable, easy to Clean, Lucite
® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
Ul and IaPMo listed, factory tested
limited 10 Year Warranty
StandaRd eQUIPMent:
•
Comfort Pillow--Oval or Rectangle
•
Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
•
3-T Integral Tiling Flange, 4-T Integral Tiling Flange
• Optional Pump Location
•
Color Matched Acrylic Skirt
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal eQUIPMent:
fax-on-demand
document # 1283
8 1/4”
2”
17”
30”
18 1/2”
20 1/4”
59 1/2”
30”
15”
Deck Width
2”
17” 17 1/4”
39 1/2”
2
3
1
