Hunter 59031 48 Fantasy Flyer - Manual (Page 11)

11
42813-01 • 11/27/13 Hunter Fan Company

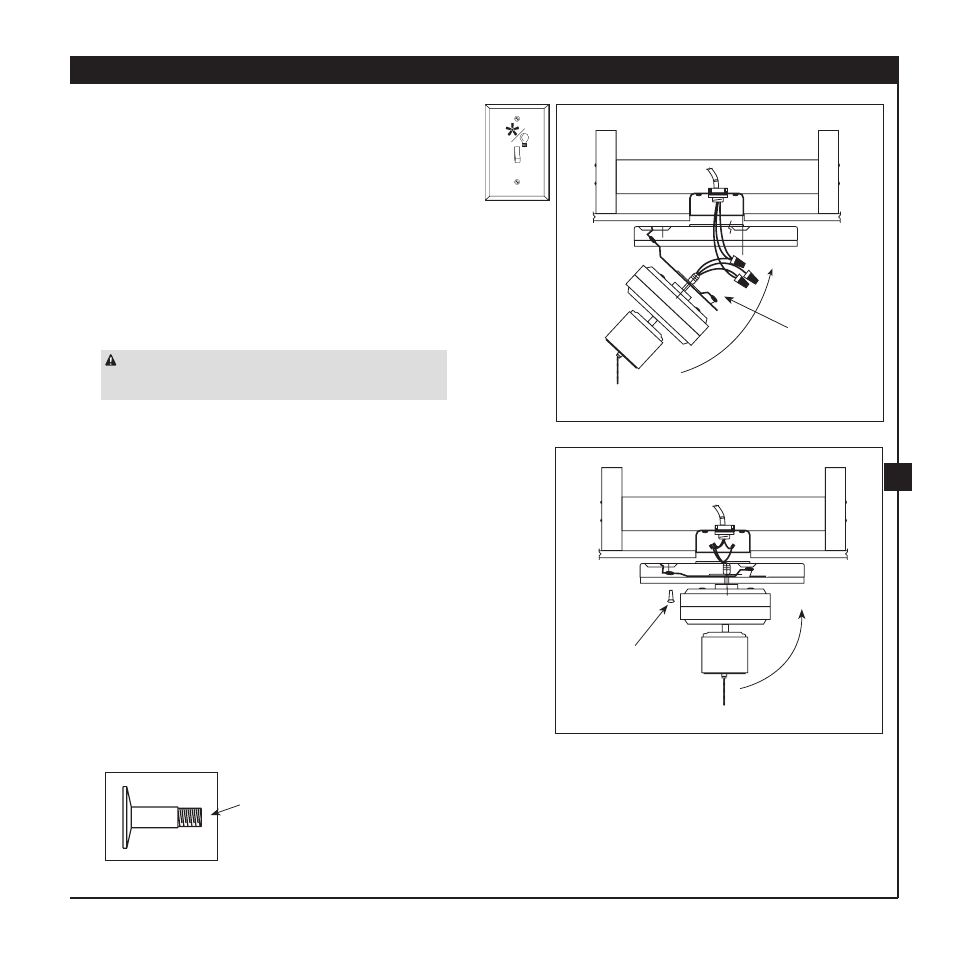

Step 5-4 - 5-5
Step 5-6 - 5-7
5 • Wiring the Fan
5-1. Be careful when wiring so that you do not hit the
motor and let it turn, or it could fall out of the
large hole.
5-2. Make sure the power is still off.
5-3. Connect electrical supply leads to the leads from
the motor, using approved connectors.
5-4. To connect the wires, hold the bare metal
leads together and place a wire nut over them,
then twist clockwise until tight. For all these
connections use the wire nuts provided.
CAUTION: Be sure no bare wire or wire strands
are visible after making connections.
5-5. Connect the black electrical supply lead to the
black motor lead, the white supply lead to the
white motor lead and the ground lead to the
green lead.
5-6. After making the wire connections, the wires
should be spread apart, with the white and green
wires on one side of the outlet box, and the black
wires on the other side of the box. The splices
should be turned upward and pushed carefully
into the outlet box.
5-7. Complete hanging of the motor by rotating it
upwards and mounting with 3 shoulder screws
supplied.
Shoulder Screw
Motor
Bracket
Shoulder Screw
