WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
8

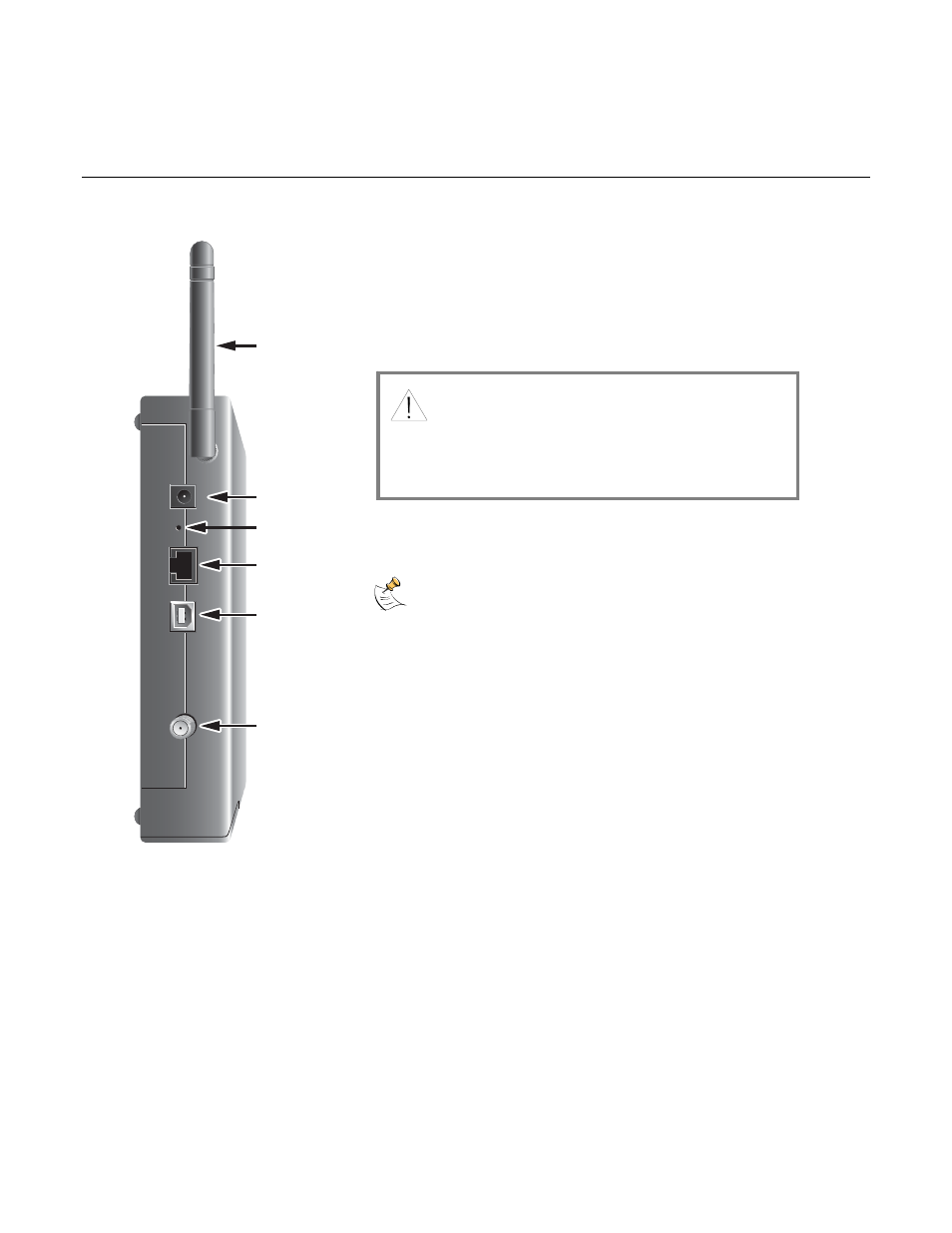

Back Panel Description
The following illustration describes the back panel components of the DPR2320 and the EPR2320.
T10947
2
1
4
5
6
POWER
ANTENNA
12 VDC
RESET
ETHERNET
CABLE
USB
3
1 ANTENNA— Provides a communication connection for the
built-in wireless access point (WAP) to allow wireless devices
to communicate with the cable modem
2 POWER—Connects the cable modem to the DC output of the
AC power adapter that is provided with your cable modem
3 RESET—Activating this switch resets the gateway to factory
default values and reboots the cable modem
This switch is for maintenance purposes only.
Do not use unless directed to do so by your service provider.
4 ETHERNET—RJ-45 Ethernet port connects to the Ethernet
port on your PC or your home network
5 USB—12 Mbps USB port connects to the USB port on your
PC
6 CABLE—F-Connector connects to an active cable signal
from your cable service provider
CAUTION:
Avoid damage to your equipment. Only use the AC
power adapter and power cord that is provided with
your cable modem.
