4 • setting the remote transmitter and receiver – Hunter 28822 52 Tobago User Manual

Page 9

42216-01 • 05/02/12 • Hunter Fan Company

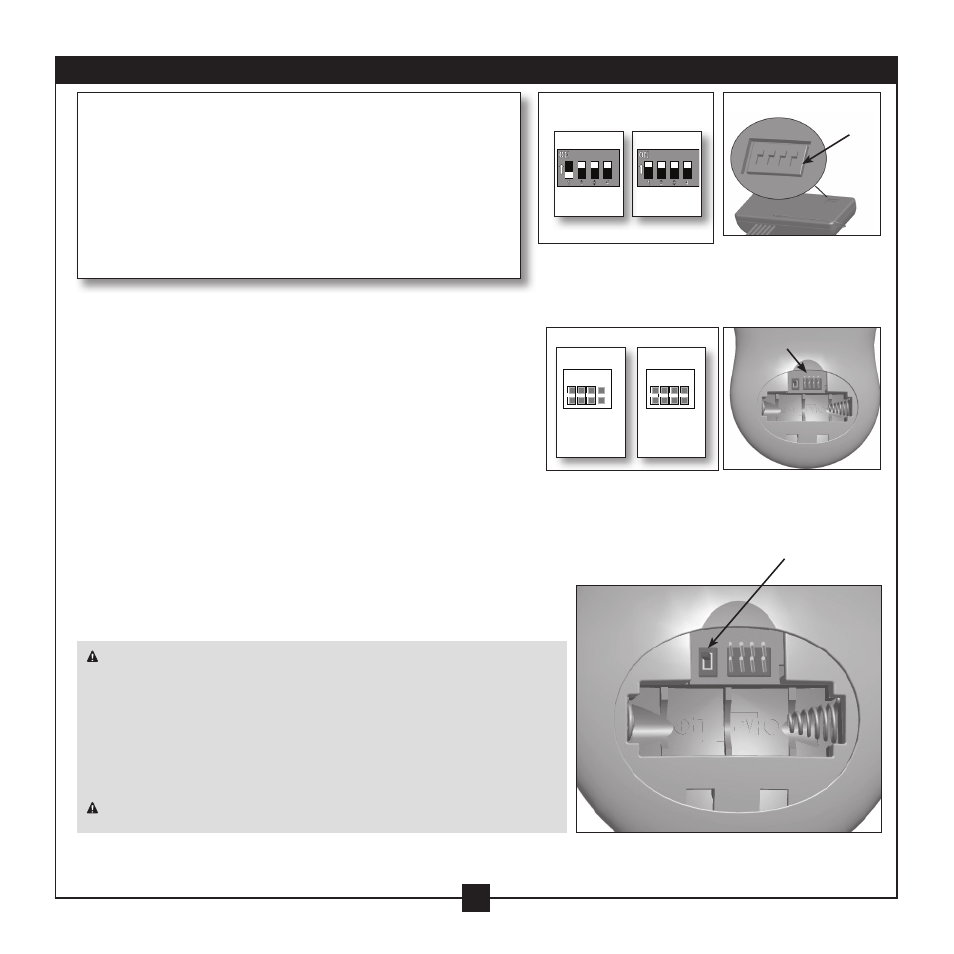

Receiver DIP

switches

Transmitter

Jumpers

CFL Toggle Switch

Receiver 1

Receiver 2

Example DIP Switch Settings

DIP Switches

Set to 1111

DIP Switches

Set to 0111

4 3 2 1

4 = on (fermé)
3 = on (fermé)
2 = on (fermé)
1 = off (ouvert)

4 = on (fermé)
3 = on (fermé)
2 = on (fermé)
1 = on (fermé)

Example Jumpers Settings

Transmitter 2

Transmitter 1

4-1. IMPORTANT! Before you change the Jumper settings, make

sure the battery is not connected to the transmitter.

Change the position of the jumpers in the transmitter and

the DIP switches in the receiver. Be sure the position of the
jumper in the transmitter matches the position of the DIP
switches in the receiver. If they don’t match, the controller
will not function. For instructions on how to set the
jumpers, read the box below.

4-2. There is a toggle switch beside the jumpers on the

transmitter. Move the toggle switch toward the side that
reads “CFL”.

4-3. Install the 12-volt battery into the transmitter.

CAUTION: The remote control device complies with part 15 of the FCC rules.

Changes or modifications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may

cause undesired operation.

Note: Use with a fan that incorporates an air gap switch (normal on-off wall switch).

WARNING: Maximum fan load is 1 Amp; maximum lamp is 300 Watts.

Setting DIP switches and Jumpers
When two or more fans are located near each other, you may desire
to have the receiver/transmitter for each fan set to a different code,
so that the operation of one fan does not affect the operation of
the other fans.
The DIP switches for the receiver are located on the flat surface
of the receiver. The Jumpers for the transmitter are in the
battery compartment.

4 • Setting the Remote Transmitter and Receiver
