Hunter 28822 52 Tobago - Manual (Page 14)

14
42216-01 • 05/02/12 • Hunter Fan Company

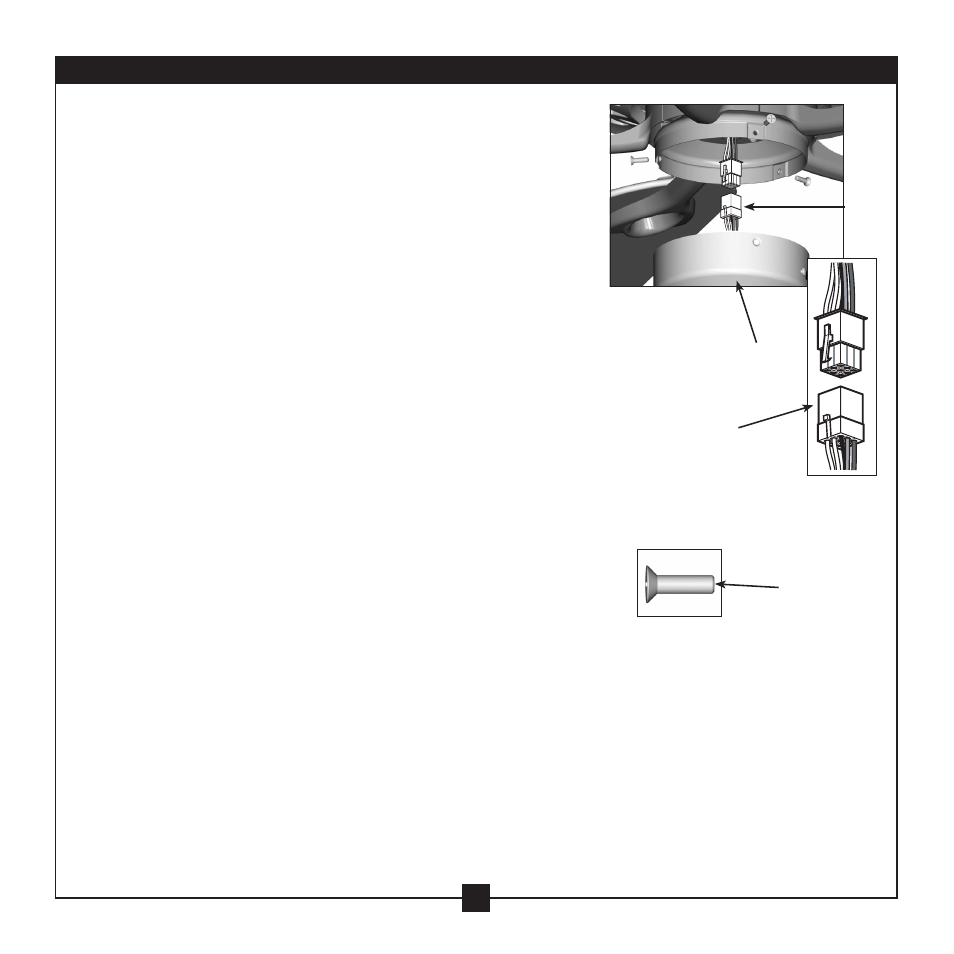

Lower Switch
Housing
Plug
Connector
Housing
Assembly Screw
Plug
Connector
Detail
Steps 8-6 – 8-7
8-6. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-7. Place the lower switch housing with attached light kit assembly
over the upper switch housing. Align the side screw holes in the
upper and lower switch housings. Attach the lower switch housing
to the upper switch housing with three housing assembly screws.
8 • Completing Your Installation With a Bowl Light Fixture (continued)
