4" color touch panels
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3 0 0 0 R E S E A R C H D R I V E , R I C H A R D S O N , T X 7 5 0 8 2 • 8 0 0 . 2 2 2 . 0 1 9 3 • 4 6 9 . 6 2 4 . 8 0 0 0 • + 1 . 4 6 9 . 6 2 4 . 7 4 0 0 • 4 6 9 . 6 2 4 . 7 1 5 3 f a x • w w w. a m x . c o m ©
20
06
AM
X.
Al
lr
ig
ht
s
re
se
rv
ed
.A
M
X
an
d
th
e
AM
X
lo
go
ar
e
al
lt
ra
de
m
ar
ks
of
AM
X.
AM
X
re
se
rv
es
th
e
rig
ht
to
al
te
rs
pe
cif
ica
tio
ns
wi
th
ou
tn
ot
ice
at
an
y
tim
e.

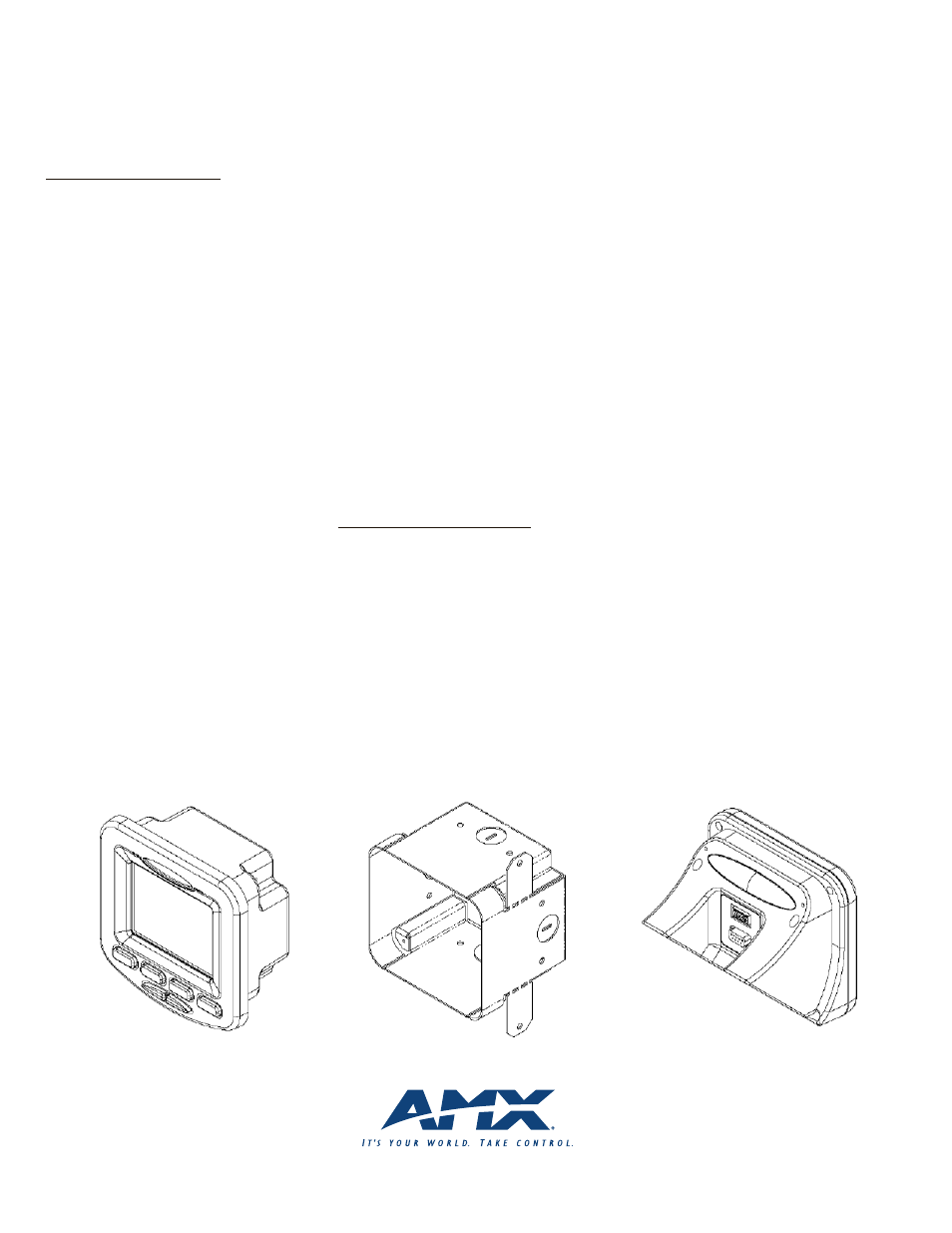

AXT-CP4 Tabletop Panel (Rear) AXD-CP4 Conduit/wallbox (front) AXD-CP4 Color Wall Panel (front)
AXD-CP4: 4" COLOR WALL PANEL
• Mounts in a wall, lectern, or any flat surface
• Illuminated, engravable control buttons
• Smart light sensor can adjust LCD brightness to
match environment and turn PDA button
illumination on and off
• Smart motion sensor “wakes-up” LCD backlight
and pushbutton illumination by sensing
proximity and motion
LCD
• 4" Color passive-matrix LCD with a resolution of
240 x 320 pixels
• Visible area: 3.8 inches (9.65 cm)
POWER
• 320 mA @ 12 VDC
MEMORY
• 512 KB of SRAM and 2 MB of flash for a total of
2.5 MB (2 MB available for buttons, icons,
bitmaps, and fonts)
DIMENSIONS (HWD)
• AXD Plastic housing: 4.03" x 4.45" x 2.00"
(10.24 cm x 11.30 cm x 5.08 cm)
• Wall Faceplate: 5.13" x 5.25" x 0.40"
(13.03 cm x 13.35 cm x 1.02 cm)
• CB-CP4 Conduit/wallbox: 4.18" x 4.60" x 3.40"
(10.62 cm x 11.68 cm x 8.64 cm)
ENCLOSURE
• Metal sub-plate and bezel with black or white
matte finish
• Detachable front panel faceplate
EXTERNAL BUTTONS
• 6 fixed-external backlit illuminated pushbuttons
(illumination is user enabled/disabled via the
pushbutton illumination feature)
BUTTON CHARACTERS
• Top row of buttons: 7 characters using a 10pt
Century Gothic font
• Bottom row of buttons: 7 characters using a 7pt
Century Gothic font
DETECTORS/SENSORS
• Light Detector: Photosensitive light detector for
adjustment of the panel brightness
• PIR Sensor: Proximity Infrared Detector to wake
the panel when movement is detected
REAR CONNECTORS
• AXlink: 4-pin bus connector for connection to
the AMX Central Controller
• RS-232: DB9 male connector for data
transmission or Microsoft® mouse control.
COMPATIBILITY
• Axcess, NetLinx, and Landmark systems (AXlink
is the most common control standard for this
system)
INSTALLATION KIT
• 4-pin AXlink data/power connector
• 4-#4-40 machine screws and threaded inserts
• Drywall clip set (2-drywall clamps and 2-#8 (2’
long) screws)
INSTALLATION CUTOUT
• Cutout template for the AXD-CP4 is available as
an insert in the product packaging and from
AMX as a drawing. This profile provides 1:1
cutout dimensions for the CP4 conduit/wallbox
OPTIONAL ACCESSORIES
• PSN2.8 Power supply (can be used on the CP4)
• PSN6.5 Power supply (recommended for use on
the CP4)
• Optional spacers and bezels for international
sales
• CB-CP4 Conduit/wallbox (includes flanges for
installation to studs during the construction
phase). The conduit/wallbox should only be
mounted to a beam before a drywall is installed
(pre-wall)
WEIGHT
• 4.50 lbs (2.04 kg)
AXT-CP4: 4" COLOR TABLETOP PANEL
• Compact tabletop enclosure
• Illuminated, engravable control buttons can be
dimmed
• Smart light sensor can adjust LCD brightness to
match environment and turn pushbutton
illumination on and off
• Smart motion sensor "wakes-up" LCD backlight
and pushbutton illumination by sensing
proximity and motion
LCD
• 4" Color passive-matrix LCD with a resolution of
240 x 320 pixels
• Visible area: 3.8 inches (9.65 cm)
POWER
• 320 mA @ 12 VDC
MEMORY
• 512 KB of SRAM and 2 MB of flash for a total of
2.5 MB (2 MB available for buttons, icons,
bitmaps, and fonts)
DIMENSIONS (HWD)
• AXT Tabletop unit: 4.04" x 5.25" x 4.84"
(10.26 cm x 13.34 cm x 12.30 cm)
• Wall Faceplate: 5.13" x 5.25" x 0.40"
(13.03 cm x 13.35 cm x 1.02 cm)
ENCLOSURE
• Metal sub-plate and bezel with black or white
matte finish
• Detachable front panel faceplate
EXTERNAL BUTTONS
• 6 fixed-external backlit illuminated pushbuttons
(illumination is user enabled/disabled via the
pushbutton illumination feature)
BUTTON CHARACTERS
• Top row of buttons: 7 characters using a 10pt
Century Gothic font
• Bottom row of buttons: 7 characters using a 7pt
Century Gothic font
DETECTORS/SENSORS
• Light Detector: Photosensitive light detector for
adjustment of the panel brightness
• PIR Sensor: Proximity Infrared Detector to wake
the panel when movement is detected
REAR CONNECTORS
• AXlink: 4-pin bus connector for connection to
the AMX Central Controller
• RS-232: DB9 male connector for data
transmission or Microsoft® mouse control.
COMPATIBILITY
• Axcess, NetLinx, and Landmark systems (AXlink
is the most common control standard for this
system)
OPTIONAL ACCESSORIES
• PSN2.8 Power supply (can be used on the CP4)
• PSN6.5 Power supply (recommended for use on
the CP4)
• Optional spacers and bezels for international
sales
• CB-CP4 Conduit/wallbox (includes flanges for
installation to studs during the construction
phase). The conduit/wallbox should only be
mounted to a beam before a drywall is installed
(pre-wall)
WEIGHT
• 4.53 lbs (2.05 kg)
