3 • Assembling and Hanging the Fan
Installing the Top Housing:
3-1. Place the top housing onto the motor housing so that
the holes in the top housing lineup with the holes in the
motor housing.
3-2. Rest the trim ring on the top housing.
3-4. Place the canopy on the top housing so that all four
screw holes lineup with those of the top housing and
the adapter on top of the motor housing. Install the top
housing screws making sure that the grounding screw is
installed in the appropriate screw hole.
Hanging the Fan:
Note: To hang the fan, you must tilt the canopy to an
almost vertical position so that the canopy slots sit on the
ceiling plate hooks.
3-6. Raise the fan and align the slots in the canopy with the
hooks on the ceiling plate.
3-7. Place the slots over the hooks to hang the fan.
Motor
Housing
Ceiling Plate
Hook
Grounding
Screw
Top Housing
Trim Ring
Trim Ring
Canopy

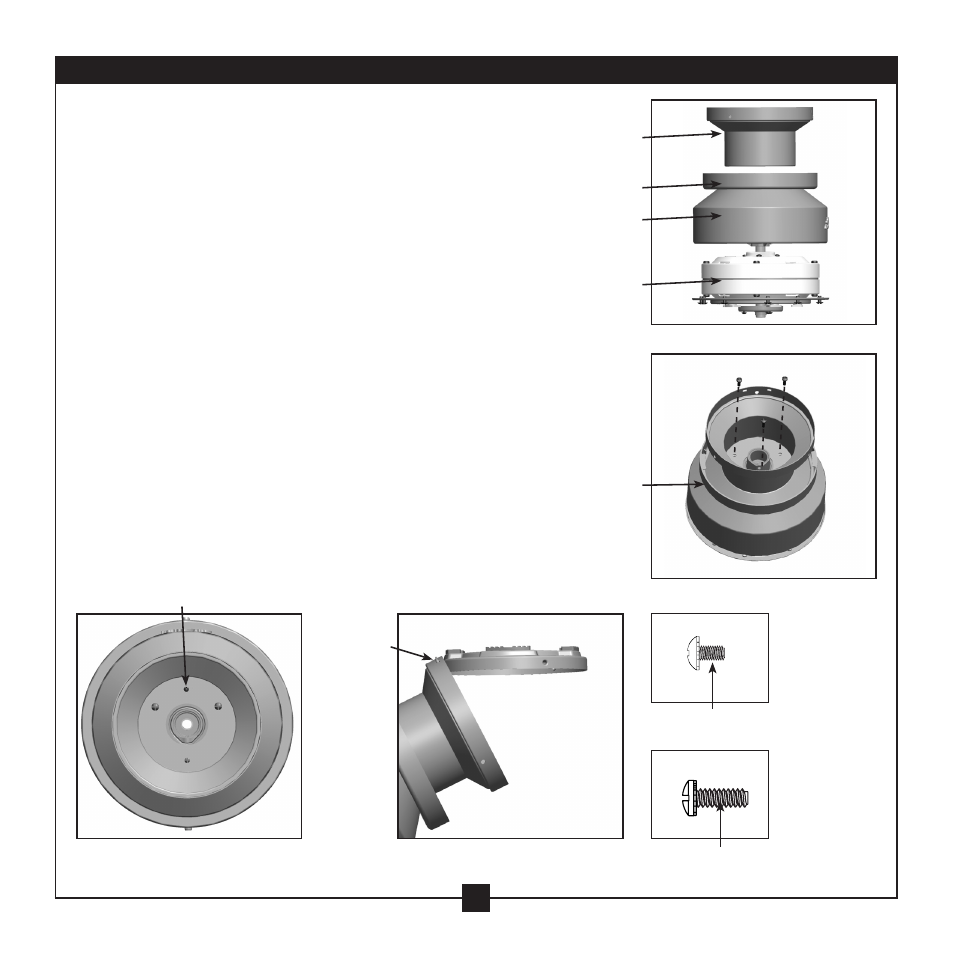

Steps 3-1 – 3-2
Steps 3-6 – 3-7 Step 3-4
Step 3-4
Grounding Screw
Top Housing Screw
