J&M AM-2ES Auger-Mate - Manual (Page 7)

7

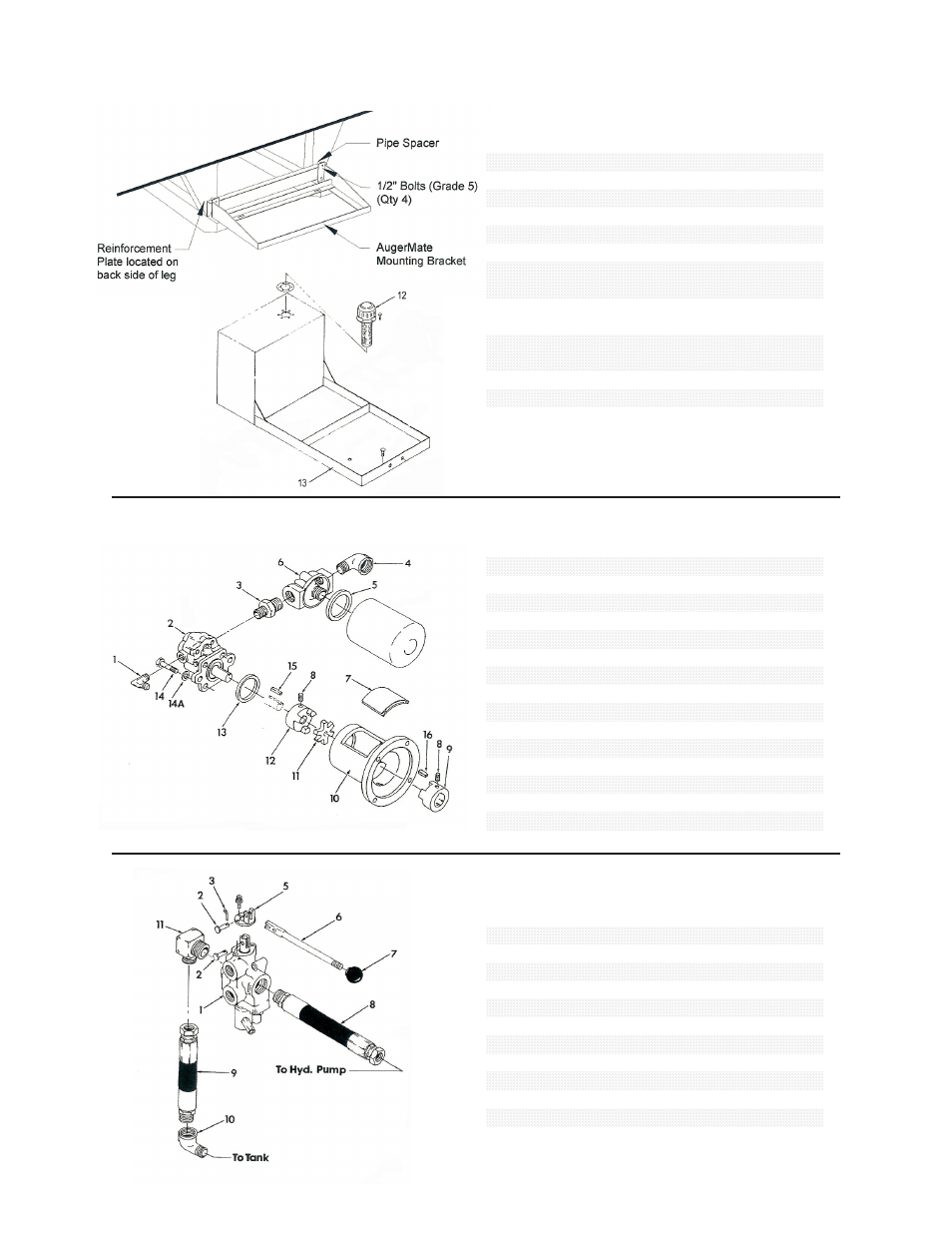

# Part # Description
1 AMF-1 Mounting Frame
2 AFRP-1 Reinforcing Plate
3 12EL 1/2" Elbow
4 HH-34 1/2" x 3/4" Hyd. Hose w/ swivel
5 12112HB 1/2" x 1 1/2" Bolt - Grade 5
6 12LN 1/2" Lock Nut
7 FW-12 1/2" Flat Washer
8 BB-2 Battery Box with strap (for
electric start augermates only)
9 123HB 1/2" x 3" Bolt (for mounting on
250-7S gravity box only)
10 PS-1 Pipe Spacer (for mounting on 250-
7S gravity box only)
11 1552HF Hydraulic Filter (NAPA 1552)
12 1078 Filler, Breather & Strainer Assy
13 1074 Tank & Frame Assy
AUGER-MATE MOUNTING FRAME PARTS LIST
HYDRAULIC PUMP AND MOUNT PARTS LIST
HYDRAULIC CONTROL AND HOSES
# Part # Description
1 1085 Control, Directional
2 1086 Pin, Headed
3 1087 Pin, Cotter
4 SC-AM Screw, Cap
5 1088 Bracket, Clevis
6 1089 Handle
7 1090 Knob, Ball
8 1091 Hose (Hi Pressure)
9 1092 Hose (Return)
10 1098 Elbow, 90 Degree
11 1093 Elbow, 90 Degree
12 1094 Elbow, 90 Degree (at filter)
# Part # Description
1 1094 Elbow, 90 Degree (Hi Pressure)
2 1096 Nipple, Transition
3 1097 Nipple, Transition
4 1098 Elbow, 90 Degree
5 1099-G Gasket, Filter (part of #6)
6 1099 Filter, Replacement Element
7 1100 Cover, Access
8 1104-SS Screw, Set
9 1101 Coupling, Half 1"
10 1102 Bracket, Pump Mtg.
11 1103 Spider
12 1104 Coupling, Half 9/16"
13 1105 Ring, Adapter
14 1080 Screw, Hex Head
14A 1080-LW Lockwasher, Shakeproof
15 18-K Key, 1/8" (with pump)
16 1106 Key, 1/4" (engine key)
